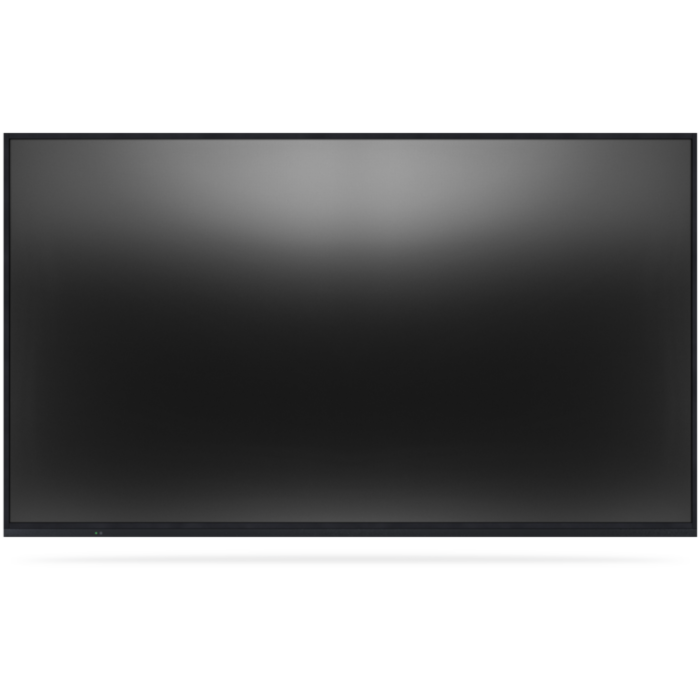

Tru-Vu VM-55L 55" Industrial 4K 24VDC LCD Monitor
The VM-55L Tru-Vu industrial LCD monitor is purpose-built for mission-critical applications requiring high-resolution imaging, rugged construction, and long-term reliability. With its 4K UHD resolution (3840 × 2160) and AMVA3 panel technology, this 55-inch display produces sharp detail, accurate color reproduction, and wide viewing angles.
Designed for 24/7/365 continuous operation, the VM-55L is ideal for industrial automation, control rooms, inspection systems, and simulation environments. Its 500-nit high brightness ensures excellent visibility even in high ambient lighting conditions, while the lockable OSD controls prevent unauthorized adjustments in secure installations.
The monitor supports both HDMI and BNC inputs, enabling flexible integration with modern and legacy video systems. Its 24VDC power input, along with optional AC adapter support, makes it suitable for embedded and mobile installations.
Built with a rugged steel enclosure, wide operating tolerances, and industrial-grade components, the VM55L delivers dependable performance in harsh environments where consumer displays fail.
Key Features:
- SKU-Focused Model: Tru-Vu VM-55L industrial display
- 55" 4K UHD Resolution: 3840 × 2160 ultra-high-definition clarity
- High Brightness: 500 nits for visibility in bright environments
- 24VDC Power Input: Ideal for industrial and mobile systems
- Dual Video Inputs: HDMI and BNC for flexible connectivity
- 24/7/365 Operation: Designed for continuous use
- Auto Restart Function: Recovers automatically after power loss
- Lockable OSD Controls: Prevents unauthorized setting changes
- 12VDC Output: Power external devices if needed
- Wide Viewing Angles: 178° horizontal and vertical
- Rugged Steel Enclosure: Built for harsh environments
- VESA Mount Compatible: 200×200 & 200×300 mm
- TAA Compliant: Suitable for government and defense projects
- 3-Year Warranty: Industrial-grade reliability assurance
- Customizable Options Available
Applications:
- Machine Vision & Inspection Systems
- Industrial Automation & Control Panels
- Security & Surveillance Monitoring
- Military & Defense Displays
- Transportation & Fleet Systems
- Simulation & Training Environments
- Food & Beverage Processing
- Museums & Digital Signage
- Oil & Gas / Energy Monitoring Systems
| Model | Tru-Vu VM-55L |
| Display Size | 55" |
| Panel Type | AMVA3 Color LCD, WLED Backlight |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 500 nits |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | 8.5 ms (gray-to-gray) |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Video Inputs | HDMI, BNC |
| Power Input | 24 VDC (Optional 100–240 VAC Adapter) |
| Power Consumption | 125W Max |
| OSD Control | Rear Pushbutton (Lockable) |
| Mounting | VESA 200×200, 200×300 mm |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% – 90% RH |
| Shock | 50G (11 ms) |
| Vibration | 1.5G RMS (10–300Hz) |
| Dimensions | 48.75" x 28.3" x 2.4" |
| Weight | 49.8 lbs |
| Enclosure | Black Painted Steel |
| Warranty | 3 Years |
| Compliance | TAA Compliant |
