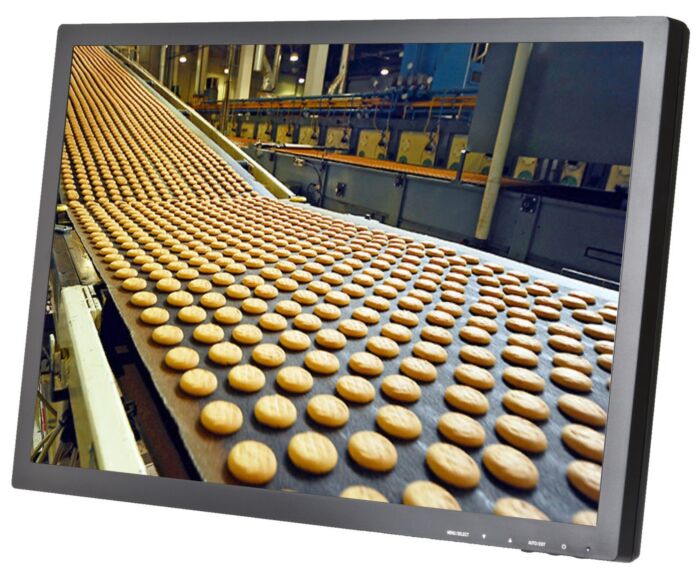

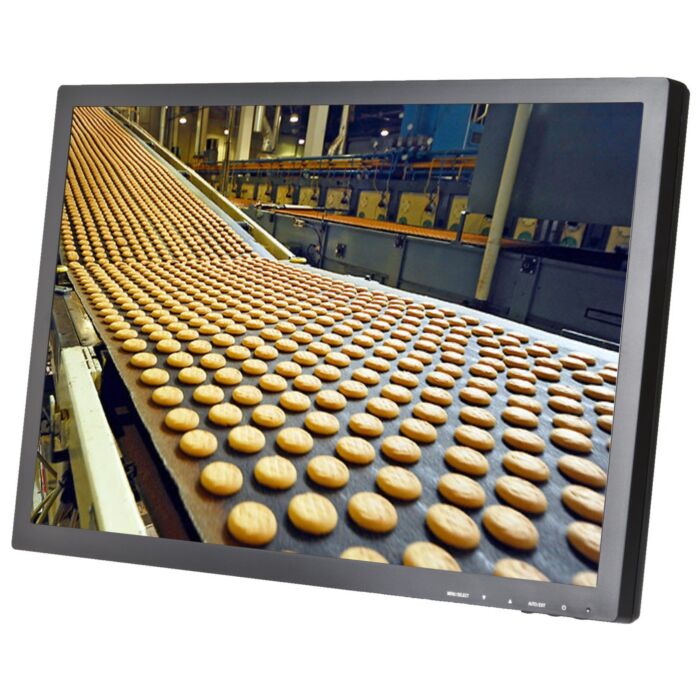

Tru-Vu VM-27U-NBS 27" Full HD Industrial Panel Monitor with Dual Voltage and TRU-Tuff Treatment
The Tru-Vu VM-27U-NBS is a 27-inch industrial-grade LCD monitor engineered for reliable 24/7 performance in demanding environments. Featuring Full HD 1920×1080 resolution, a wide 178° x 178° viewing angle, and TRU-Tuff treatment for shock and vibration resistance, it delivers crisp, dependable visuals in industrial, security, and manufacturing applications. With VGA, HDMI, and Composite (BNC) inputs, the VM-27U-NBS offers flexible connectivity across analog and digital systems.
Designed for rigorous use, the Tru-Vu VM-27U-NBS operates continuously all year round. It includes auto-restart after power loss, dual voltage capability, and a durable ABS enclosure with multiple VESA mounting patterns. Backed by a 3-year warranty and TAA compliance, this Full HD display provides a long-term visual solution for mission-critical operations.
Features:
- 27” Full HD 1920 x 1080 resolution
- LED backlights and 16.7M color depth
- Wide 178° horizontal/vertical viewing angle
- TRU-Tuff treatment resists shock and vibration
- Dual power input: 24 VDC & 100–240 VAC
- HDMI, VGA, and Composite BNC inputs
- Auto-restart after power loss
- 3-year warranty
- TAA compliant
Applications:
- Industrial Control
- Machine Vision
- Food & Beverage
- Security Systems
- Military Use
- Simulation Training
- Museum Display
| Model | VM-27U-NBS |
| LCD Panel | 27” Color LCD; LED Backlights |
| Resolution | 1920 x 1080 (1080p/60, Full HD) |
| Viewable Area | 23.53” x 13.23” (597.6 x 336.15 mm) |
| Pixel Pitch | 0.311 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 300 nits |
| Contrast Ratio | 3,000:1 |
| Viewing Angle | 178° x 178° (V/H) |
| Response Time | 12 ms |
| Controls | OSD via Front Pushbuttons or IR Remote |
| Video Inputs | VGA, HDMI, Composite BNC Inputs; 1 Composite BNC Output |
| Audio | Rear Speaker |
| Power Input | 24 VDC and 100–240 VAC (2.1 mm pigtail included) |
| Power Consumption | 36W (2.7A @ 24VDC; 1.4A @ 110VAC) |
| Enclosure | ABS |
| Mounting | 100 x 100 / 100 x 200 VESA Pattern |
| Tabletop Base | Optional |
| Operating Temp | 32° to +122°F (0° to +50°C) |
| Storage Temp | -4° to +140°F (-20° to +60°C) |
| Humidity | 5–90% RH |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5G RMS 10–200 Hz |
| Dimensions | 25.38” x 15.25” x 2.63” (644.65 x 387.35 x 66.8 mm) |
| Weight | 10.8 lbs (4.89 kg) |
| Warranty | 3 Years |
| Compliance | TAA |
