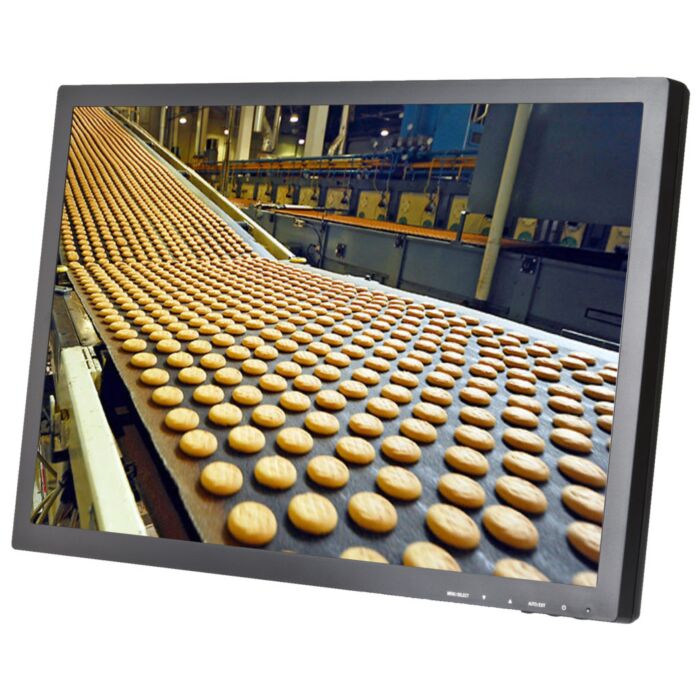

Tru-Vu VM-27U-NB 27" Industrial-Grade Monitor
Discover Unmatched Quality with the VM-27 Series
The Tru-Vu VM-27U-NB is a 27-inch industrial-grade monitor designed for demanding applications. With a full HD resolution of 1920 x 1080, a 16:9 aspect ratio, and a wide viewing angle of 178˚ x 178˚, this display ensures brilliant color and superb image quality. The monitor features VGA, HDMI, and Composite (BNC) video inputs, providing versatility for various connections. Its dual-voltage capability (24VDC and 100-220VAC) and auto-restart after power loss make it suitable for 24/7 operation.
Customization is key, and the VM-27 Series offers an array of OEM options, allowing you to tailor the monitor to your specific requirements. Ideal for industrial, military, food & beverage, machine vision systems, museums, surveillance, and simulator applications, this series operates seamlessly around the clock and is backed by a reliable 3-year warranty.
Features:
- 27” Full HD Resolution Color LCD Monitor: 1920 x 1080 (1080p/60)
- Wide Viewing Angle: 178˚ x 178˚
- Video Inputs: VGA, HDMI, and Composite (BNC)
- Dual Voltage: 24VDC and 100-220VAC
- Auto Re-Start After Power Loss
- Can Be Customized to Meet Your Needs
- 3-Year Warranty
Applications:
- Industrial automation
- Military operations
- Food & beverage processing
- Machine vision systems
- Museums and exhibits
- Surveillance monitoring
- Simulators
|
VM-27U-NB
|
|
| LCD Panel | 23.53” (W) x 13.23” (H) (597.6 x 336.15 mm) |
| Pixel Pitch | 0.311 mm |
| Display Colors | 16.7 M |
| Aspect Ratio | 16:9 |
| Brightness |
300 nits
|
| Contrast Ratio |
3,000:1
|
| Viewing Angle |
178° (H) x 178° (V)
|
| Response Time | 12 msec |
| Control | OSD (On-Screen DIsplay) via Front Pushbuttons or IR Remote |
| Video Inputs | VGA, HDMI, Composite BNC Inputs; 1 Composite BNC Output |
| Audio | - |
| Power Requirement | Dual Voltage 24 VDC and 100-240 VAC (2.1 mm Pigtail included) |
| Power Consumption | 36W (1.5 Amps 24VDC; 0.327 Amps 110VAC) |
| Enclosure | ABS |
| VESA Mount Holes | 100 x 100 and 100 x 200 VESA Hole Pattern |
| Tabletop Base | Optional |
| Remote Control | Optional |
| Operating Temperature | 32° to +122° F (0° to +50° C) |
| Storage Temperature | -4° to +140° F (-20° to +60° C) |
| Humidity | 5-90% RH |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5G RMS 10-200 HZ |
| Dimensions | 25.38” (W) x 15.25” (H) x 2.63” (D) (644.65 x 387.35 x 66.8 mm) |
| Approvals | TüV, FCC, RoHS, CE |
| Weight | 10.8 lbs. (4.89 Kg) |
