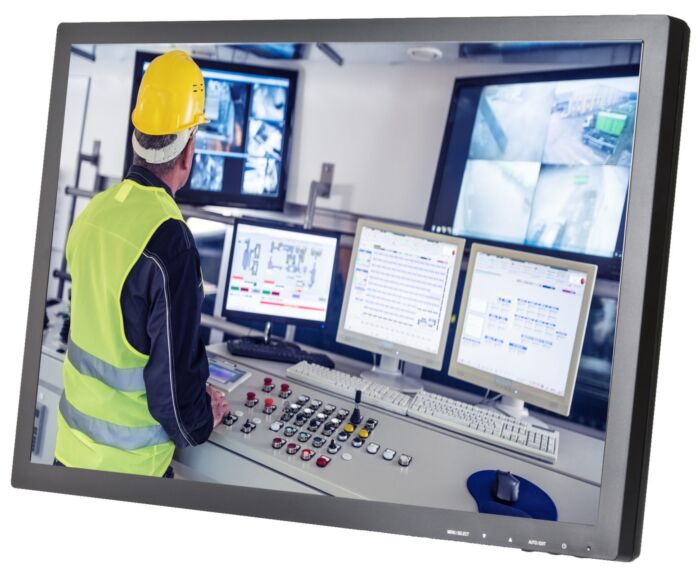

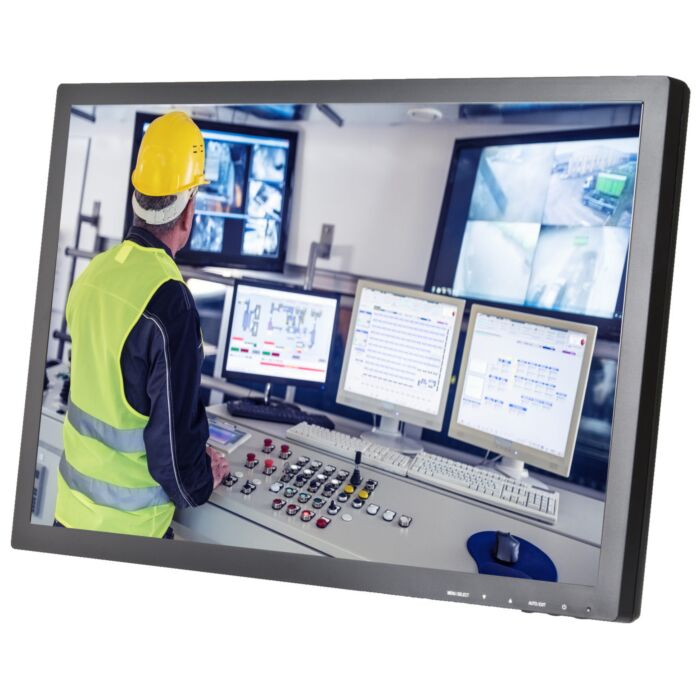

Tru-Vu VM-24R 24” Customizable HD LCD Monitor
The Tru-Vu VM-24R delivers high-definition performance and industrial-grade reliability in a 24” full HD LCD monitor. With a 1920 x 1080 resolution, wide 178° viewing angles, and dual internal speakers, it ensures vivid visuals and clear audio for demanding environments. The VM-24R incorporates Tru-Vu’s exclusive TRU-Tuff treatment for maximum resistance to shock and vibration, making it an optimal choice for harsh and mission-critical applications.
Engineered for 24/7/365 operation, this monitor is designed to withstand rigorous use in industries such as manufacturing, military, food processing, and security. An ABS enclosure, versatile VESA mounting options, and OEM customization empower integration into specialized workflows, while coverage by a 3-year warranty offers long-term peace of mind.
Features:
- 24” AMVA HD LCD panel
- Full HD 1920 x 1080 resolution
- Wide 178º x 178º viewing angle
- TRU-Tuff treatment for shock/vibration
- Dual internal speakers
- Rugged ABS enclosure (optional stainless steel)
- 24/7/365 operation with 3-year warranty
- Multiple video inputs: VGA, HDMI, DisplayPort
- TAA compliant
- OEM customization options
- VESA mounting compatible
Applications:
- Industrial Automation
- Military Operations
- Food Processing
- Machine Vision
- Museum Display
- Security Surveillance
- Training Simulators
| Model | VM-24R |
| LCD Panel | 24” Color AMVA |
| Resolution | 1920 x 1080 (60Hz, Full HD) |
| Display Area | 20.91” x 11.76” (531.36 x 298.7 mm) |
| Pixel Pitch | 0.277 mm |
| Colors | 16.7M |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Contrast Ratio | 3,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 12 ms Trf |
| Video Inputs | VGA, HDMI, DisplayPort |
| Audio | Dual Rear Speakers |
| Power Requirement | 24 VDC (2.5mm Locking) / 90-240VDC via Power Supply |
| Power Consumption | 27W |
| Enclosure | ABS (Optional: Waterproof Stainless Steel) |
| Mounting | 100x100/100x200 VESA (M4 x 6mm Screws) |
| Operating Temp. | 32° to 122°F (0° to 50° C) |
| Humidity | 5-90% RH |
| Shock | 50G (20 ms, 1/2 sine) |
| Vibration | 1.5G RMS 10-200 Hz |
| Dimensions | 22.66” x 13.5” x 2.7” / 575.8 x 344 x 69 mm |
| Weight | 9.46 lbs (4.29 kg) |
| Warranty | 3 Years |
