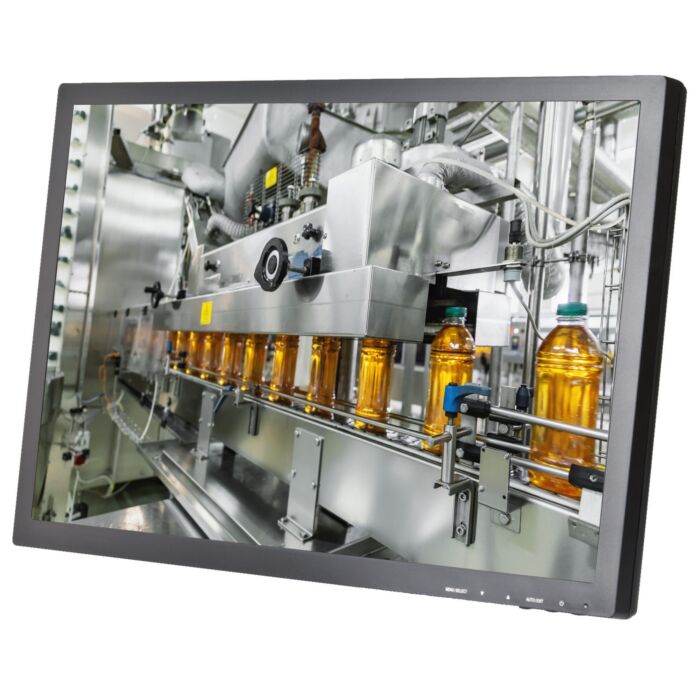

Tru-Vu VM-21.5U-NBS24 21.5" Industrial-Grade Monitor
Experience reliable, industrial-grade performance with the VM-21.5U-NBS24 from TRU-Vu. This robust 21.5-inch monitor delivers brilliant color and high-definition clarity with a Full HD resolution of 1920 x 1080, featuring a wide 178° viewing angle. Engineered for the toughest environments, it incorporates TRU-Tuff treatment for superior resistance to shock and vibration, all contained in a rugged ABS enclosure.
Designed for 24/7/365 operation, the VM-21.5U-NBS24 is ideal for demanding industrial, military, and machine vision settings. Advanced features include auto re-start after power loss, lockable on-screen controls, customization options, and a 3-year warranty. TAA compliance ensures broad industry and government usability.
Features:
- Full HD 1920 x 1080 resolution
- TRU-Tuff shock and vibration resistance
- VGA, HDMI, BNC loop-thru inputs
- Auto re-start after power loss
- Lockable OSD controls
- 24VDC power, optional AC adapter
- Rugged ABS enclosure
- 3-year warranty
- TAA compliant
- Customizable options
Applications:
- Industrial Control
- Military Display
- Food Processing
- Vision Systems
- Museum Exhibit
- Security Monitor
- Medical Imaging
| Model | VM-21.5U-NBS24 |
| LCD Panel | 21.5" Color LCD (MVA); LED Backlights |
| Resolution | 1920 x 1080 (Full HD, 60hz) |
| Viewable Area | 18.76" x 10.55" (476.6 x 268.1 mm) |
| Pixel Pitch | 0.248mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Contrast Ratio | 3,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 22 ms Trf |
| Control | OSD via Pushbuttons |
| Video Inputs | VGA, HDMI, Composite BNC Loop-Thru |
| Audio | Rear Speakers |
| Power Requirements | 24VDC (90-240 VAC optional AC adapter) |
| Power Consumption | 25W |
| Enclosure | ABS |
| Mounting | 100x100mm Rear VESA, M4 x 12mm Screws, Base optional |
| Operating Temp/Humidity | 32° to 122°F (0° to +50°C); 5-90% Non-Condensing |
| Storage Temp | -4° to +140°F (-20° to +60°C) |
| Shock | 50G, 20ms, X/Y/Z |
| Vibration | 1.5 G RMS; 10-200Hz, 30 min/axis |
| Dimensions | 20.68" W x 12.60" H x 2.18" D (525.3 x 320 x 55.4 mm) |
| Weight | 7.4 lbs (3.4 Kg) |
| Warranty | 3 Years |
