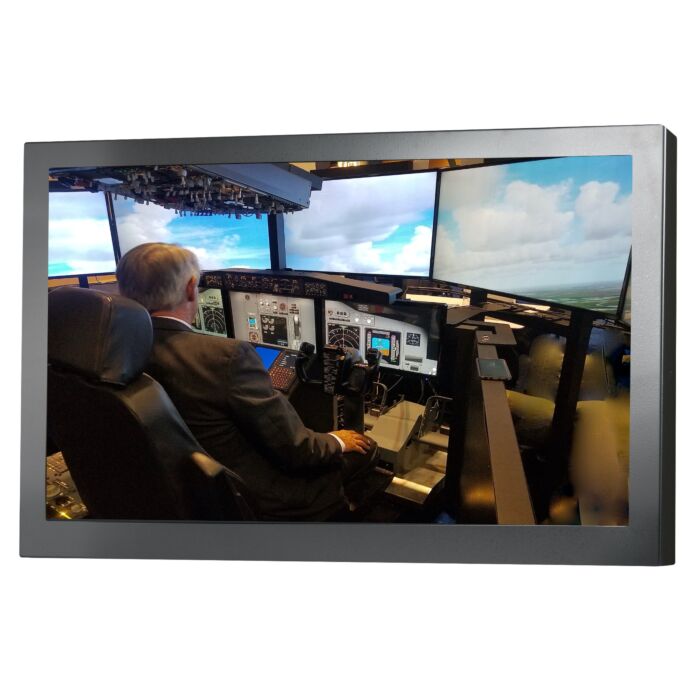

Tru-Vu VM-10.1U (VM10.1U) 10.1” Industrial-Grade LCD Monitor
SKU
VM-10.1U-2
$530.00
Quick Overview
The VM-10.1U is a rugged, industrial-grade 10.1” LCD monitor. It can accept video inputs up to 1920 x 1080 full HD resolution. It will display up to its full 1280 x 800 native resolution. HDMI and VGA inputs enable integration with a wide range of systems and devices.
The VM-10.1U also features TRU-Vu’s exclusive TRU-Tuf treatment, which ensures maximum resistance to shock and vibration. The TRU-Tuf process includes: RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged powder-coated steel enclosure, ensures the VM-10.1U will provide years of reliable service.
The VM-10.1U is designed for 24/7/365 operation in a wide range of demanding industrial, military, medical, A/V and commercial applications, and is backed by a full 3 Year Warranty.
Features:
- 10.1” Widescreen 16:9 LCD Monitor
- Display Resolution: 1280 x 800
- Input Resolution: Up to 1920 x 1080
- Brightness: 350 Nits
- TRU-Tuf Ensures Maximum Shock/Vibration Resistance
- Video Inputs: VGA, HDMI & DisplayPort
- Rugged Steel Enclosure
- Can Be Customized To Meet Your Needs
- Auto Re-Start After Power Loss
- 3 Year Warranty
Applications:
- Industrial
- Military
- Medical
- A/V
- Commercial Applications
| Model | VM-10.1U |
| LCD Panel | 10.1” IPS Panel Color LCD; LED Backlights |
| Resolution | 1280 x 800 |
| Display Area | 8.54” (W) x 5.34” (H) (216.96 x 135.60 mm) |
| Pixel Pitch | 0.00222” (W) x 0.00667” (H) (0.0565 x 0.1695 mm) |
| Display Colors | 16.9m |
| Aspect Ratio | 16:10 |
| Brightness | 350 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170° (H) x 170° (V) |
| Response Time | 25 msec Trf |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirement | 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Adapter |
| Power Consumption | 12W |
| Enclosure | Powder-Coated Steel |
| Mounting | 75 X 75 mm Rear VESA Mount Holes |
| Operating Temperature | +32° to 122° F (0° to 50° C) |
| Shock | 100G, 6ms, Half-sine wave |
| Vibration | 10-55 Hz, l.5mm Stroke 2 hrs/axis (X,Y,Z) |
| Dimensions | 8.7” (W) x 6.3” (H) x 1.6” (D) / 220.97 (W) x 160.01 (H) x 40.64 (D) mm |
| Weight | 2.8 lbs. / 1.3 kg |
| Warranty | 3 Years |
