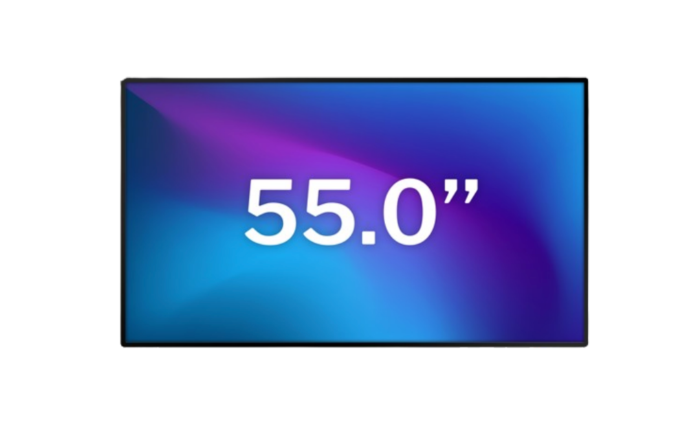

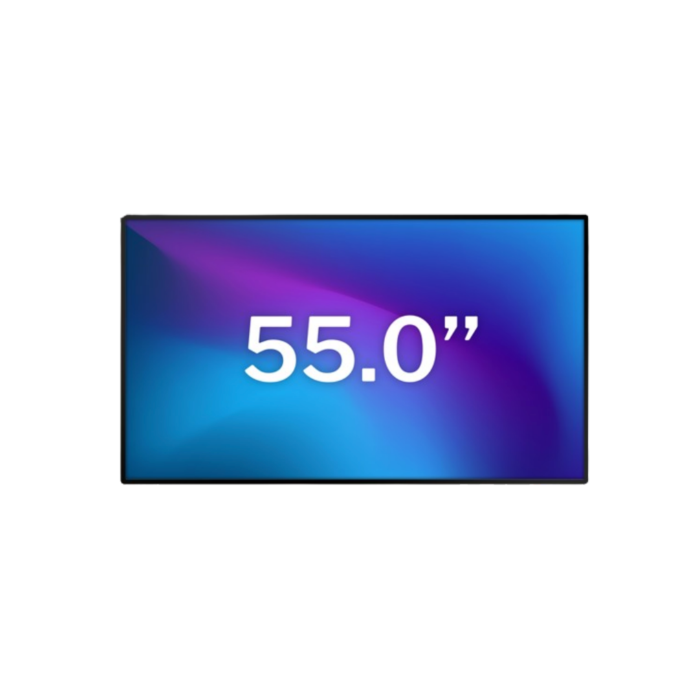

Tru-Vu VL-ZBXTP-55T 55" Industrial 4K Touchscreen Monitor | PCAP Multi-Touch, 800 Nits, Zero Bezel
The Tru-Vu VL-ZBXTP-55T is a 55-inch industrial-grade 4K touchscreen monitor engineered for high-performance human-machine interface (HMI), kiosk, and commercial display applications. Featuring projected capacitive (PCAP) multi-touch technology, this display supports up to 10 simultaneous touch points for responsive, intuitive user interaction.
With a brilliant 3840 x 2160 (4K) resolution and 800 nits brightness, the VL-ZBXTP-55T delivers sharp, high-contrast visuals even in bright ambient environments. Its zero-bezel, edge-to-edge glass design provides a sleek, modern aesthetic while improving hygiene by eliminating crevices where contaminants can accumulate.
Built with rugged steel construction and industrial-grade components, the VLZBXTP55T ensures long-term durability and reliability in demanding environments. Designed for continuous operation, it supports a wide range of applications including healthcare displays, interactive kiosks, digital signage, and industrial automation systems.
Key Features:
- 55” Industrial 4K Display
- 3840 x 2160 Resolution
- Projected Capacitive Touch
- 10-Point Multi-Touch
- 800 Nits High Brightness
- Zero-Bezel Glass Design
- Rugged Steel Housing
- HDMI Video Input
- USB Touch Interface
- VESA 400 x 300 Mount
- Wide Viewing Angle 178°
- Industrial Temperature Rated
Applications:
- Industrial HMI
- Interactive Kiosks
- Medical Displays
- Digital Signage
- Control Rooms
- Factory Automation
- Retail Displays
- Hospitality Systems
- Transportation Hubs
- Public Interfaces
| Model | VL-ZBXTP-55T |
| Display Size | 55” LCD |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 10-Point Multi-Touch |
| Resolution | 3840 x 2160 (4K) |
| Brightness | 800 nits |
| Contrast Ratio | 1,200:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 8 ms |
| Aspect Ratio | 16:9 |
| Display Colors | 16.7 Million |
| Pixel Pitch | 0.315 x 0.315 mm |
| Viewing Area | 47.6" x 26.8" |
| Video Input | HDMI |
| Touch Interface | USB (Mini-USB) |
| Power Requirement | 24VDC / 100-240VAC Adapter |
| Power Consumption | 144W |
| Enclosure | Zero-Bezel Painted Steel |
| Mounting | VESA 400 x 300 mm |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Dimensions | 49.4" x 28.8" x 2.5" |
| Weight | 97 lbs (44 kg) |
| Warranty | 1 Year |
