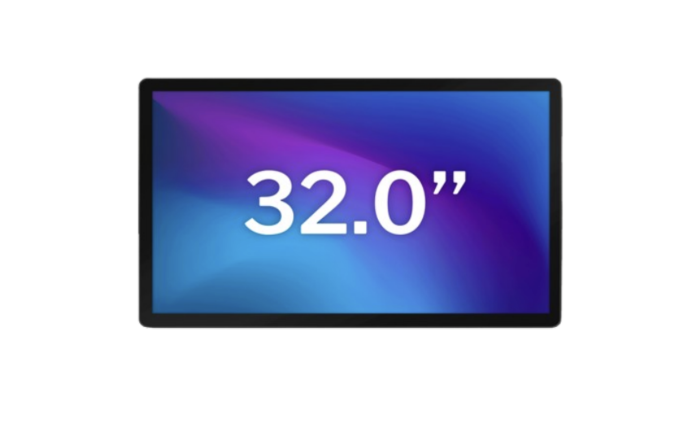

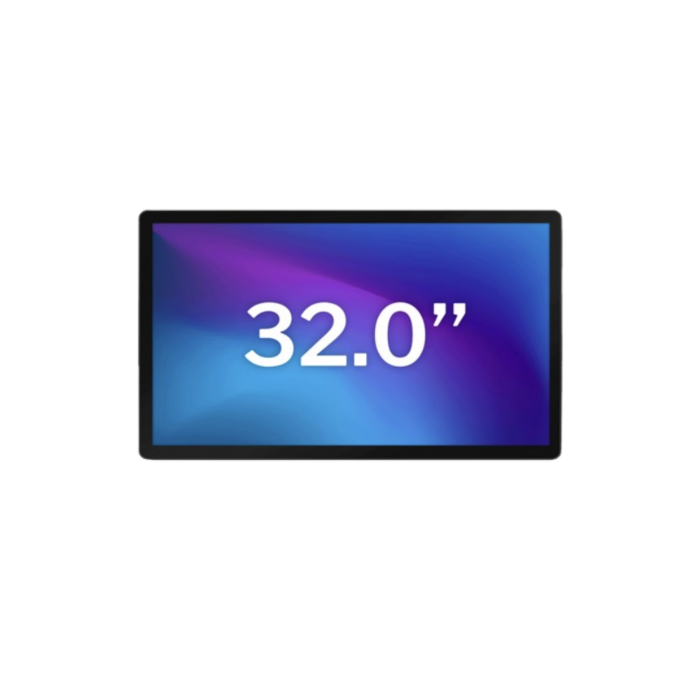

Tru-Vu VL-ZBXTP-32T 32" Industrial Touchscreen Monitor – PCAP, Zero Bezel, 1080p
The Tru-Vu VL-ZBXTP-32T is a 32-inch industrial-grade touchscreen monitor engineered for reliable, continuous operation in demanding environments. Designed with a zero-bezel, edge-to-edge glass front and rugged steel construction, the VL-ZBXTP-32T delivers durability, cleanability, and modern multi-touch performance for industrial and commercial applications.
Featuring Projected Capacitive (PCAP) touch technology, this 32" industrial touchscreen supports 10-point simultaneous multi-touch, enabling intuitive gestures such as zoom, swipe, and multi-user interaction. The responsive touch interface works with bare hands as well as gloved operation, making it ideal for industrial, medical, and cleanroom environments.
The VL-ZBXTP-32T provides crisp 1920 x 1080 Full HD resolution, wide 178° viewing angles, and consistent image clarity. Built with true industrial-grade components, including a rugged steel enclosure and reliable LED backlighting, this display is designed for long-term deployment in 24/7 applications.
With HDMI input, USB touch interface, and VESA 200 x 200 mounting compatibility, the Tru-Vu VLZBXTP32T integrates easily into kiosks, control systems, automation platforms, and interactive displays.
Key Features:
- 32" Industrial Touchscreen
- Projected Capacitive (PCAP)
- 10-Point Multi-Touch
- 1920 x 1080 Full HD
- Zero-Bezel Glass Front
- 178° Wide Viewing Angle
- 350 Nits Brightness
- Rugged Steel Housing
- HDMI Video Input
- USB Touch Interface
- VESA 200 x 200 Mount
- 24VDC / AC Adapter Power
Applications:
- Industrial HMI
- Touch Kiosks
- Factory Automation
- Control Panels
- Medical Displays
- Cleanrooms
- Retail Displays
- Interactive Systems
- Digital Signage
- Process Control
| Model | VL-ZBXTP-32T |
| Screen Size | 32" LED LCD |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 10-Point Multi-Touch |
| Touch Interface | USB (Mini-USB) |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Brightness | 350 nits |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 8 ms |
| Display Colors | 16.7 Million |
| Pixel Pitch | 0.2451 x 0.2451 mm |
| Viewing Area | 27.5" x 15.4" |
| Video Input | HDMI |
| Enclosure | Zero-Bezel, Painted Steel |
| Mounting | VESA 200 x 200 mm |
| Power Input | 24VDC / 100-240VAC (Adapter Included) |
| Power Consumption | 96W |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Dimensions | 30" W x 17.4" H x 2.2" D |
| Weight | 30.9 lbs (14 kg) |
| Warranty | 1-Year |
