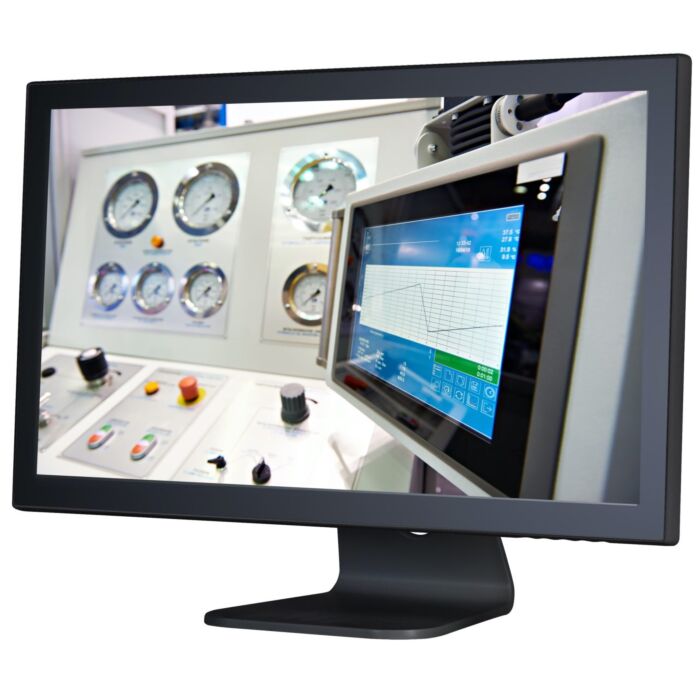

Tru-Vu VL-ZBVM-21.5H 21.5" HD Zero‑Bezel Industrial Monitor
SKU
VL-ZBVM-21.5H
Quick Overview
Tru‑Vu VL‑ZBVM‑21.5H Zero‑Bezel Monitor — 21.5” industrial‑grade LCD display with Full HD 1080p resolution, seamless all‑glass front, LED backlight, and durable ABS enclosure. TAA compliant, includes 3‑year warranty.
The TRU‑Vu VL‑ZBVM‑21.5H Zero‑Bezel Monitor delivers industrial‑grade reliability and a sleek, frameless design. Featuring a seamless all‑glass front, this 21.5‑inch industrial LCD monitor provides Full HD 1920×1080 resolution, outstanding image quality, and easy cleaning for hygienic or high‑use environments.
Built for mission‑critical installations, the VL‑ZBVM‑21.5H uses industrial‑grade LCD panels and components for superior durability and performance, ensuring dependable operation in demanding settings such as manufacturing, automation, healthcare, and security.
Features:
- Zero‑Bezel, seamless all‑glass front design
- Full HD 1920×1080 (1080p/60) resolution
- LED backlights for energy efficiency and long life
- Dual built‑in rear speakers
- Lockable On‑Screen Display (OSD) controls
- Industrial‑grade components for continuous use
- Custom OEM configurations available
- 3‑Year warranty for long‑term reliability
- TAA Compliant
Applications:
- Machine Vision
- Industrial Automation
- Medical Displays
- Kiosk Systems
- Surveillance Stations
- Control Rooms
- Manufacturing Lines
- Retail Displays
- Lab Environments
- Hospitality Systems
| Screen Size | 21.5” TFT Color LCD |
| Resolution | 1920 × 1080 (1080p/60 Full HD) |
| Display Area | 18.76” × 10.55” (476.6 × 268.1 mm) |
| Pixel Pitch | 0.248 mm |
| Display Colors | 16.7 million |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Contrast Ratio | 3,000:1 |
| Viewing Angle | 178° (H) × 178° (V) |
| Response Time | 18 ms (Trf) |
| Controls | OSD (On‑Screen Display) via pushbuttons |
| Power Consumption | 25W at 12 VDC / 2.1A |
| Enclosure Material | ABS with Zero‑Bezel front face |
| IP Rating | Front: IP65 / Rear: IP30 |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Humidity | 5–90% non‑condensing |
| Vibration Resistance | 1.5G RMS, random wave, 10–200 Hz, 30 min per axis (X, Y, Z) |
| Shock Resistance | 50G half‑sine wave, 20 msec (X, Y, Z) |
| Dimensions (W × H × D) | 20.68” × 12.61” × 2.20” (525.3 × 320.3 × 55.8 mm) |
| Warranty | 3 Years |
