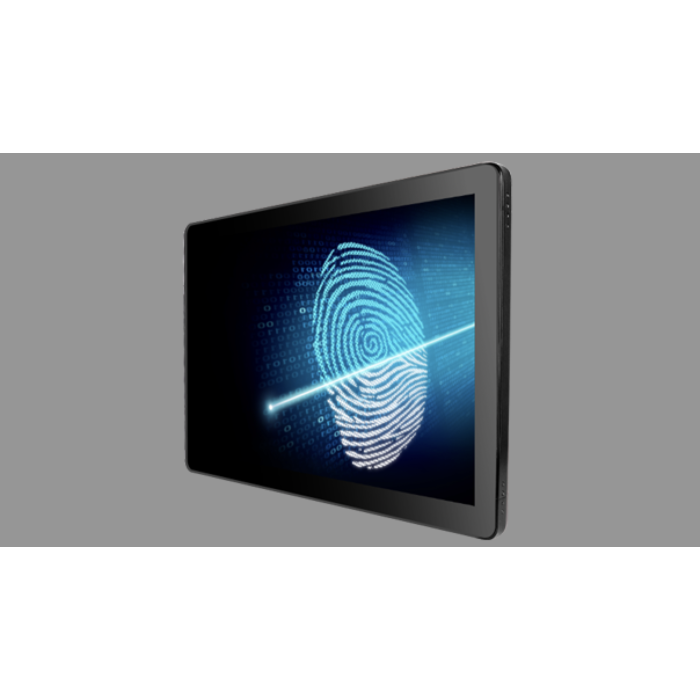

Tru-Vu VL-ZBTP-21.5C 21.5” 10 Point P-CAP Touchscreens Monitor
The Tru-Vu VL-ZBTP-21.5C blends cutting-edge projected capacitive (P-CAP) 10-point multi-touch technology with industrial-grade durability for critical applications. Featuring a bezel-less, all-glass front panel for easy sanitization and a robust steel enclosure, this 21.5" monitor meets the demands of harsh environments. Full HD 1920x1080 resolution, anti-glare coating, and TRU-Tuff treatment ensure vivid visuals, maximum resistance to shock and vibration, and secure performance in mission-critical installations.
Tailored for professional users in the US and worldwide, the VL-ZBTP-21.5C comes with flexible 12VDC/AC power options and complies with major safety and environmental certifications (UL, FCC, CE, RoHS, CB, CCC). Integrated VESA mounting and included flush-mount L-brackets support versatile deployment in industrial plants, military cabinets, kiosks, and public transportation hubs.
Features:
- 21.5" Full HD P-CAP multi-touch display (10 points)
- Bezel-less, all-glass front for easy cleaning
- Steel housing with TRU-Tuff shock & vibration treatment
- 250 nits, anti-glare, 16:9 widescreen
- VESA mount (75/100mm) & flush-mount L-brackets
- Industrial-grade operation: 32°F–122°F, 80% RH
- USB touch interface, VGA & DVI video, 30W power
- Universal approvals: CCC, UL, FCC, CE, CB, RoHS
Applications:
- Military Consoles
- Factory Automation
- Kiosk Terminals
- Public Transit
- Equipment Control
- Inspection Lines
- Law Enforcement
- Entertainment Venues
| Model | VL-ZBTP-21.5C |
| LCD Panel | 21.5" Color LCD, LED Backlights |
| Touch Type | Projected Capacitive, 10 Points |
| Touch Interface | USB |
| Resolution | 1920 x 1080 Full HD (60Hz) |
| Viewable Area | 476.6 mm × 269 mm |
| Pixel Pitch | 0.2331(H) × 0.2331(V) mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Surface Treatment | Anti-glare, 3H |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170° (H) / 160° (V) |
| Response Time | 5 ms |
| Controls | Rear OSD Buttons |
| Video Inputs | VGA, DVI |
| Power Requirement | 12VDC & 100–240VAC (Adapter Included) |
| Power Consumption | 30 Watts |
| Enclosure | Painted Steel, Zero-Bezel Front |
| Mounting | VESA 100 x 100mm & 75 x 75mm, L-Brackets Included |
| Operating Temp | 32°F to 122°F (0°C to 50°C) |
| Humidity | 80% RH |
| Shock/Vibration | 50 G (11 ms, sine wave) |
| Dimensions | 20.16" W x 12.1" H x 1.85" D (512.1 x 307.3 x 47 mm) |
| Weight | 12.35 lbs |
| Approvals | CCC, UL, FCC, CE, CB, RoHS |
