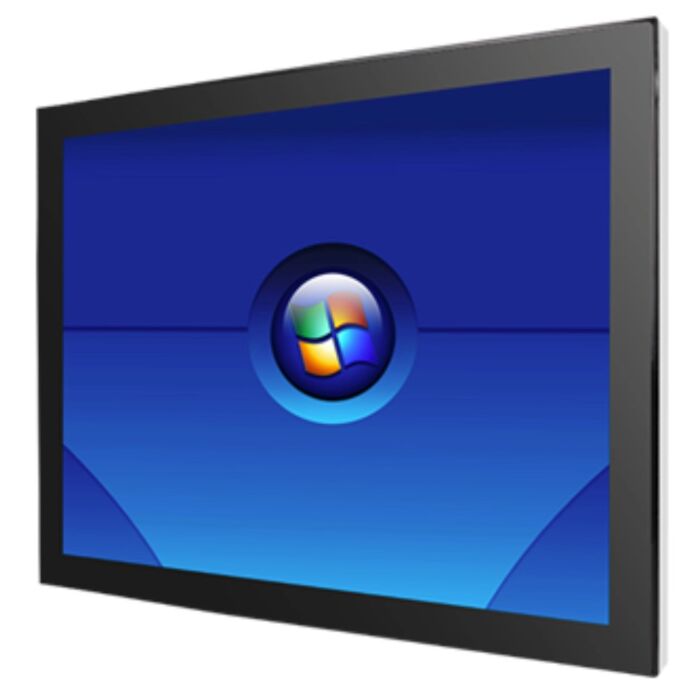

Tru-Vu VL-ZBTP-19H 19” Industrial-Grade Touch Screen Monitor
The Tru-Vu VL-ZBTP-19H is a rugged 19-inch industrial touch screen monitor engineered for precision, durability, and superior image clarity. Featuring projected capacitive multi-touch technology, this monitor supports up to ten simultaneous touch points and delivers edge-to-edge performance with exceptional responsiveness. Its 380 nits brightness and 1280 x 1024 (SXGA) resolution ensure vivid, crisp visuals for demanding control or automation environments.
Designed to withstand continuous operation, the VL-ZBTP-19H includes the exclusive TRU-Tuff treatment for enhanced endurance. Each unit is fortified with secured wiring, silicone-sealed connections, and thread-locked fasteners to resist vibration and wear. Ideal for manufacturing, security, and embedded systems, it operates reliably on both 12VDC and 100-240VAC power sources.
Features:
- 19" LED-backlit industrial LCD display
- Projected capacitive 10-point touch interface (USB)
- 1280 x 1024 (SXGA) resolution
- 380 nits high brightness for vivid clarity
- Edge-to-edge zero-bezel glass front
- VGA and HDMI inputs
- TRU-Tuff rugged construction for industrial environments
- Dual power options: 12VDC or 100–240VAC
- VESA mountable (75x75mm & 100x100mm)
- CE, FCC, ETL, RoHS certified
Applications:
- Industrial Control
- Machine Vision
- Food Processing
- Surveillance Systems
- Transportation Displays
- Medical Equipment
- Kiosk Integration
- Manufacturing Lines
- Museum Exhibits
| Model | Tru-Vu VL-ZBTP-19H |
| LCD Panel | 19” Color LCD; LED Backlights |
| Touch Screen Type | Projected Capacitive (10-Point) |
| Touch Interface | USB |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Area | 14.81” (W) x 11.85” (H) (376.3 mm x 301 mm) |
| Pixel Pitch | 0.294 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 380 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 170° (H) x 160° (V) |
| Response Time | 10 ms (Trf) |
| Video Input | VGA & HDMI |
| Power Requirement | 12VDC / 100–240VAC (with AC Adapter) |
| Enclosure | Zero-Bezel, Painted Steel |
| Mounting | Rear VESA 75x75mm & 100x100mm (Optional L-Brackets for flush mount) |
| Operating Temperature | 32˚ to 122˚F (0˚ to +50˚C) |
| Dimensions | 16.89" W x 14.02" H x 1.76" D (429mm x 356mm x 45.6mm) |
| Approvals | CCC, ETL, FCC, CE, CB, RoHS |
