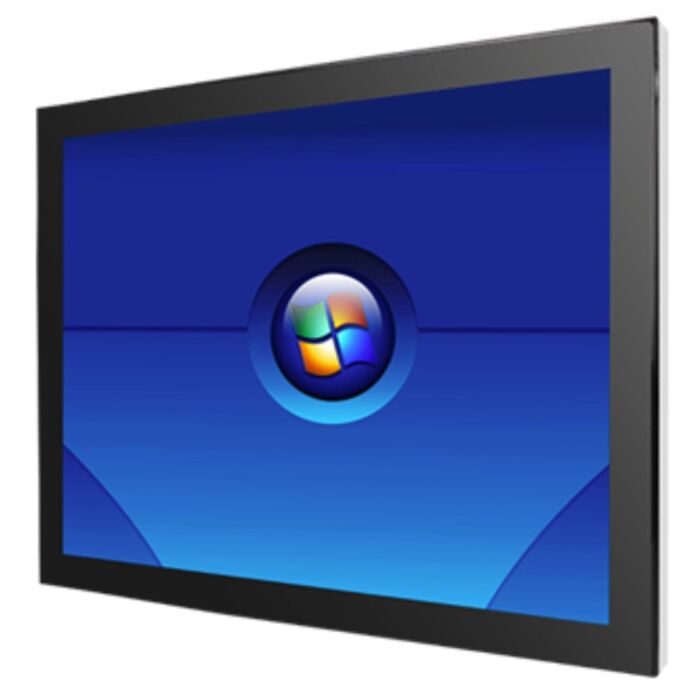

Tru-Vu VL-ZBTP-17H-24 17" Industrial Zero-Bezel Projected Capacitive Touch Screen Monitor
SKU
VL-ZBTP-17H-24
Quick Overview
Durable 17" projected capacitive touchscreen monitor with steel housing, bright SXGA display, 24VDC power input, and TRU-Tuff ruggedization for industrial use.
The Tru-Vu VL-ZBTP-17H-24 is a rugged 17-inch industrial-grade touchscreen monitor built for demanding environments where reliability and precision matter. Featuring a projected capacitive touch panel, it offers responsive 10-point multi-touch capability and an edge-to-edge glass front surface for superior durability and clarity.
This monitor delivers consistent image performance with a 1280 x 1024 SXGA resolution, 250 nits brightness, and a 1000:1 contrast ratio. Its TRU-Tuff treatment reinforces internal components with RTV silicone, ThreadLock-secured fasteners, and wire dressing to ensure long-term dependability in industrial and commercial settings.
Features:
- 17” industrial-grade LCD touchscreen
- Projected capacitive 10-point multi-touch technology
- 1280 x 1024 (SXGA) resolution for crisp clarity
- Edge-to-edge all-glass zero-bezel front design
- Steel construction with TRU-Tuff reinforcement
- VGA and HDMI video inputs
- USB interface, HID compliant (no drivers required)
- 24VDC operation with wide 32° to 122°F temperature range
- Rear VESA mounting options (75x75mm and 100x100mm)
- UL, FCC, CE, and RoHS certified
Applications:
- Machine Vision
- Industrial Automation
- Food Processing
- Security Systems
- Manufacturing Control
- Kiosk Display
- Museum Exhibit
| LCD Panel | 17" Color LCD; LED Backlights |
| Touch Screen Type | Projected Capacitive |
| Touch Interface | USB (HID Compliant) |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Area | 13.03" (W) x 10.64" (H) / 337.9 x 270.3 mm |
| Pixel Pitch | 0.294 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 250 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170° (H) x 160° (V) |
| Response Time | 5 ms (Trf) |
| Video Input | VGA & HDMI |
| Power Requirement | 24VDC |
| Enclosure | Zero-Bezel, Painted Steel |
| Mounting | Rear VESA 75x75mm & 100x100mm (optional L-Brackets) |
| Operating Temperature | 32°F to 122°F (0°C to +50°C) |
| Dimensions (W x H x D) | 14.92" x 12.33" x 1.86" / 378.9 x 313.3 x 47.3 mm |
| Approvals | CCC, UL, FCC, CE, CB, RoHS |
