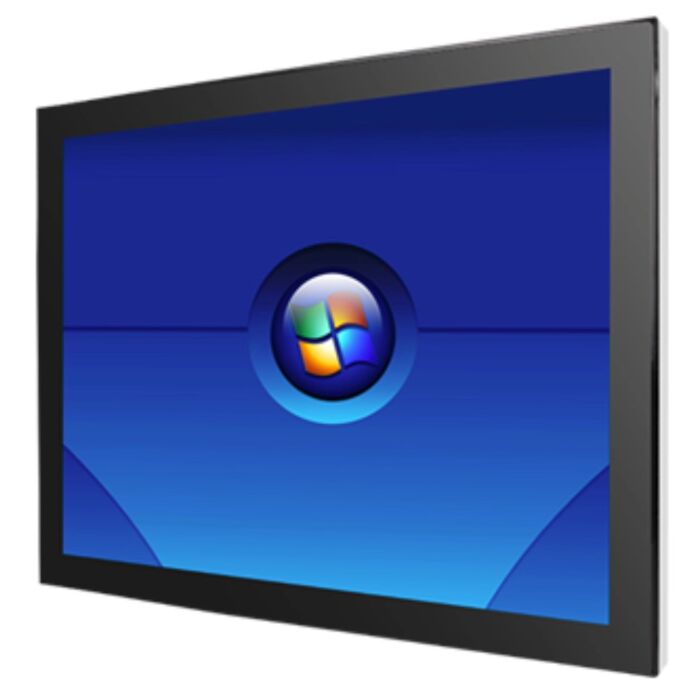

Tru-Vu VL-ZBTP-17C 17” Industrial-Grade Touch Screen Monitor
The Tru‑Vu VL‑ZBTP‑17C is a 17-inch industrial-grade touch screen monitor designed for professional environments that demand reliability, precision, and rugged performance. Featuring projected capacitive (PCAP) touch technology, it supports up to 10-point multi-touch and offers exceptional clarity with a 1280 x 1024 SXGA resolution and a sharp 1000:1 contrast ratio. The edge-to-edge glass design enhances durability and ease of cleaning, while the bright 250-nit display ensures excellent visibility in both indoor and light industrial settings.
Engineered with Tru‑Vu’s exclusive TRU‑Tuff process, the VL‑ZBTP‑17C delivers enhanced protection against vibration, shock, and environmental stress. Every unit is built with RTV silicone-sealed components, wire tie-wraps, and thread-locked fasteners, ensuring long-term stability in manufacturing, control rooms, kiosks, and transportation hubs. The display’s zero-bezel steel housing supports both 12VDC and 90–240VAC power input, offering flexibility for varied installation setups worldwide.
Features:
- 17” SXGA 1280×1024 LED display
- Projected capacitive multi-touch (10-point)
- Edge-to-edge all-glass front surface
- TRU‑Tuff ruggedized build (silicone-sealed and secured wiring)
- Steel enclosure with zero-bezel design
- VGA & DVI video inputs
- 250 nits brightness, 1000:1 contrast
- USB touch interface (HID compliant)
- 4:3 aspect ratio for industrial systems
- Dual power: 12VDC and universal 100–240VAC
Applications:
- Factory Control
- Kiosk Display
- Security Monitoring
- Marine Navigation
- Medical Equipment
- Retail POS
- Vehicle Integration
- Broadcast Systems
| Model | Tru‑Vu VL‑ZBTP‑17C |
| LCD Panel | 17” Color LCD; LED Backlights |
| Touch Screen Type | Projected Capacitive |
| Touch Interface | USB (HID Compliant) |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Area | 13.03” × 10.64” (337.9 × 270.3 mm) |
| Pixel Pitch | 0.294 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 250 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170° (H) × 160° (V) |
| Response Time | 5 ms (Trf) |
| Video Input | VGA & DVI |
| Power Requirement | 12VDC / 100-240VAC via Included Adapter |
| Enclosure | Zero-Bezel Painted Steel |
| Mounting | Rear VESA 75x75mm & 100x100mm (optional L-Brackets) |
| Operating Temperature | 32°F to 122°F (0°C to +50°C) |
| Dimensions | 14.92” W × 12.33” H × 1.86” D (378.9 × 313.3 × 47.3 mm) |
| Approvals | CCC, UL, FCC, CE, CB, RoHS |
