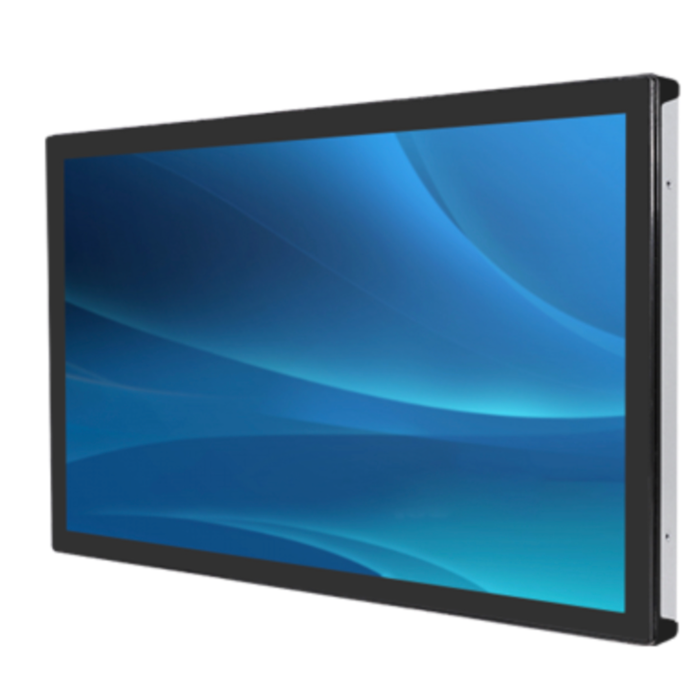

Tru-Vu VL-ZBTP-15.6USBC 15.6" Industrial P-CAP Touchscreen Monitor – 10-Point Multi-Touch, 1080p, VGA/DVI
The Tru-Vu VL-ZBTP-15.6USBC is a rugged 15.6" industrial projected capacitive touchscreen monitor featuring 10-point multi-touch functionality, 1920×1080 Full HD resolution, and 400-nit brightness. Built with a bezel-less all-glass front and steel enclosure, this display is designed for demanding industrial automation, HMI control, and kiosk applications.
Supporting VGA and DVI video inputs, USB touch interface, and wide operating temperatures from -10°C to 70°C, the Tru-Vu VL-ZBTP-15.6C delivers reliable performance in harsh industrial environments.
The Tru-Vu VL-ZBTP-15.6C industrial touchscreen monitor is designed for demanding environments requiring durable, high-performance display technology. Featuring projected capacitive (P-CAP) multi-touch with 10 touch points, this 15.6-inch Full HD touchscreen monitor delivers precise and responsive touch control for modern industrial systems.
The bezel-less all-glass front panel simplifies cleaning while enhancing durability in industrial and commercial environments. A rugged painted steel enclosure ensures structural integrity and long-term reliability even in high-vibration or heavy-duty installations.
With 1920 × 1080 Full HD resolution, 400-nit brightness, and wide viewing angles, the Tru-Vu VL-ZBTP-15.6C provides clear and consistent display performance for machine control systems, industrial kiosks, and operator interfaces.
To maximize durability, the monitor receives Tru-Vu’s TRU-Tuff reinforcement process, which secures internal components with RTV silicone, organized cable management, and thread-locked fasteners to improve shock and vibration resistance.
Supporting VGA and DVI inputs, USB touch connectivity, and standard VESA mounting, the Tru-Vu VLZBTP15.6USBC integrates seamlessly into industrial control systems and equipment.
With an operating temperature range of -10°C to +70°C, this rugged display is ideal for factory automation, manufacturing environments, and industrial control applications.
Features:
- Tru-Vu VL-ZBTP-15.6C Industrial Touchscreen Monitor
- 15.6" Full HD LCD Display
- Projected Capacitive (P-CAP) Touch Technology
- 10-Point Multi-Touch Capability
- 1920 × 1080 Full HD Resolution
- 400 Nit Brightness Industrial Display
- Bezel-Less All-Glass Front Panel
- Rugged Steel Industrial Enclosure
- TRU-Tuff Shock & Vibration Reinforcement
- VGA and DVI Video Inputs
- USB Touch Interface
- Wide Operating Temperature: -10°C to +70°C
- VESA Mounting (75mm & 100mm)
Applications:
- Industrial Automation Systems
- Machine Control Interfaces (HMI)
- Factory Equipment Displays
- Industrial Kiosk Systems
- Manufacturing Process Monitoring
- Warehouse Automation
- Control Room Displays
- Laboratory Instrument Interfaces
- Security and Access Control Systems
- Transportation Control Systems
| LCD Panel | 15.6” Color LCD; LED Backlights |
| Touch Screen Type | Projected Capacitive, 10 Touch Points |
| Touch Interface | USB |
| Resolution | 1920 x 1080p Full HD (60hz) |
| Viewable Area | 13.56" (W) x 7.62" (H) (344.23 x 193.54 mm) |
| Pixel Pitch | 0.2331(H) x 0.2331(V) |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits |
| Contrast Ratio | 500:1 |
| Viewing Angle | 140° (H) x 120° (V) |
| Response Time | 8 ms |
| Control | Rear OSD Buttons |
| Video Inputs | VGA & DVI |
| Power Requirement | 12VDC & 100-240VAC with included AC adapter |
| Power Consumption | 15 Watts |
| Enclosure | Painted Steel, Zero-Bezel Front |
| Mounting | 100 x 100mm & 75 x 75mm Rear VESA Holes (plus perimeter mounting holes for flush-mounting) |
| Operating Temp | 14° to 158° F (-10° to +70° C) |
| Humidity | 80% RH |
| Shock/Vibration | 50 G (11 msec, sine wave) |
| Dimensions | 15.04" W x 9.21" H x 1.82" D (382 W x 234 H x 46.1 D mm) |
| Weight | 6 lbs (2.7 kg) |
| Approvals | CCC, UL, FCC, CE, CB, RoHS |
