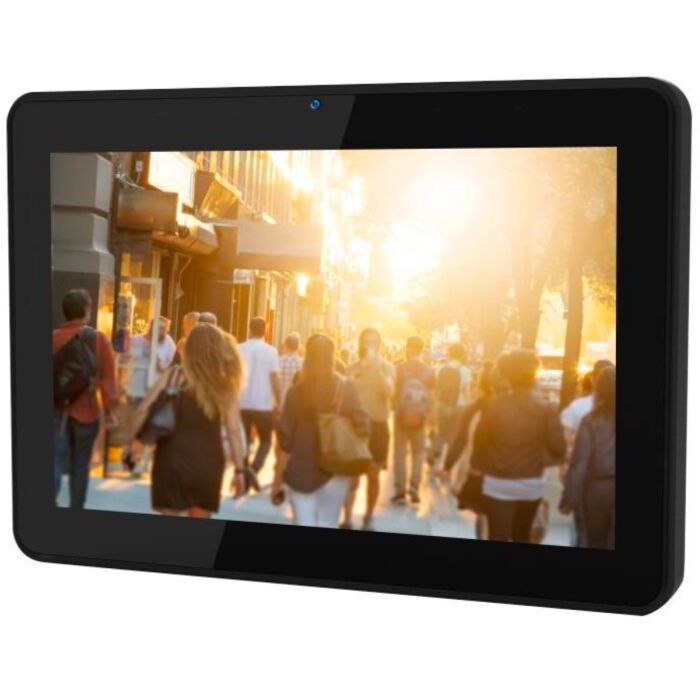

Tru-Vu VL-ZBTP-10.1A 10.1” Industrial Touch Screen Monitor
The Tru-Vu VL-ZBTP-10.1A is an industrial-grade 10.1” bezel-less touchscreen monitor engineered for maximum reliability and hygiene in challenging environments. Powered by advanced projected capacitive multi-touch technology, this monitor responds effortlessly to wet fingers or gloved hands—making it ideal for medical, manufacturing, and control room settings.
Designed by Tru-Vu, a trusted leader in industrial display innovation, each VL-ZBTP-10.1A monitor features TRU-Tuff reinforcement for superior shock and vibration resistance, anti-glare tempered glass, and a seamless all-glass zero-bezel front for easy cleaning and contamination control. Tru-Vu’s commitment to industrial quality is evident through its exclusive TRU-Tuff process: all connections are RTV silicone-sealed, wires are professionally dressed and secured, and ThreadLock is applied to all screws to guarantee lasting performance. This model is approved by CCC, ETL, FCC, CE, CB, and RoHS—demonstrating compliance with global industry standards. Supported by a 1-year warranty and responsive U.S.-based technical support, the VL-ZBTP-10.1A is the dependable choice for professionals who demand rugged durability and precision in every touch.
Features:
- 10.1" WXGA industrial touchscreen display
- Projected capacitive multi-touch technology
- Operable with wet or gloved fingers
- Zero-bezel, seamless all-glass design
- Anti-glare tempered front glass
- TRU-Tuff construction for shock/vibration resistance
- Rugged steel enclosure
- VGA, HDMI, and DVI inputs
- OSD control via rear panel buttons
- Wide viewing angle: 170° horizontal/vertical
- VESA and flush mounting options
- 12VDC / 100–240VAC power flexibility
- Industrial-grade reliability for continuous use
Applications:
- Industrial Automation
- Medical Equipment
- Control Systems
- Manufacturing Lines
- Commercial Displays
- Testing Stations
- A/V Integration
- Kiosk Systems
| LCD Panel | 10.1” Color Panel |
| Touch Technology | Projected Capacitive (Multi-Touch) |
| Touch Interface | USB |
| Resolution | 1280 x 800 (WXGA) |
| Display Area | 8.66” (W) x 5.34” (H) (219.96mm x 135.6mm) |
| Pixel Pitch | 0.2175 x 0.2088 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:10 |
| Brightness | 300 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170° (H) x 170° (V) |
| Response Time | 16 ms (Trf) |
| Control | OSD via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI, DVI |
| Power Requirement | 12VDC / 100–240VAC (Power Adapter Included) |
| Power Consumption | 13 Watts |
| Enclosure | Rugged Steel |
| Mounting | 75 x 75 mm VESA Mount / L-Brackets for Flush Mounting |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Humidity | 5–90% RH |
| Shock | 50G, 20ms, Half-sine wave |
| Dimensions | 10.22" (W) x 7.19" (H) x 2" (D) (259.5 x 182.5 x 50 mm) |
| Approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Warranty | 1-Year Limited |
