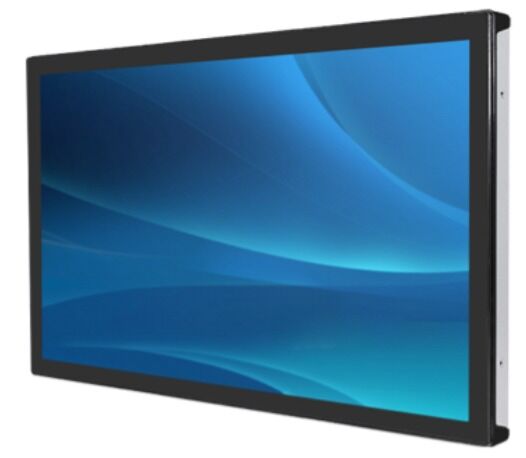

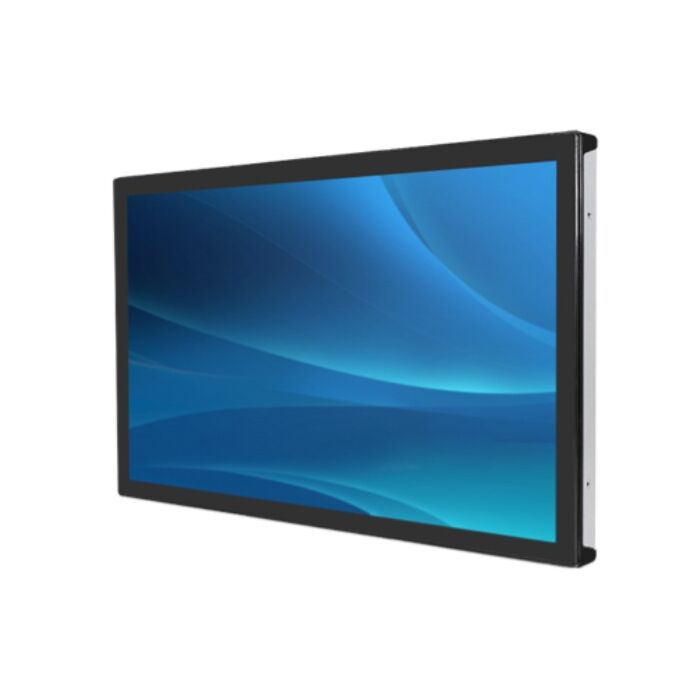

Tru-Vu VL-SRMTP-21.5C-OF 21.5" Sunlight Readable Open Frame Touchscreen Monitor
The Tru-Vu VL-SRMTP-21.5C-OF is a 21.5-inch sunlight readable open frame touchscreen engineered for demanding industrial, outdoor, and kiosk applications. With a 1,000 nits brightness (1,500 nits optional), anti-glare tempered glass, and IP65-rated front protection, this display ensures crisp, vibrant performance even in direct sunlight. The Zero Bezel design enables seamless flush mounting for modern integration into enclosures, panels, or control systems.
Built with rugged industrial-grade components and the exclusive TRU-Tuff process, the Tru-Vu VLSRMTP21.5COF delivers enhanced durability and reliability in any environment. The projected capacitive (P-CAP) touchscreen supports multi-touch and wet-finger operation, offering smooth, precise input across up to ten touchpoints. Designed, assembled, and supported in the USA, this display ensures outstanding visual clarity, long-term stability, and field-proven performance.
Features:
- 21.5″ Full HD (1920x1080) LED panel
- 1,000 nits brightness (1,500 nits optional)
- IP65-rated Zero Bezel waterproof front design
- Anti-glare tempered glass for outdoor visibility
- Rugged steel enclosure with TRU-Tuff construction
- Multi-touch projected capacitive technology
- Operates with dry or wet fingers
- Wide viewing angles: 178° (H) / 178° (V)
- Automated ambient light sensor
- Compatible with VGA and DVI input
- Operates from -4˚ to +158˚F (-20˚ to +70˚C)
Applications:
- Industrial Control
- Outdoor Kiosks
- Marine Displays
- Transportation Hubs
- Digital Signage
- Military Systems
- Factory Automation
- Vehicle Integration
| LCD Panel | 21.5” Color LCD; LED Backlight |
| Touch Screen Type | Projected Capacitive (P-CAP) |
| Touch Interface | USB |
| Resolution | 1920 x 1080p (Full HD) |
| Viewing Area | 18.74” (W) x 10.56” (H) (476.1 x 268.1 mm) |
| Pixel Pitch | 0.294 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 1,000 nits (1,500 nits optional) |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 5 ms (Trf) |
| Video Input | VGA & DVI |
| Power Requirement | 24VDC / 90–240VAC via AC Adapter |
| Enclosure | Zero-Bezel Painted Steel |
| Enclosure Rating | IP65 (Front) |
| Mounting | Rear VESA 75mm & 100mm |
| Operating Temperature | -4˚ to +158˚F (-20˚ to +70˚C) |
| Dimensions | 23.07" W x 12.88" H x 3.04" D (535.1 x 327.1 x 77.3 mm) |
