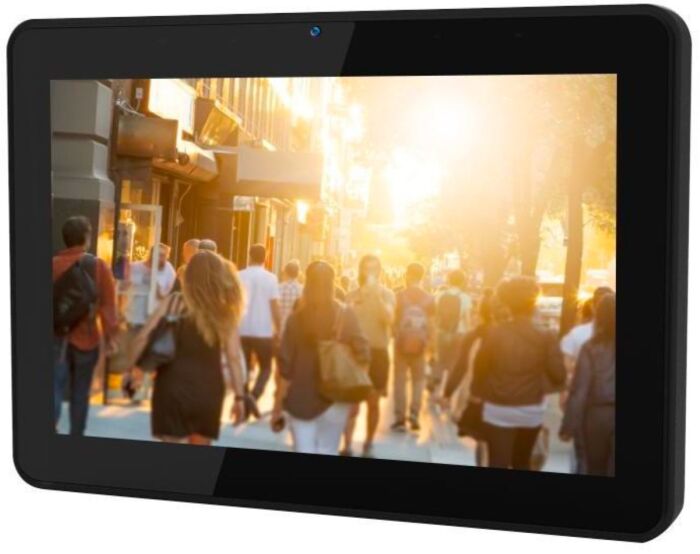

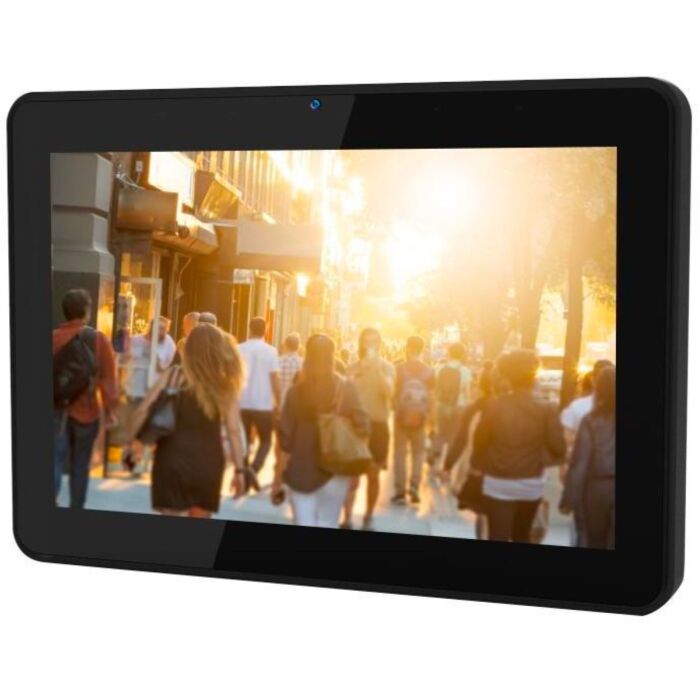

Tru-Vu VL-SRMTP-10.1A 10.1” Sunlight Readable Touch Screen Monitor
SKU
VL-SRMTP-10.1A
$660.00
Quick Overview
Sunlight readable, industrial-grade 10.1” touch screen monitor with high brightness, rugged construction, and versatile applications for harsh environments.
The VL-SRMTP-10.1A delivers outstanding image clarity in direct sunlight, offering 1,200 nits brightness, a robust steel enclosure, and advanced P-Cap touch technology. Designed for reliability in extreme conditions and high ambient lighting, it supports VGA, HDMI, and DVI inputs for industrial and professional use across global markets.
Features:
- 10.1” P-Cap touch screen
- 1,200 nits brightness
- Automatic ambient light sensor
- TRU-Tuff shock/vibration resistance
- IP65 front protection
- Anti-glare glass
- 16:10 aspect ratio
- Rugged steel enclosure
- Rear VESA & flush mounting options
- Wide operating temperatures (-20°C to 65°C)
- Global certifications (CCC, CE, UL, FCC, CB, RoHS)
Applications:
- Military operations
- Outdoor kiosks
- Factory automation
- Heavy equipment
- Law enforcement
- Aviation displays
- Machine inspection
- Entertainment venues
- Transportation systems
| LCD Panel | 10.1” Color Panel |
| Touch Technology | Projected Capacitive |
| Touch Interface | USB |
| Resolution | 1280 x 800 (WXGA) |
| Display Area | 8.66” x 5.34” (219.96mm x 135.6mm) |
| Pixel Pitch | 0.2175 x 0.2088 |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:10 |
| Brightness | 1,200 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170° (H) / 170° (V) |
| Response Time | 16 ms (Trf) |
| OSD Control | Via rear panel pushbuttons |
| Video Inputs | VGA, HDMI, DVI |
| Power Requirement | 12VDC / 100-240VAC (Adapter included) |
| Power Consumption | 18 Watts |
| Enclosure | Steel |
| Mounting | 75 x 75 mm Rear VESA / L-Brackets |
| Operating Temperature | -4°F to 149°F (-20°C to 65°C) |
| Humidity | 5 - 90% RH |
| Shock | 50G, 20ms, Half-sine wave |
| Vibration | 1.5G (10-200 Hz, 30 mins./axis) |
| Dimensions | 10.22" x 7.19" x 2" (259.5 x 182.5 x 50 mm) |
| Approvals | CCC, UL, FCC, CE, CB, RoHS |
| Warranty | 1-Year |
