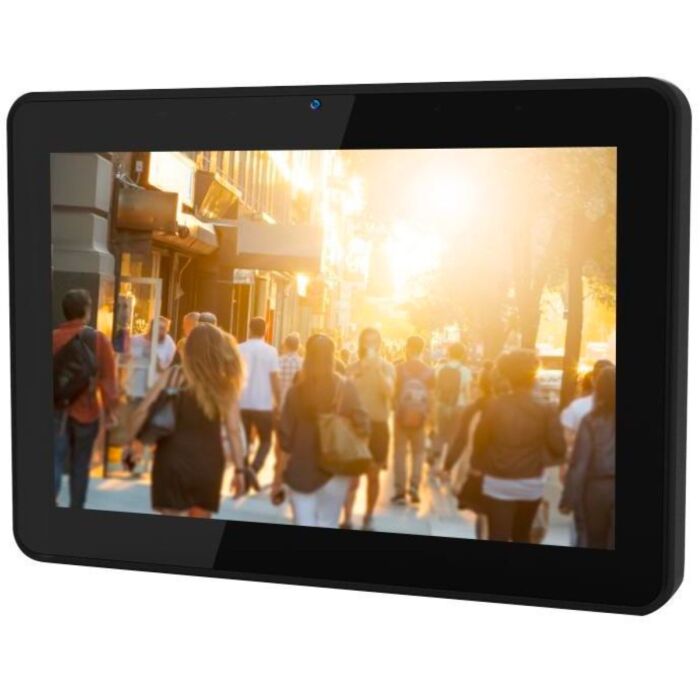

Tru-Vu VL-SRMETP-10.1A 10.1” Sunlight Readable Extreme Temp Touch Screen Monitor
The VL-SRMETP-10.1A is a premium 10.1" sunlight readable touch screen designed for high-demand industrial, military, and outdoor environments. With an impressive 1200 nits brightness and a rugged steel enclosure, this monitor delivers crystal-clear visibility even in direct sunlight. Its projected capacitive touch technology ensures responsive and accurate control, while the integrated ambient light sensor automatically adjusts brightness for optimal viewing. TRU-Tuff treatment, including reinforced connections and secure mounting options, provides outstanding shock and vibration resistance.
Built for extreme operating temperatures from -30°C to +80°C and sealed with IP65 front protection and anti-glare glass, the VL-SRMETP-10.1A stands up to harsh conditions. Multiple video inputs—including HDMI, VGA, and DVI—enable versatile integration for diverse professional applications. Backed by advanced certifications and a reliable warranty, this sunlight readable touch screen sets the standard for industrial monitors built to perform anywhere.
Features:
- 1200 nits brightness
- Projected capacitive touch
- Wide temperature range
- Ambient light sensor
- TRU-Tuff shock protection
- IP65 front panel
- Anti-glare glass
- OSD rear controls
- Multiple video inputs: VGA, HDMI, DVI
- Rugged steel enclosure
- VESA mount and flush-mount brackets
Applications:
- Military operations
- Law enforcement
- Industrial manufacturing
- Aviation control
- Outdoor kiosks
- Heavy equipment
- Transportation hubs
- Machine inspection
- Stadium entertainment
| LCD Panel | 10.1” Color Panel |
| Touch Technology | Projected Capacitive |
| Touch Interface | USB |
| Resolution | 1280 x 800 (WXGA) |
| Display Area | 8.66” (W) x 5.34” (H) (219.96mm x 135.6 mm) |
| Pixel Pitch | .2175 x .2088 |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:10 |
| Brightness | 1200 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170° (H) x 170° (V) |
| Response Time | 16 ms Trf |
| Control | OSD via Rear Pushbuttons |
| Video Inputs | VGA, HDMI, DVI |
| Power Requirement | 12VDC/100-240VAC (Adapter included) |
| Power Consumption | 18 Watts |
| Enclosure | Steel |
| Mounting | 75 x 75 mm VESA / L-Brackets |
| Operating Temp | -22°F to 176°F (-30°C to 80°C) |
| Humidity | 5–90% RH |
| Shock | 50G, 20ms, Half-sine wave |
| Vibration | 1.5G (10–200 Hz, P–P) 30 mins./axis |
| Dimensions | 10.22" (W) x 7.19" (H) x 2" (D) (259.5 x 182.5 x 50 mm) |
| Approvals | CCC, UL, FCC, CE, CB, RoHS |
| Warranty | 1 Year |
