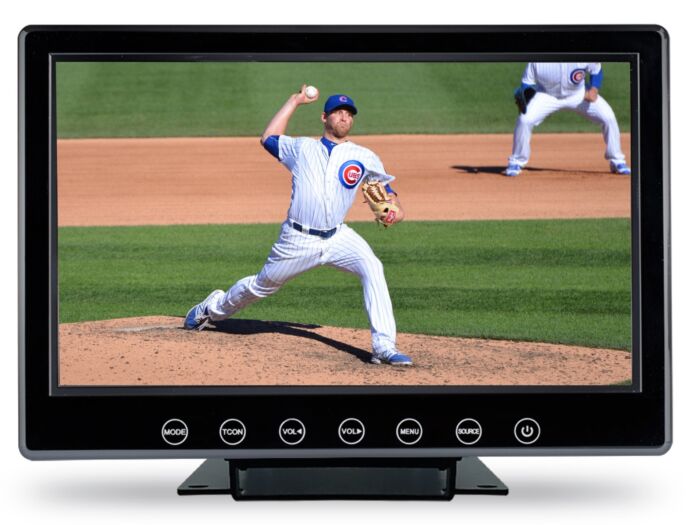

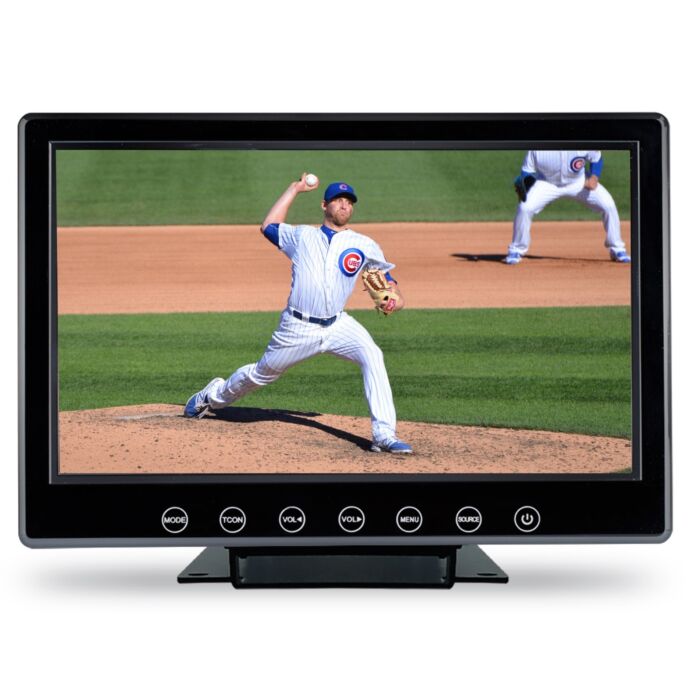

Tru-Vu VL-7Y 7" Color LCD Monitor

The VL-7Y LCD monitors offer exceptional image and dependable, 24/7/365 performance.

The VL-7Y is ideal for mobile, in-vehicle video systems, law enforcement, public transportation and other imaging applications. They are also ideal for use in manufacturing, commercial and other applications requiring a great image in a compact 7” enclosure.

The VL-7Y is part of our Value-Line Series of monitors. Although rugged and dependable, they are not designed for the same extreme environments as our industrial-grade LCD monitors with a 3-year warranty. The VL-7Y, and our “VL” Series monitors carry a 1-year warranty.


  • 7” TFT Active Matrix Color LCD
  • Resolution: 960 x 234
  • Contrast Ratio: 500:1
  • Two Composite Video Inputs (1 RCA, 1 BNC)
  • Aspect Ratio: 16:9 and 4:3 (Selectable)
  • Mirror-Image Function
  • Can Be Customized to Meet Your Needs
  • Great Low-Cost Solution

  • Applications:

  • Mobile
  • In-vehicle video systems
  • Law Enforcement
  • Public Transportation
  • Other imaging applications
    LCD Panel 7” TFT Color LCD (LED Backlights)
    800 x 480
    Display Area 6” x 3.6” mm (152.4 x 91.44 mm)
    Pixel Pitch
    0.16 mm x 0.16 mm
    Display Colors
    262 k
    Aspect Ratio
    16:9 native/4:3 switchable
    250 nits
    Contrast Ratio
    Viewing Angle 140º (H) x 120º (V)
    Response Time
    6.5 msec (gray to gray)
    Video Inputs HDMI, Composite Video (NTSC/PAL Auto-Recognition)
    Power Requirement 12 VDC (20-240 VAC via Included Power Adapter)
    Power Consumption
    < 6W
    Included Base, or 75 x 75 mm VESA Holes
    Operating Temperature
    32° F to 122° F / 0º to 50º C
    Storage Temperature
    -4° to 140° F / -20 to 60º C
    Dimensions 7.05” (W) x 4.68” (H) x .094” (D) (179 x 119 x 24 mm)
    0.6 lb. / 0.27 kg
    Included Accessories
    AC Adapter, Tabletop Stand, Remote Control, HDMI Cable
    1 Year
