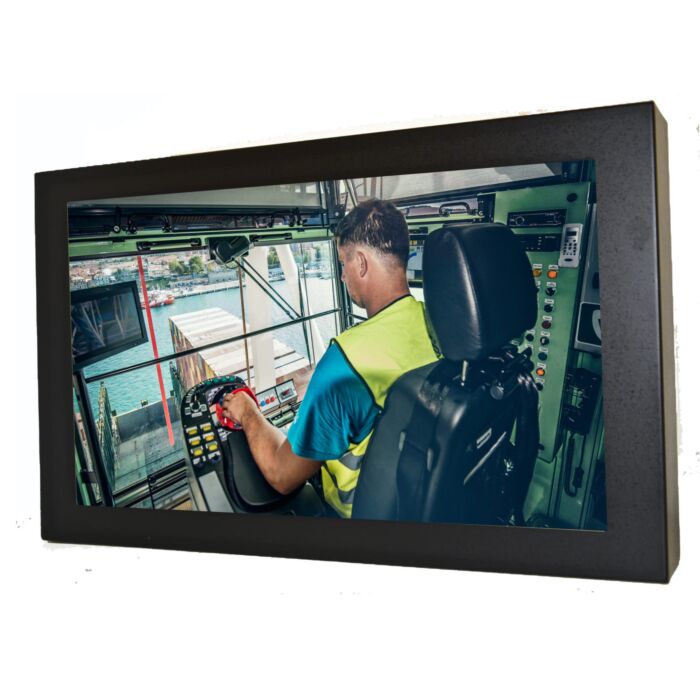

Tru-Vu SRMWX-18.5R-AL 18.5” Sunlight Readable Outdoor LCD Monitor
The Tru-Vu SRMWX-18.5R-AL is a rugged sunlight readable outdoor LCD monitor engineered for extreme conditions. Featuring an impressive 1,000 nits brightness, this 18.5" Full HD display delivers crystal-clear visuals in direct sunlight and other high ambient-light environments. Its advanced LED backlights outperform standard monitors by 3 to 5 times, and the integrated Dim-To-Black function allows precise brightness control for nighttime use.
Built with an industrial-grade NEMA 4X aluminum enclosure, the SRMWX-18.5R-AL is fully waterproof and resistant to shock, vibration, rust, and corrosion. Tru-Vu's exclusive TRU-Tuff treatment ensures maximum reliability, with every component secured, sealed, and reinforced. Designed to operate from -4°F to +158°F, this display is ideal for outdoor, marine, military, and industrial applications where dependable performance is critical.
Features:
- 1,000 nits sunlight-readable brightness
- Full HD 1920 x 1080 resolution
- Industrial-grade AHVA LED panel
- NEMA 4X aluminum waterproof enclosure
- TRU-Tuff shock/vibration resistance
- Dim-To-Black brightness control
- Anti-reflective protective glass
- Wide 178° viewing angle
- Operates in -4°F to +158°F temperatures
- Multiple inputs: VGA, HDMI, DisplayPort
- Ambient light sensor included
- TAA compliant
Applications:
- Marine navigation
- Outdoor kiosks
- Military command
- Industrial control
- Food processing
- Transportation hubs
- Security monitoring
- Theme parks
- Oil rigs
- Public displays
| LCD Panel | 18.5” Color AHVA Panel; LED Backlights |
| Resolution | 1920 x 1080 (1080p/60 Full HD) |
| Viewable Area | 16.10” x 9.06” (408.9 x 230.1 mm) |
| Pixel Pitch | 0.213 mm |
| Colors | 16.7 M |
| Aspect Ratio | 16:9 |
| Brightness | 1,000 nits |
| Ambient Light Sensor | Standard |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 25 msec TrF |
| Control | OSD via Rear Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirement | 12-24 VDC (4-pin Mini DIN); Optional A/C Adapter |
| Power Consumption | 45W @ 12VDC |
| Enclosure | Aluminum, Black; NEMA 4X Rated |
| Glass | Anti-Reflective, IK07 Rated |
| Mounting | 100 x 100 mm VESA (M4 x 6mm) |
| Operating Temp | -4˚F to +158˚F (-20˚C to +70˚C) |
| Shock | 50G, 20ms Half-sine, X/Y/Z |
| Vibration | 1.5 G RMS, 10-200Hz |
| Dimensions | 19.07” x 11.63” x 3.13” (484.8 x 295.4 x 79.4 mm) |
| Weight | 8.2 lbs (3.72 kg) |
| Warranty | 3 Years |
