Tru-Vu SRMW-21.5R-SS (SRMW21.5RSS) 21.5” Outdoor Sunlight Readable LCD Monitor

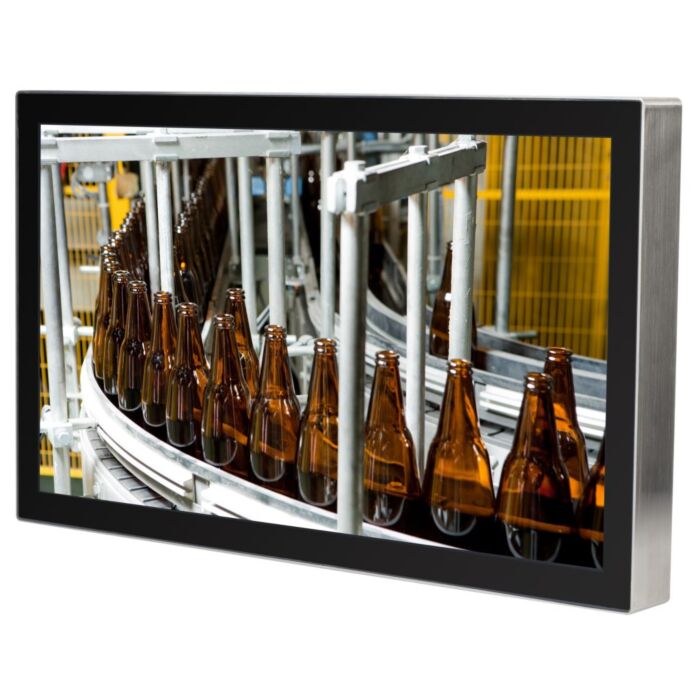

Tru-Vu SRMW-21.5Z 21.5” Outdoor Sunlight Readable LCD Monitor

Experience superior visibility with the Tru-Vu SRMW-21.5Z, a 21.5" Sunlight Readable Outdoor LCD Monitor. Ideal for industrial and machine vision applications, this rugged display offers 1,000 nits brightness, NEMA 4X waterproof enclosure, and versatile video inputs. Ensure reliability in extreme conditions. Explore our full range for tailored solutions. Backed by a 3-Year Warranty, elevate your industrial camera setup today!
SKU
SRMW-21.5Z

Discover the Tru-Vu SRMW-21.5Z Outdoor Sunlight Readable LCD Monitor

Designed for industrial and machine vision applications, the Tru-Vu SRMW-21.5Z is a 21.5" Sunlight Readable Outdoor LCD Monitor with a staggering 1,000 nits brightness. With Full HD resolution (1920 x 1080), this monitor ensures crystal-clear images even in direct sunlight, outperforming standard monitors by 3 to 5 times. The 16:9 aspect ratio and versatile video inputs, including VGA, HDMI, HD-SDI, and Composite, make it ideal for diverse industrial camera setups. The NEMA 4X waterproof stainless steel enclosure, featuring Anti-Reflective glass, guarantees durability in harsh environments. TRU-Tuff technology enhances shock and vibration resistance, ensuring reliable performance.

This rugged outdoor monitor operates in extreme temperatures, from -4°F to +176°F, making it suitable for various industries, including military, law enforcement, aviation, and oil & gas. Backed by a 3-Year Warranty, the SRMW-21.5Z is deployed globally in demanding applications. Our technical experts are ready to assist you in finding the perfect outdoor monitor for your specific needs. Explore our range of industrial-grade Sunlight Readable and Daylight Readable displays, including custom OEM options and Medical Grade Display solutions.

Features:

  • 1,000 nits Brightness
  • Full HD Resolution: 1920 x 1080 (1080p/60)
  • NEMA 4X Waterproof Stainless Steel Enclosure
  • Video Inputs: VGA, HDMI, HD-SDI, Composite (BNC loop-Thru)
  • 9-36VDC
  • Anti-Reflective Glass
  • Ambient Light Sensor to Automatically Adjust Screen Brightness
  • Auto Re-Start After Power Loss
  • TRU-Tuff Ensures Maximum Shock/Vibration Resistance
  • Can Be Customized To Meet Your Needs

Applications:

  • Industrial Camera Systems
  • Machine Vision Applications
  • Military and Law Enforcement
  • Aviation and Entertainment
  • Inspection and Marine
  • Oil & Gas Industry
  • Transportation Industry
SRMW-21.5Z
LCD Panel 21.5” Color MVA Panel; LED Backlights
Resolution 1920 x 1080 (1080p/60 Full HD)
Viewing Area 18.74” x 10.55” (475.99 x 267.97 mm)
Pixel Pitch
0.248mm
Display Colors
16.7 Million
Aspect Ratio
16:9
Brightness
1,000 nits
Ambient Light Sensor
Standard
Contrast Ratio
5,000:1
Viewing Angle 178° (H) x 178° (W)
Response Time 25 msec TrF
Control OSD via Rear Pushbuttons
Video Inputs VGA, HDMI, HD-SDI (Loop-Thru), Composite BNC (Loop-Thru)
Power Requirement 9-36 VDC
Power Consumption 50W
Enclosure Stainless Steel Rear, Zero-Bezel Front
Enclosure Rating NEMA 4X; Front: IP65 Rear: IP66
Mounting 100 x 100 mm Rear VESA Mount Holes (M4 x 6mm Screws)
Operating Temperature/Humidity -4° to 176° F (-20 to +80° C)
Shock 50G, Half-sine Wave, 20ms, X/Y/Z
Vibration Acceleration: 1.5 G RMS; Random Wave; 10-200Hz; 30 mins Per Axis (X,Y,Z)
Dimensions 20.63” (W) x 12.56” (H) x 2.42” (D) (524.0 x 319.0 x 61.53 mm)
Weight 18.4 lbs (8.346 kg)
Warranty 3 Years
