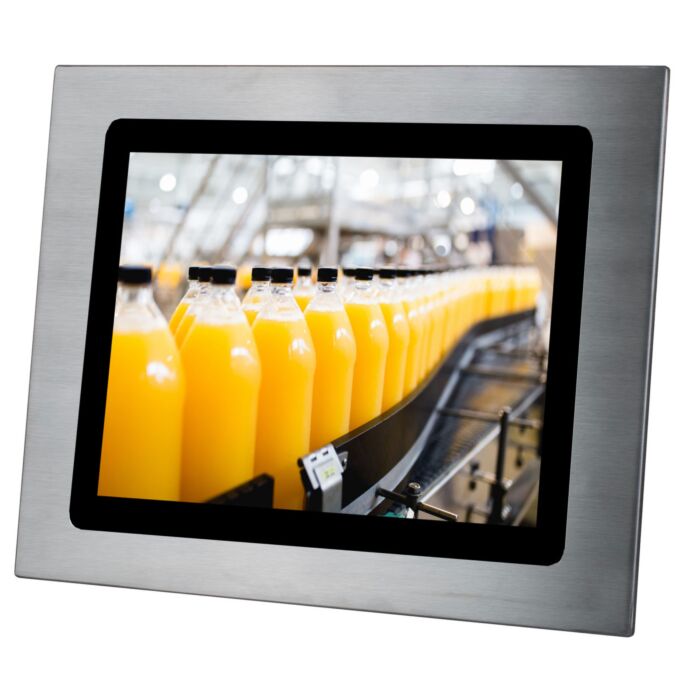

Tru-Vu SRMTPWP-8.4R36 8.4" Sunlight Readable Panel Mount Waterproof Touch Screen Monitor
Enhance your outdoor operations with the SRMTPWP-8.4R36, an 8.4” sunlight readable waterproof panel mount touch screen monitor engineered for tough industrial environments and direct sunlight applications. Delivering a remarkable 1,000 nits brightness, this industrial panel mount monitor guarantees sharp, clear images even in the brightest conditions.
Designed with a rugged stainless steel NEMA 4X waterproof enclosure and galvanized rear clamping bracket, the SRMTPWP-8.4R36 withstands shock, vibration, corrosion, and harsh weather. The integrated ambient light sensor optimizes screen brightness automatically, and the display supports reliable auto-restart after power loss, offering peace of mind for outdoor installations.
Compatible with Automation Direct HMI and TAA compliant, this outdoor display solution operates from -22° to +185°F and features lockable OSD controls for secure settings. Customize to meet your unique requirements or leverage our expert support to find your perfect fit. Trusted by industries worldwide including transportation, food processing, marine, oil & gas, and military.
Features:
- 8.4” sunlight readable touch screen panel
- 1,000 nits brightness for clear visibility outdoors
- Waterproof NEMA 4X stainless steel enclosure
- Ambient light sensor adjusts brightness automatically
- 9-36VDC power input, lockable OSD controls
- Auto re-start after power loss
- TRU-Tuff technology for maximum shock and vibration resistance
- Compatible with Automation Direct headless HMI
- Operates in extreme temperatures: -22° to +185°F
- Customizable for specific requirements
- TAA compliant
- 3-year warranty for reliability
Applications:
- Industrial automation
- Manufacturing
- Food processing
- Transportation
- Marine
- Oil & gas
- Military
- Law enforcement
- Entertainment
- Inspection
| LCD Panel | 8.4” TN LCD; LED Backlights |
| Touch Screen Type | Projected Capacitive Touch |
| Touch Interface | USB |
| Resolution | 800 x 600 |
| Viewable Area | 6.7” (W) x 5.03” (H) (170.4 x 127.8 mm) |
| Pixel Pitch | .213 x .213 mm |
| Display Colors | 16.2 M |
| Aspect Ratio | 4:3 |
| Brightness | 1,000 nits |
| Ambient Light Sensor | Standard |
| Contrast Ratio | 600:1 |
| Viewing Angle | 160° (H) x 160° (V) |
| Response Time | 16msec Trf |
| Video Inputs | VGA; HDMI; DisplayPort |
| Power Requirement | 9-36 VDC via Phoenix Connector |
| Enclosure | Stainless Steel Panel-Mount, with Rear Clamp |
| Enclosure Rating | NEMA 4X; Front: IP65 |
| Operating Temperature | -22° to +185° F (-30° to +85° C) |
| Humidity | 5-90% RH |
| Shock | 50 G (20 msec, 1/2 sine) |
| Vibration | 1.5G RMS 10-200 HZ |
| Dimensions | 11.97" (W) x 9.53" (H) x 2.02" (D) (304.10 x 242.10 x 51.20 mm) |
| Weight | 9.6 lbs / 4.36 kg |
| Warranty | 3 Years |
