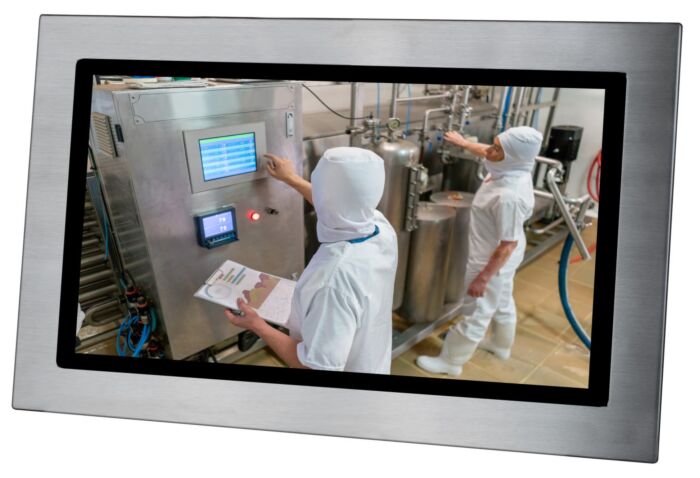

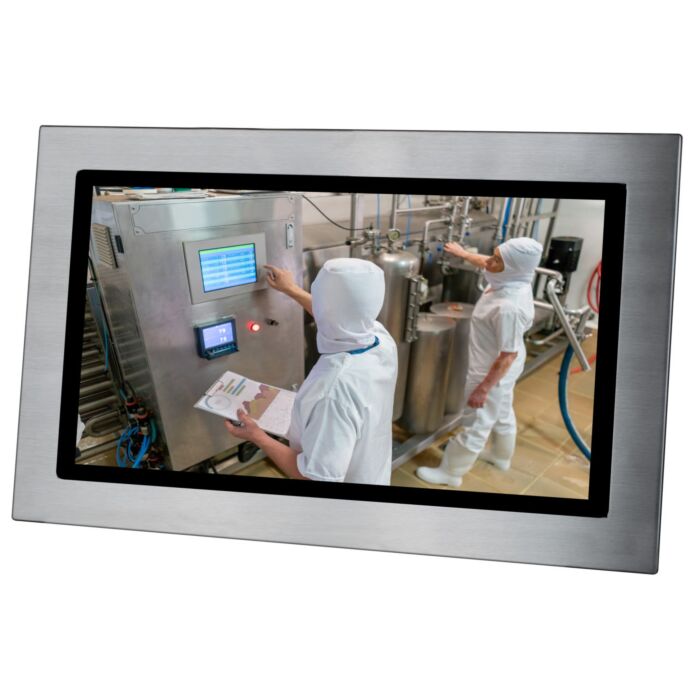

Tru-Vu SRMTPWP-15.6R36 15.6″ Sunlight Readable Outdoor Waterproof Panel-Mount Touchscreen Monitor
The Tru-Vu SRMTPWP-15.6R36 is a rugged 15.6-inch sunlight readable monitor built for harsh outdoor and industrial conditions. Its waterproof stainless steel panel-mount enclosure, anti-reflective glass, and 1,000 nits brightness ensure clear, sharp images even in direct sunlight. Designed with projected capacitive touch (P-Cap) technology, it supports multi-touch operation, gloved interaction, and quick response across various applications.
This waterproof touchscreen monitor delivers reliable performance from -22°F to +185°F, ensuring operation in extreme weather or demanding production environments. It includes durable TRU-Tuff treatment for vibration, shock, and corrosion resistance and features automatic re-start, 9–36VDC power compatibility, and compliance with Automation Direct headless HMI systems. TAA compliance and a 3-year warranty provide long-term dependability for field, marine, and industrial use.
Features:
- 1,000 nits brightness for daylight visibility.
- Waterproof stainless steel panel mount.
- Projected capacitive (P-Cap) multi-touch.
- Wide -22°F to +185°F operating range.
- Auto re-start after power loss.
- Anti-reflective glass for glare reduction.
- 9–36VDC operation and TAA compliant.
- TRU-Tuff industrial durability treatment.
- Compatible with Automation Direct HMI.
- 3-year manufacturer’s warranty.
Applications:
- Outdoor kiosks
- Marine control
- Industrial automation
- Food processing
- Transportation hubs
- Military systems
- Public displays
| Model | Tru-Vu SRMTPWP-15.6R36 |
| Screen Size | 15.6 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 1,000 nits |
| Aspect Ratio | 16:9 |
| Touch Technology | Projected Capacitive (P-Cap) |
| Enclosure | Waterproof Stainless Steel Panel Mount |
| Operating Temperature | -22°F to +185°F (-30°C to +85°C) |
| Power Input | 9–36 VDC |
| Viewing Angle | Horizontal 170° / Vertical 160° |
| Contrast Ratio | 1000:1 |
| Response Time | 15 ms |
| Housing Rating | NEMA 4X / IP65 Front Panel |
| Mount Type | Panel Mount |
| Certifications | TAA Compliant |
| Warranty | 3 Years |
| Compatibility | Automation Direct Headless HMI |
