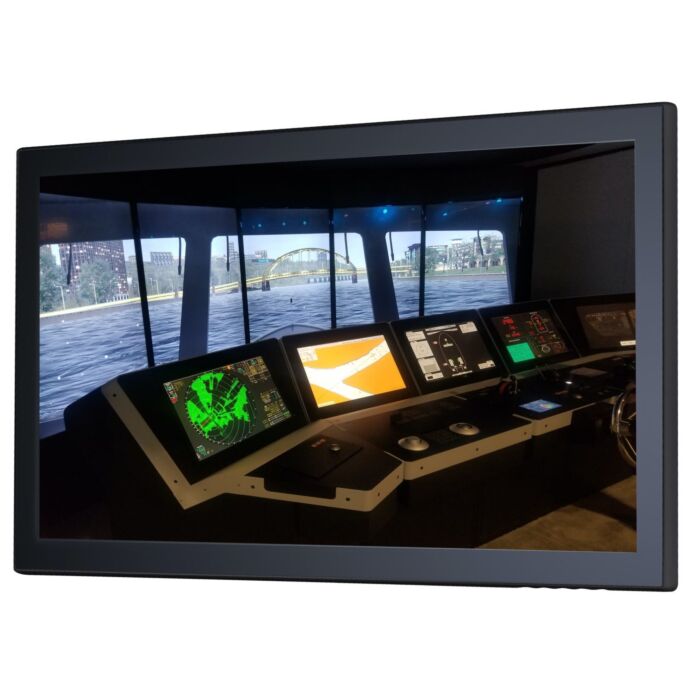

Tru-Vu SRMTP-21.5G-36A Sunlight 21.5” Readable Touch Screen Monitor
The Tru-Vu SRMTP-21.5G-36A is a high-performance 21.5-inch sunlight readable touch screen monitor engineered for direct sunlight and high ambient-light environments. With 1,000 nits brightness, Full HD resolution (1920x1080), and projected capacitive touch technology, it delivers precise visual clarity and responsive interactivity. The sleek zero-bezel design with anti-glare all-glass front ensures durability and effortless cleaning, making it ideal for both industrial and outdoor applications.
Built to endure demanding installations, this display integrates HDMI, DisplayPort, and DVI inputs, with robust 9-36VDC power compatibility. Its rugged aluminum enclosure and TRU-Tuff treatment protect against shock, vibration, and extreme temperatures ranging from -4°F to 176°F. Backed by a 3-year warranty, the SRMTP-21.5G-36A guarantees reliable, high-brightness performance in mission-critical environments.
Features:
- 21.5” Full HD (1920x1080) Display
- 1,000 nits Sunlight Readable Brightness
- Projected Capacitive Multi-Touch
- Zero-Bezel, Anti-Glare Glass Front
- HDMI, DisplayPort, and DVI Inputs
- Auto Re-Start After Power Loss
- TRU-Tuff Industrial Durability Treatment
- Operates from -4°F to 176°F
- Internal Speakers
- 9-36VDC Power Input
- 3-Year Manufacturer Warranty
- TAA Compliant and VESA Mountable
Applications:
- Industrial Automation
- Outdoor Kiosks
- Vehicle Displays
- Inspection Stations
- Marine Control
- Factory HMI
| Model | SRMTP-21.5G-36A |
| LCD Panel | 21.5” Color TFT LCD (LED Backlights) |
| Touch Screen Type | Projected Capacitive |
| Front Glass | Anti-Glare All-Glass Front |
| Touch Interface | USB |
| Resolution | 1920 x 1080 (Full HD) |
| Viewable Area | 18.76” x 10.55” (476.6 x 268.1 mm) |
| Pixel Pitch | 0.248 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 Widescreen |
| Brightness | 1,000 nits |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 178° (H) × 178° (V) |
| Response Time | 18 msec |
| Control | OSD (On-Screen Display) Side Push Buttons |
| Video Inputs | DVI, HDMI, DisplayPort |
| Audio | Rear Speakers |
| Power Requirement | 9–36 VDC |
| Power Consumption | 45 W |
| Enclosure | Zero-Bezel Front, Aluminum Rear |
| IP Rating | Front: IP65, Rear: IP30 |
| Mounting | 100 x 100mm VESA (M4 x 6mm) |
| Operating Temperature | -4°F to 176°F (-20°C to 80°C) |
| Humidity | 5–90% RH |
| Shock | 50 G Half-Sine |
| Vibration | 1.5 G RMS (10–200 Hz) |
| Dimensions | 20.61” x 12.54” x 2.28” (523.4 x 318.4 x 57.9 mm) |
| Weight | 8.14 lbs (3.69 kg) |
| Warranty | 3 Years |
