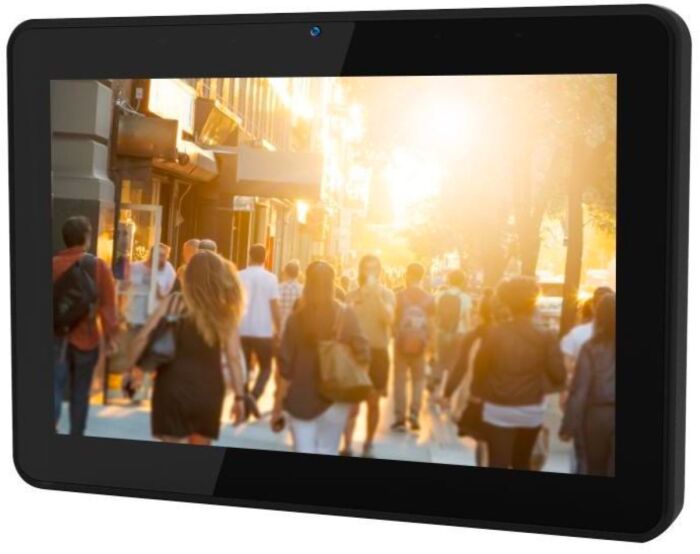

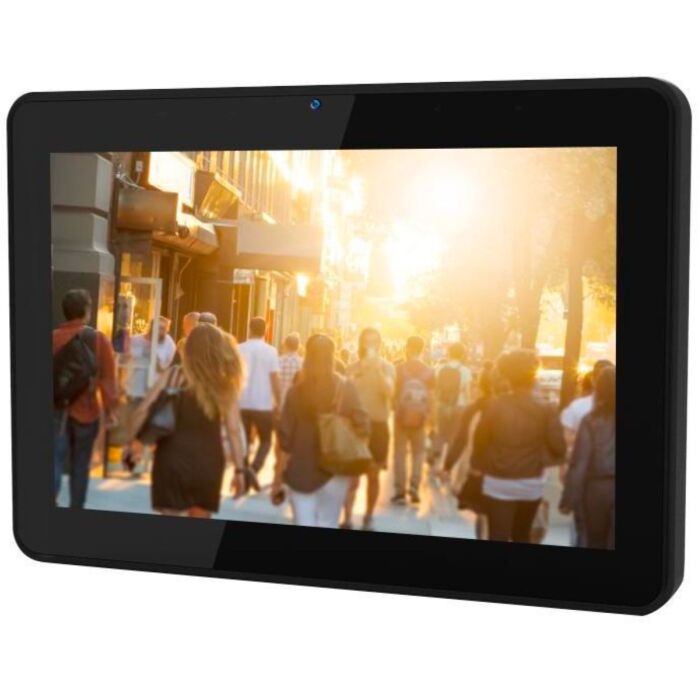

Tru-Vu SRMTP-10.1A-OF 10.1” Sunlight Readable Touch Screen Monitor
The SRMTP-10.1A-OF delivers unmatched clarity and durability for challenging environments. This rugged 10.1” projected capacitive touch screen monitor features an ultra-bright 1200 nits display—over 3–5 times brighter than standard screens—ensuring vivid, sunlight-readable performance in outdoor and high-ambient light situations. Its IP65-rated front panel and anti-glare glass maximize reliability and visibility, while the industrial-grade steel enclosure and TRU-Tuff treatment protect against shock and vibration.
Engineered for mission-critical applications, the SRMTP-10.1A-OF operates flawlessly in extreme conditions, from freezing -20°C (-4°F) to blistering 65°C (149°F). Multiple video inputs (HDMI, VGA, DVI) and secure mounting options provide versatile integration across demanding industries.
Trusted globally, this monitor supports military deployments, law enforcement, industrial automation, aviation control, public kiosks, and heavy equipment operations. Each unit is backed by comprehensive certifications and a warranty for lasting peace of mind.
Features:
- Sunlight readable 1200 nits brightness
- Projected capacitive touch technology
- Automatic ambient light sensor
- Industrial shock/vibration resistance
- IP65 rated front panel
- Anti-glare glass protection
- 16:10 aspect ratio, wide viewing angle
- Steel enclosure, secure mounting options
- Broad video input support: HDMI, DVI, VGA
- Extended operating temperature range
Applications:
- Military deployment
- Law enforcement
- Industrial automation
- Aviation displays
- Entertainment venues
- Equipment inspection
- Kiosk integration
- Heavy machinery
- Transit systems
| LCD Panel | 10.1” Color Panel |
| Touch Technology | Projected Capacitive |
| Touch Interface | USB |
| Resolution | 1280 x 800 WXGA |
| Display Area | 8.66” (W) x 5.34” (H) (219.96mm x 135.6mm) |
| Pixel Pitch | .2175 x .2088 |
| Display Colors | 16.7M |
| Aspect Ratio | 16:10 |
| Brightness | 1200 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170° (H) x 170° (V) |
| Response Time | 16 msec Trf |
| Control | OSD via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI, DVI |
| Power Requirement | 12VDC/100-240VAC via Adapter |
| Power Consumption | 18 Watts |
| Enclosure | Steel |
| Mounting | 75 x 75 mm VESA, L-Brackets for Flush Mount |
| Operating Temp | -4° to +149° F (-20° to +65° C) |
| Humidity | 5 - 90% RH |
| Shock | 50G, 20ms, Half-sine wave |
| Vibration | 1.5G (10-200 Hz, 30 mins./axis) |
| Dimensions | 10.22" x 7.19" x 2" (259.5 x 182.5 x 50 mm) |
| Approvals | CCC, UL, FCC, CE, CB, RoHS |
| Warranty | 1-Year |
