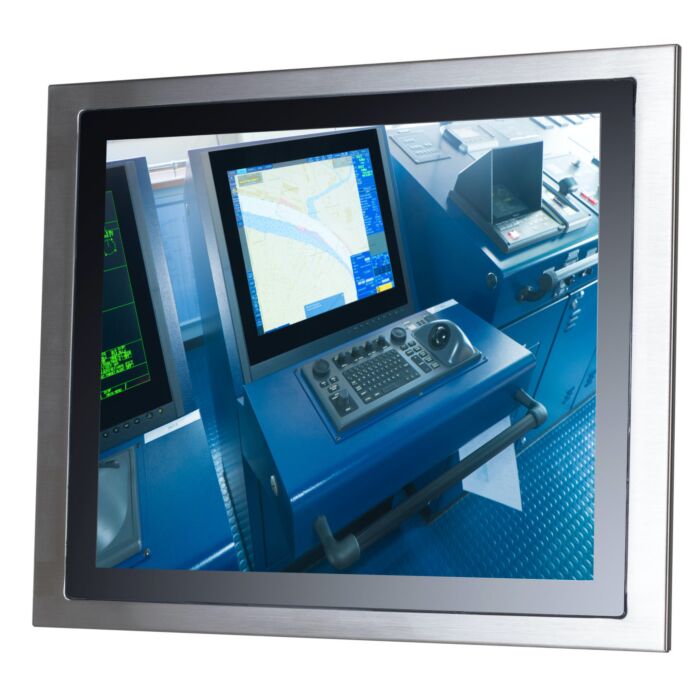

Tru-Vu SRMOBTPWPM-19CH 19" Sunlight Readable Outdoor Waterproof Panel Mount Touchscreen Monitor
The Tru-Vu SRMOBTPWPM-19CH is a 19-inch sunlight readable monitor engineered for outdoor and rugged industrial environments. With 1,000 nits brightness, an optically bonded display, and anti-reflective coating, this outdoor waterproof touchscreen delivers crystal-clear visuals, even in direct sunlight. The durable, stainless steel panel-mount enclosure ensures reliability under demanding conditions including temperature extremes from -22°F to +185°F.
This industrial panel mount display features Projected Capacitive (P-Cap) touch technology for effortless multi-touch operation with bare or gloved hands. Designed for high ambient light areas, the SRMOBTPWPM-19CH excels in performance-critical settings such as marine operations, manufacturing stations, inspection systems, and transportation control consoles. Its rugged build, 3-year warranty, and TAA compliance make it a long-term dependable solution for mission-critical applications.
Features:
- 1,000 nits high-brightness sunlight readable display
- Projected Capacitive multi-touch (P-Cap) interface
- Waterproof stainless steel NEMA 4X / IP65 front panel
- Optical bonding with anti-reflective coating for clarity
- Wide operating temperature: -22°F to +185°F
- 4:3 aspect ratio LCD with 1280×1024 resolution
- Auto re-start after power loss
- Industrial-grade TRU-Tuff treatment for durability
- TAA compliant with 3-year warranty
Applications:
- Military Stations
- Marine Navigation
- Industrial Automation
- Food Processing
- Outdoor Kiosks
- Oil & Gas
- Transportation Systems
- Inspection Lines
| Model | Tru-Vu SRMOBTPWPM-19CH |
| LCD Panel | 19” Color LCD; LED Backlights |
| Touch Screen Type | Projected Capacitive (P-Cap) |
| Touch Interface | USB |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Area | 14.81” (W) x 11.85” (H) (376.17 mm x 300.98 mm) |
| Pixel Pitch | 0.294 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 1,000 nits |
| Ambient Light Sensor | Standard |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 170° (H) x 160° (V) |
| Response Time | 5 ms (Trf) |
| Video Input | VGA & DVI |
| Power Requirement | 12VDC / 90–240VAC via Included AC Adapter |
| Power Consumption | 30W |
| Enclosure | Stainless Steel |
| Enclosure Rating | NEMA 4X; Front: IP65 |
| Mounting | Panel-Mount |
| Operating Temperature | -22°F to +185°F (-30°C to +85°C) |
| Warranty | 3 Years |
| Dimensions | 18.97" W x 15.38" H x 1.99" D (481.8mm x 390.7mm x 50.5mm) |
