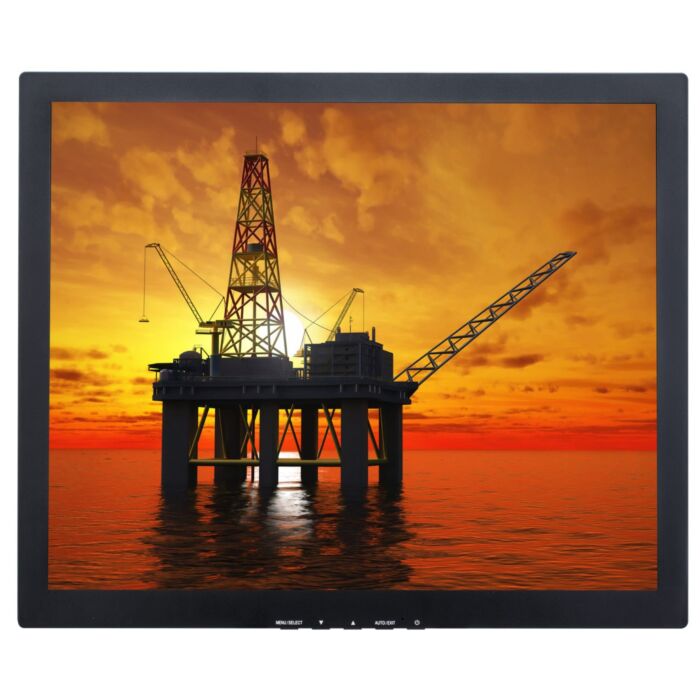

Tru-Vu SRMOB-19U 19" Sunlight Readable LCD Optically Bonded Monitor
The Tru-Vu SRMOB-19U is a rugged 19-inch sunlight readable monitor designed for extreme brightness and clarity, producing a vivid 1,000 nits for reliable visibility even in direct outdoor sunlight. Featuring Optical Bonding technology, it ensures enhanced contrast, eliminates internal reflections, and prevents condensation—making it ideal for mission-critical environments.
Built with an industrial-grade ABS enclosure and the exclusive TRU-Tuff treatment, this optically bonded display provides maximum shock and vibration resistance. With LED backlighting, wide viewing angles, and dependable performance in temperatures from -22°F to 185°F, the Tru-Vu SRMOB-19U ensures long-lasting durability and brilliant visuals for demanding applications worldwide.
Features:
- 1,000 nits high brightness for outdoor visibility
- Optical bonding eliminates glare and condensation
- 4:3 (5:4) aspect ratio for legacy system compatibility
- TRU-Tuff treatment enhances vibration resistance
- Anti-reflective glass for superior screen clarity
- Wide 170° horizontal/160° vertical viewing angles
- Front-panel OSD with lockable controls
- TAA compliant and 3-year warranty
Applications:
- Outdoor Kiosks – direct sunlight use
- Marine Navigation – salt and glare resistant
- Military Control – rugged and stable
- Industrial Automation – high reliability
- Security Systems – clear 24/7 monitoring
- Transportation
| Model | SRMOB-19U |
| LCD Panel | 19” Color TFT LCD Monitor |
| Screen Treatment | Optically Bonded |
| Resolution | 1280 x 1024 (SXGA) |
| Image Size (mm) | 14.81” (W) x 11.85” (H) / 376.17 x 300.98 mm |
| Pixel Pitch | 0.294 mm x 0.294 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 1,000 nits |
| Contrast Ratio | 1,200:1 |
| Viewing Angle | 170° (H) x 160° (V) |
| Response Time | 5 ms Trf |
| Control | OSD via Front Panel Push Buttons (Lockable) |
| Video Inputs | VGA, HDMI, Composite BNC Loop-Thru (1 In / 1 Out), NTSC/PAL Auto-Recognition |
| Impedance | 75Ω / Auto-Terminating Output |
| Audio | Dual Front Speakers |
| Power | 12 VDC (2.1mm Connector) / 90-240 VAC with Included Adapter |
| Power Consumption | 48 Watts |
| Enclosure | ABS |
| Mounting | 75 x 75 mm VESA Pattern (Rear) |
| Operating Temperature | 32°F to 122°F (0°C to +50°C) |
| Humidity | 5-90% RH |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5G RMS 10–200 Hz |
| Dimensions (W x H x D) | 16.59” x 13.80” x 1.89” (421.4 x 350.5 x 48.1 mm) |
| Weight | 11 lb / 5 kg |
| Warranty | 3 Years |
