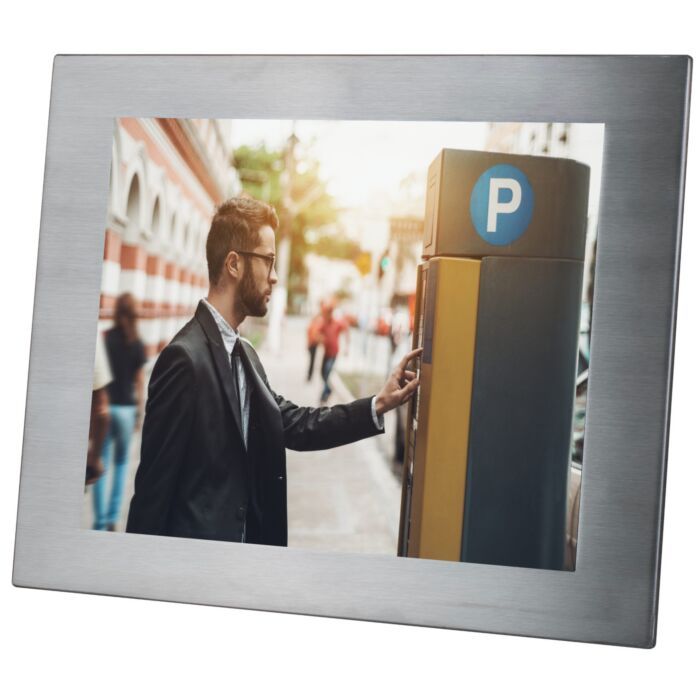

Tru-Vu SRMHXTRWP-12R-36 12” Outdoor Waterproof Touchscreen Monitor
Sunlight readable outdoor waterproof touchscreen monitor with ultra-bright display, rugged stainless steel panel-mount enclosure, and advanced touch technology for reliable operation in harsh environments.
The Tru-Vu SRMHXTRWP-12R-36 is a premium 12” outdoor sunlight readable waterproof touchscreen monitor engineered for maximum reliability and clarity in tough environments. Featuring ultra-high 1,500 nits brightness, this industrial panel-mount display guarantees sharp, clear images—even in direct sunlight or challenging ambient light conditions. Its rugged NEMA 4X stainless steel enclosure resists water, weather, rust, and corrosion, making it ideal for outdoor, industrial, and wash-down locations across North America.
With advanced 5-wire resistive touch technology and TRU-Tuff shock/vibration-resistance enhancements, this monitor delivers exceptional durability for continuous operation in demanding applications such as automation, manufacturing, inspection, food processing, marine, military, oil & gas, and law enforcement. Designed to handle extreme temperatures from -22°F to +185°F, it ensures uninterrupted performance year-round.
Easy integration is supported by wide voltage input (9-36 VDC), compatibility with Automation Direct HMI systems, and multiple video inputs (VGA, HDMI, DisplayPort). The ambient light sensor provides automatic dimming for optimal viewing. Backed by a 3-year warranty and TAA compliance, the Tru-Vu SRMHXTRWP-12R-36 is trusted by OEMs and facility managers who demand reliable, high-brightness touch solutions tailored to harsh, mission-critical environments.
Features:
- Ultra-bright 1,500 nits sunlight readable display
- 5-wire resistive touch technology with USB interface
- NEMA 4X waterproof stainless steel panel-mount enclosure
- Automatic ambient light sensor with dimming function
- Wide voltage input range (9-36 VDC) with locking connector
- Auto restart after power loss for continuous operation
- TRU-Tuff shock and vibration resistance treatment
- Extreme temperature operation (-22°F to +185°F)
- Multiple video inputs (VGA, HDMI, DisplayPort)
- Compatible with Automation Direct HMI systems
- 4:3 aspect ratio with 1024 x 768 resolution
- TAA compliant for government applications
- 3-year manufacturer warranty
- 50,000 hour MTBF rating
Applications:
- Industrial automation
- Outdoor kiosks
- Food processing
- Marine navigation
- Manufacturing plants
- Oil refineries
- Military equipment
- Law enforcement
- Mass transit
- Inspection systems
- Entertainment venues
- Airport operations
- Mining equipment
- Agricultural machinery
- Chemical processing
| LCD Panel | 12” Color TN Panel; LED Backlights |
| Touch Technology | 5-Wire Resistive Touch |
| Touch Interface | USB |
| Resolution | 1024 x 768 |
| Viewable Area | 9.675” (W) x 7.256” (H) (245.76 x 184.32 mm) |
| Pixel Pitch | 0.240mm |
| Display Colors | 16.2 Million |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 1,500 nits |
| Contrast Ratio | 500:1 |
| Dimming Function | Automatic Ambient Light Sensor |
| Viewing Angle | 160˚ (H) x 160˚ (V) |
| Response Time | 35 msec Trf |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirement | 9-36 VDC (2.5mm Locking Pigtail) |
| Power Consumption | 23 Watts |
| Enclosure | Panel-Mount; Stainless Steel Front; Galvanized Rear Clamping Bracket |
| Enclosure Rating | NEMA 4X; Front: IP65 |
| Operating Temperature | -22˚ to +185˚F (-30˚ to +85˚C) |
| Humidity | 5-90% RH |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5G RMS 10-200 HZ |
| Dimensions | 13.9" (L) x 11.05" (H) x 1.83" (D) 353.2 x 280.7 x 46.4mm |
| Weight | 8.54 lbs (3.87 kg) |
| Warranty | 3 Years |
