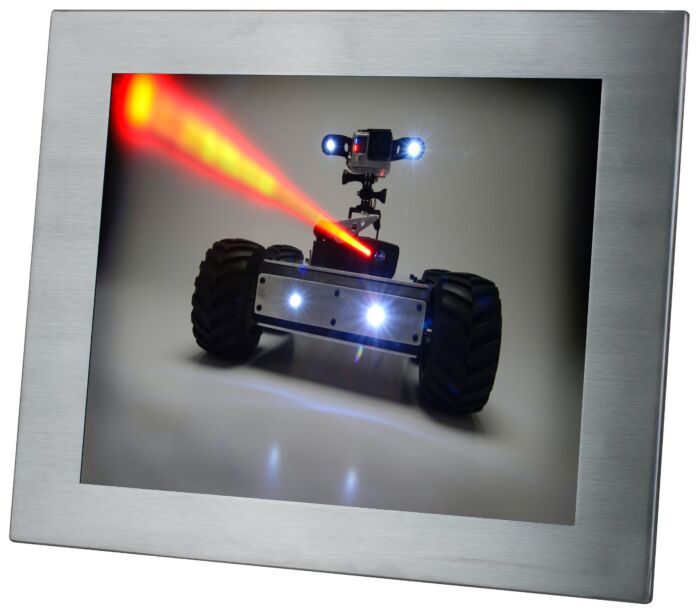

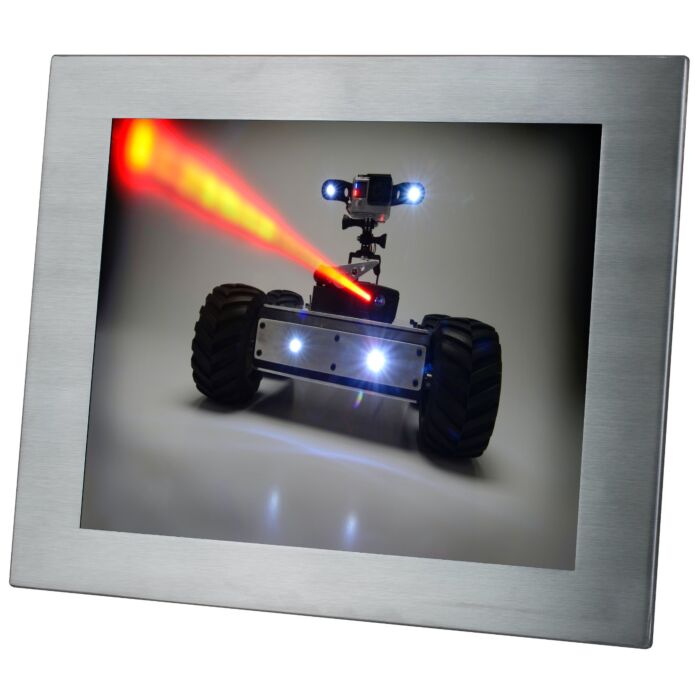

Tru-Vu SRMHXTRWP-10.4C (SRMHXTRP10.4C) 10.4” Sunlight Readable Waterproof Panel-Mount Touch Screen Monitors
SKU
SRMHXTRWP-10.4C
$1,595.00
Quick Overview
*Please note this product is subject to tariff fee*
The SRMHXTRWP-10.4C Sunlight Readable Waterproof Panel-Mount Touch Screens are designed to operate in direct bright sunlight, or in other high ambient-light conditions. They utilize state-of-the-art LED backlights to produce over 1,500 nits of brightness (vs. 250-300 nits for standard monitors). The waterproof panel-mount enclosure enables installation in wash down or wet environments. The Ambient Light Sensor brightens or dims the screen as needed, depending upon ambient light conditions.The SRMHXTRWP-10.4C Sunlight Readable Waterproof Panel-Mount Touch is specifically designed for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
Features:
Applications:
| Model | SRMHXTRWP-10.4C |
| LCD Panel | 10.4” Color MVA LCD Panel (LED Backlights) |
| Touch Technology | 5-Wire Resistive Touch |
| Touch Interface | USB |
| Resolution | 1024 x 768 (XGA) |
| Viewable Area | 8.31” (W) x 6.24” (H) (211.2 x 158.4 mm) |
| Pixel Pitch | 0.2055 |
| Display Colors | 16.2M |
| Aspect Ratio | 4:3 |
| Brightness | 1,500 nits |
| Contrast Ratio | 3,000:1 |
| Viewing Angle | 178° x 178° |
| Response Time | 15 msec |
| Control | OSD (On-Screen Display) via Front Panel Pushbuttons |
| Video Inputs | VGA and DVI |
| Power Requirement | 12-24 VDC |
| Power Consumption | 13W (1.08A @ 12VDC) |
| Operating Temp | -22˚F to +176˚F (-30˚C to +80˚C) |
| Enclosure | Stainless Steel Panel-Mount (Rear Clamp) |
| Rating | NEMA 4X / IP65 |
| Shock | 50G, 20ms, Half-sine wave |
| Vibration | 1.5G RMS 10-200 HZ 30 mins/axis (X,Y,Z) |
| Dimensions | 12.57” (W) x 9.87 (H) (319.20 x 250.70 mm) |
| Warranty | 3 years |
