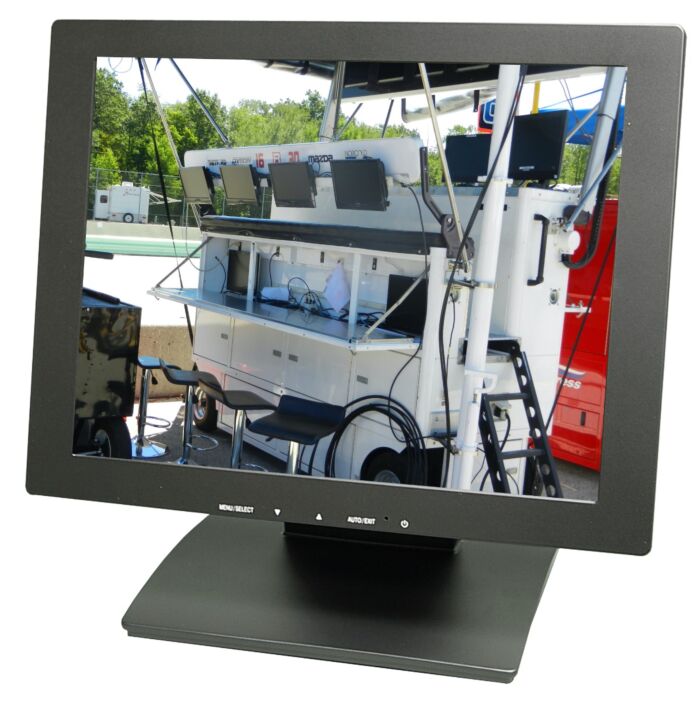

Tru-Vu SRMHX-12S (SRMHX12S) 12.1" Sunlight Readable Hi-Res Monitors

*Product is discontinued, Replacement Option: SRMHX-12U

The SRMHX-12 Series Sunlight Readable industrial-grade monitors are designed to operate in direct bright sunlight, or in other high ambient-light conditions.


The SRMHX-12 utilize state-of-the-art LED backlights to produce over 1,500 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. The SRMHX-12 Series Sunlight Readable monitors are ideal for use in a wide range of industrial, law enforcement, public safety, aviation, marine, military, inspection, advertising and transportation applications where viewability in direct bright sunlight is crucial.

The SRMHX-12 Series Sunlight Readable LCD monitors are built with industrial-grade components and receive our exclusive Tru-Tuff treatment. The Tru-Tuff process includes: RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and Threadlock on all screws. This ensures maximum shock and vibration resistance. Tru-Vu monitors are backed by our full 3-year warranty.


  • Produce Clear, Sharp Images Even in Direct Bright Sunlight
  • 1,500 nits Brightness
  • Auto Re-Start After Power Loss
  • Dim-To-Black Function For Night-Time Use
  • TRU-Tuff Ensures Maximum Shock/Vibration Resistance
  • Lockable On-Screen Display Controls
  • Internal Speakers
  • 3-Year Warranty

  • Applications:

  • Industrial
  • Law Enforcement
  • Public Safety
  • Aviation
  • Marine
  • Military
  • Inspection
  • Advertising
  • Transportation Applications
    LCD Panel 12.1” Color LCD; LED Backlights
    Display Resolution 1024 x 768 (XGA)
    Viewing Area 9.68” (W) x 7.26” (H) (245.76 x 184.32 mm)
    Pixel Pitch 0.24 mm
    Display Colors
    16.2 Million
    Aspect Ratio
    Brightness 700 nits
    Contrast Ratio
    Viewing Angle
    160° (H) x 160° (W)
    Response Time
    35 msec Trf
    OSD (On-Screen Display) via Front Panel Pushbuttons
    Video Inputs VGA, Composite (BNC), S-Video, NTSC/PAL Auto Recognition
    Audio Rear Speakers
    Power Requirement
    12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included PowerBrick
    Power Consumption
    40 Watts
    Mounting Included Tabletop Base or 75x75mm Rear VESA Mount Hole Patterns
    Operating Temperature -22° to +185° F (-30º to +85º C)
    Humidity 5-90% RH
    Shock 50 G (20 msec, 1/2 sine); 1.5G RMS 10-200 HZ
    Approvals UL/cUL, FCC, CE, TUV, RoHS
    Dimensions 11.76” (W) x 9.02” (H) x 1.5” (D) (298.8 x 229.2 x 39.5 mm)
    Weight 3.09 lbs. / 1.40 kg
