Tru-Vu SRMH-32Z Front View

Tru-Vu SRMH-32Z 32" Sunlight Readable LCD Display

Tru-Vu SRMW-32R-SS Image # 1

Tru-Vu SRMW-32R-SS (SRMW32RSS) 32” Outdoor Sunlight Readable LCD Monitor

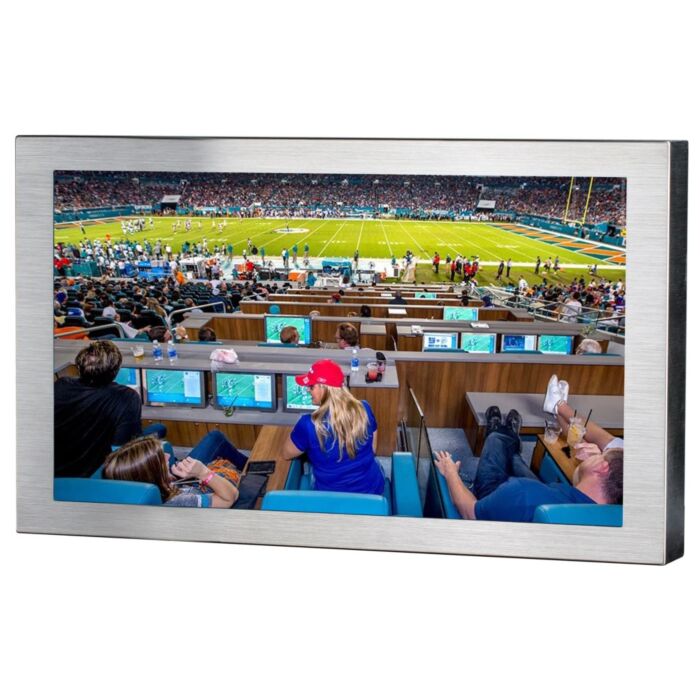

Tru-Vu SRMHW-32R 32” Sunlight Readable Outdoor Monitor

Unleash unparalleled brightness with the Tru-Vu SRMHW-32R 32” Sunlight Readable Outdoor Monitor. Ideal for industrial and machine vision, customize your solution today for reliable performance backed by a 3-Year Warranty.

Unmatched Brightness and Durability: Tru-Vu SRMHW-32R 32” Sunlight Outdoor Monitor

Discover the Tru-Vu SRMHW-32R, a 32” sunlight outdoor monitor designed for unparalleled brightness in challenging environments. With 1,500 nits brightness and full HD resolution, this waterproof monitor ensures crystal-clear images even in direct sunlight. Engineered with industrial-grade components and TRU-Tuff treatment, it withstands harsh conditions, including high operating temperatures ranging from -4°F to +140°F. The NEMA 4X weatherproof stainless steel enclosure guarantees maximum shock resistance and durability.

Equipped with VGA, HDMI, and DisplayPort inputs, this monitor suits diverse applications in industrial and machine vision. It finds utility in military, aviation, oil & gas, and transportation sectors, providing reliable imaging performance. The 3-Year Warranty ensures long-term service. Whether for outdoor inspection or rugged industrial use, the SRMHW-32R excels. Customize it to meet specific needs and experience the quality of our high-end LCD panels. Trust Tru-Vu for superior image quality, durability, and expert technical support.


  • 1,000 nits Brightness
  • Full HD Resolution: 1920 x 1080 (1080p/60)
  • NEMA 4X Waterproof Stainless Steel Enclosure
  • Video Inputs: VGA, HDMI, HD-SDI, Composite (BNC loop-Thru)
  • 9-36VDC
  • Anti-Reflective Glass
  • Ambient Light Sensor to Automatically Adjust Screen Brightness
  • Auto Re-Start After Power Loss
  • TRU-Tuff Ensures Maximum Shock/Vibration Resistance
  • Can Be Customized To Meet Your Needs


  • Industrial Camera Systems
  • Machine Vision Applications
  • Military and Law Enforcement
  • Aviation and Entertainment
  • Inspection and Marine
  • Oil & Gas Industry
  • Transportation Industry
LCD Panel 32” Color MVA Panel; LED Backlights
Resolution 1920 x 1080 (1080p/60 Full HD)
Viewing Area 27.48” (W) x 15.46” (H) (698.4 x 392.85 mm)
Pixel Pitch
0.364mm x 0.364mm
Landscape Mode
Display Colors
16.7 Million
Aspect Ratio
1,500 nits
Ambient Light Sensor
Contrast Ratio
Viewing Angle 178° (H) x 178° (W)
Response Time 8 msec (gray to gray)
Control OSD via Rear Pushbuttons
Video Inputs VGA, HDMI, DisplayPort
Power Requirement 24VDC via included 4 PDIN Pigtail/ 90-240VAC
Power Consumption 100W
Enclosure Stainless Steel (Vent Holes On Bottom)
Enclosure Rating NEMA 4X (Except Bottom)
Mounting 200 x 200 mm Rear VESA Mount Holes (M4 x 6mm Screws)
Operating Temperature/Humidity -4° to 140° F (-20 to +60° C)
Shock 50G, Half-sine
Vibration 1.5 G RMS 10-300Hz
Dimensions 30.45” (W) x 17.89” (H) x 3.99” (D) (773.6 x 454.5 x 79.4 x 101.3 mm)
Weight 39.2 lbs (17.78 kg)
Warranty 3 Years
