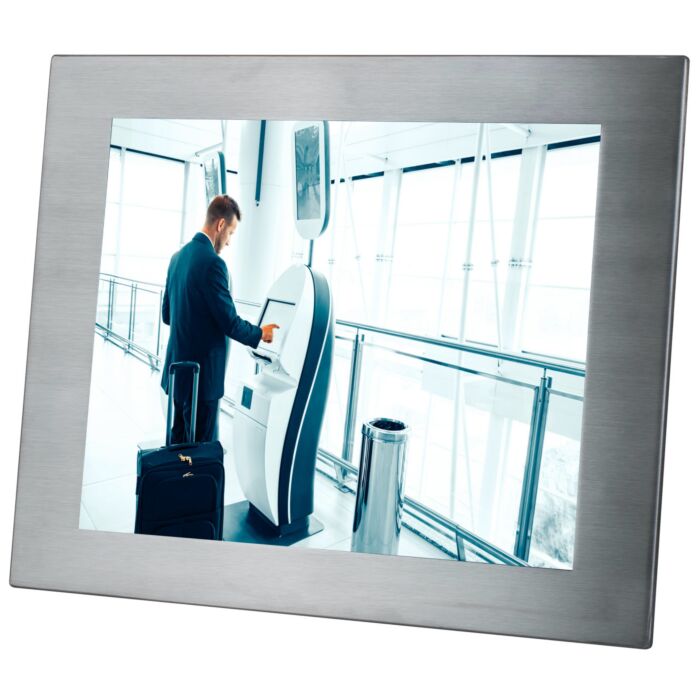

Tru-Vu SRMHTRWPM-19C-S 19” Sunlight Readable Panel-Mount Touch Screen Monitor
The Tru-Vu SRMHTRWPM-19C-S delivers unmatched outdoor performance with a 19-inch sunlight readable touch screen boasting 1,500 nits brightness. Built for extreme environments, it features a rugged stainless steel panel-mount enclosure rated NEMA 4X, ensuring waterproof, dustproof, and corrosion-resistant protection. Designed with a 5-wire resistive touch interface, it offers precise input control even with gloved hands, making it ideal for industrial and field applications.
Engineered for reliability in temperatures from -22˚ to +185˚F, this waterproof panel-mount monitor withstands shock, vibration, and harsh weather. With LED backlighting, ambient light sensing, and compatibility with Automation Direct HMI systems, it is the ultimate industrial stainless steel display solution for high ambient light conditions worldwide.
Features:
- 1,500 nits sunlight readable display
- 5-wire resistive touch interface
- Stainless steel NEMA 4X waterproof enclosure
- Ambient light sensor for optimized brightness
- Wide temp range: -22˚ to +185˚F
- Compatible with Automation Direct HMI
- Shock & vibration resistant
- VGA & DVI inputs
- Auto re-start after power loss
- 3-year warranty
Applications:
- Outdoor kiosks
- Marine navigation
- Military systems
- Industrial automation
- Mining controls
- Food processing
- Transportation hubs
- Oil and gas
- Energy monitoring
- Agricultural machinery
| LCD Panel | 19” Color LCD; LED Backlights |
| Touch Screen Type | 5-Wire Resistive |
| Touch Interface | USB |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Area | 14.81” (W) x 11.85” (H) | 376.17 mm x 300.98 mm |
| Pixel Pitch | 0.294 mm |
| Display Colors | 16.7 M |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 1,500 nits |
| Ambient Light Sensor | Standard |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 170° (H) x 160° (V) |
| Response Time | 5 msec (Trf) |
| Video Input | VGA & DVI |
| Power Requirement | 9-36VDC (2.5 mm Locking Pigtail) |
| Power Consumption | 30 W |
| Enclosure | Stainless Steel |
| Enclosure Rating | NEMA 4X; Front: IP65 |
| Mounting | Panel-Mount |
| Operating Temperature | -22˚ to +185˚F (-30˚ to +85˚C) |
| Warranty | 3 Years |
| Dimensions | 18.33" (W) x 15.18" (H) x 1.67" (D) | 465.8 x 385.8 x 42.5 mm |
