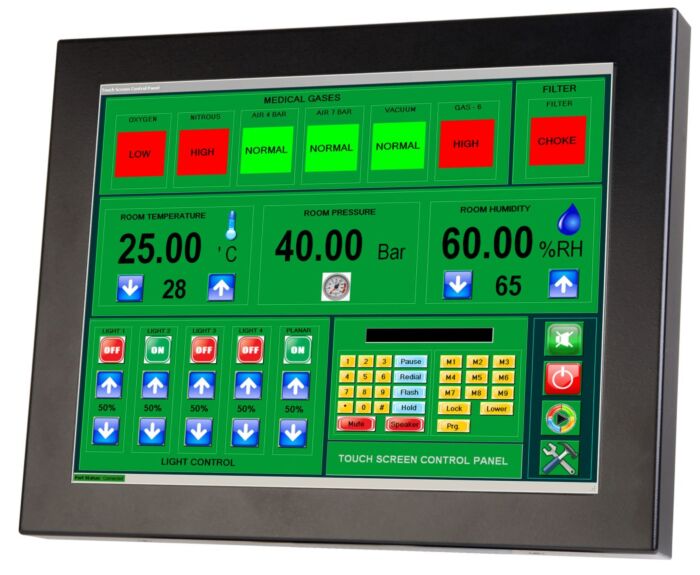

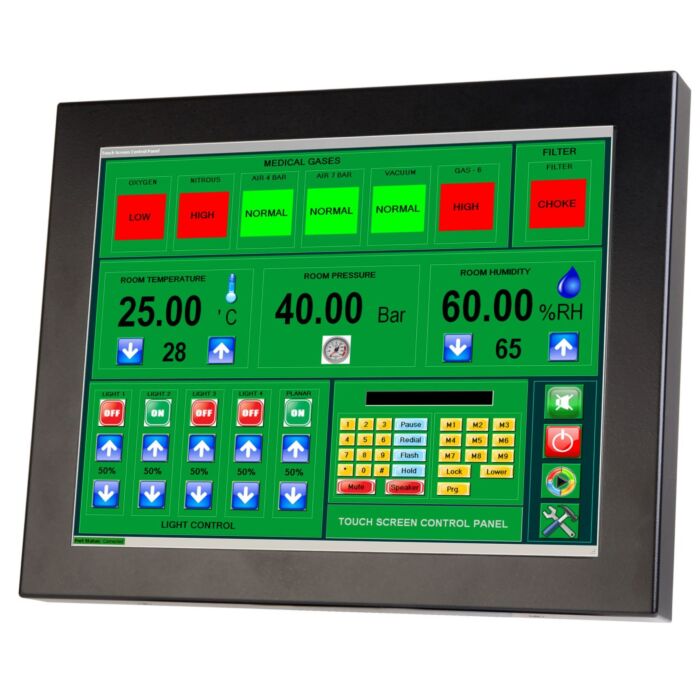

Tru-Vu SRMHTR-17H-HR 17" Sunlight Readable Touch Screen Monitor
The Tru-Vu SRMHTR-17H-HR is a 17-inch sunlight readable touch screen monitor engineered for demanding outdoor and industrial environments. With a powerful 1,500-nit LED backlight, it delivers crisp, vibrant images even under direct sunlight. Its 5-wire resistive touch panel ensures responsive interaction, while the steel enclosure and TRU-Tuff ruggedization process guarantee optimal performance in harsh conditions.
Built with true industrial-grade components, the SRMHTR-17H-HR is designed for operations across wide temperature ranges, from -22°F to 185°F. This sunlight readable monitor supports VGA, HDMI, and DisplayPort inputs and offers both USB and RS-232 touch interfaces. Backed by a 3-year warranty, it ensures long-lasting reliability in automation, marine, and outdoor control systems.
Features:
- 1,500 nits high brightness LED panel
- 5-wire resistive touch screen for durability
- TRU-Tuff construction for shock/vibration resistance
- Lockable OSD controls with auto-restart
- Wide 9–36 VDC power input range
- Multiple video inputs: VGA, HDMI, DisplayPort
- Extreme temperature operation (-22°F to 185°F)
- Compatible with Automation Direct HMI
- TAA compliant and 3-year warranty
Applications:
- Industrial Control
- Marine Navigation
- Outdoor Kiosk
- Military Display
- Transportation System
| Model | SRMHTR-17H-HR |
| LCD Panel | 17” Color LCD; LED Backlights |
| Touch Screen | 5-Wire Resistive |
| Touch Interface | USB & RS-232 |
| Resolution | 1280 x 1024 (SXGA) |
| Viewable Area | 13.3” x 10.64” (337.9 x 270.3 mm) |
| Pixel Pitch | 0.264 mm x 0.264 mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 1,500 nits |
| Ambient Light Sensor | Standard |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 170° (H) x 160° (V) |
| Response Time | 5 ms (Trf) |
| Control | OSD via Front Panel Pushbuttons (Lockable) |
| Video Inputs | VGA, HDMI, DisplayPort |
| Audio | Optional |
| Power Requirement | 9–36 VDC (2.5mm Locking Connector) |
| Power Consumption | 48 Watts |
| Enclosure | Painted Steel |
| Mounting | 100x100mm VESA (M4 x 8mm Screws) |
| Operating Temperature | -22°F to 185°F (-30°C to +85°C) |
| Humidity | 5–90% RH |
| Shock | 50G (20 ms, 1/2 sine) |
| Vibration | 1.5G RMS, 10–200 Hz |
| Dimensions | 14.31”(W) x 12.46”(H) x 1.74”(D) (363.4 x 316.5 x 44.2 mm) |
| Weight | 8.2 lbs (3 kg) |
| Warranty | 3 Years |
