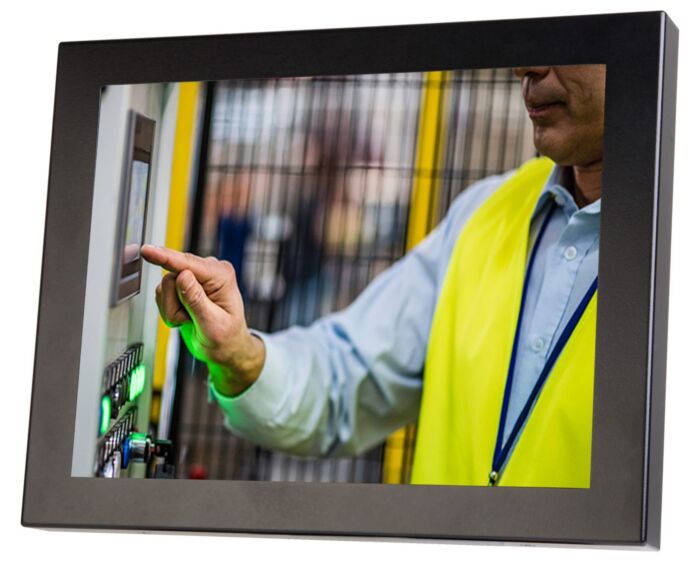

Tru-Vu SRMHTR-10.4V-FRT 10.4” Sunlight Readable Touch Screen Monitor
The Tru-Vu SRMHTR-10.4V-FRT is an industrial 10.4” sunlight readable touch screen monitor, engineered to maintain clear, vibrant images in demanding outdoor or high-light environments. Featuring a 1,500 nits display, five-wire resistive touch technology, and rugged steel construction, it excels in reliability and durability even under harsh conditions.
Independently certified for TAA compliance and accompanied by a three-year warranty, the SRMHTR-10.4V-FRT has been successfully deployed in global industries such as factory automation, transportation, law enforcement, and inspection, ensuring essential operational confidence wherever sunlight readability is mission-critical. Its features result from extensive field testing, and the product is backed by technical experts for ongoing support and consultation.
Features:
- 1,500 nits brightness
- 5-wire resistive touch
- LED backlight technology
- TRU-Tuff shock & vibration resistance
- Lockable OSD controls (rear/front panel)
- Rugged steel enclosure
- Wide temperature range (-22˚F to 176˚F)
- TAA compliant
- 3-year warranty
Applications:
- Outdoor kiosks
- Military vehicles
- Factory automation
- Inspection systems
- Law enforcement
- Crane operation
- Public transit
- Aviation control
- Sports venues
| LCD Panel | 10.4" Color TN, LED Backlights |
| Touch Screen | 5-Wire Resistive, USB Interface |
| Resolution | 800 x 600 (SVGA) |
| Viewable Area | 8.3” x 6.2” (211.2 x 158.4 mm) |
| Pixel Pitch | 0.264 mm |
| Display Colors | 16.2M |
| Aspect Ratio | 4:3 |
| Brightness | 1,500 nits |
| Contrast Ratio | 700:1 |
| Viewing Angle | 160° (H) x 140° (V) |
| Response Time | 15 ms |
| OSD Control | Rear/Front Panel Pushbuttons |
| Video Inputs | VGA |
| Power | 12 VDC (2.1 mm Barrel); 90-240 VAC power supply |
| Power Consumption | 13W (1.08 A @ 12 VDC) |
| Enclosure | Painted Steel |
| Mounting | 75x75 mm VESA (M4 x 6mm) |
| Operating Temp | -22˚F to 176˚F (-30˚ to +80˚C) |
| Shock | 50 G (20ms, ½ sine wave) |
| Vibration | 1.5G (10-200 Hz) 30 mins/axis |
| Dimensions | 10.1”(W) x 7.9”(H) x 1.7”(D), 10.8”(W) x 7.96”(H) x 1.74”(D) |
| Weight | 3.8 lbs (1.7 kg) |
