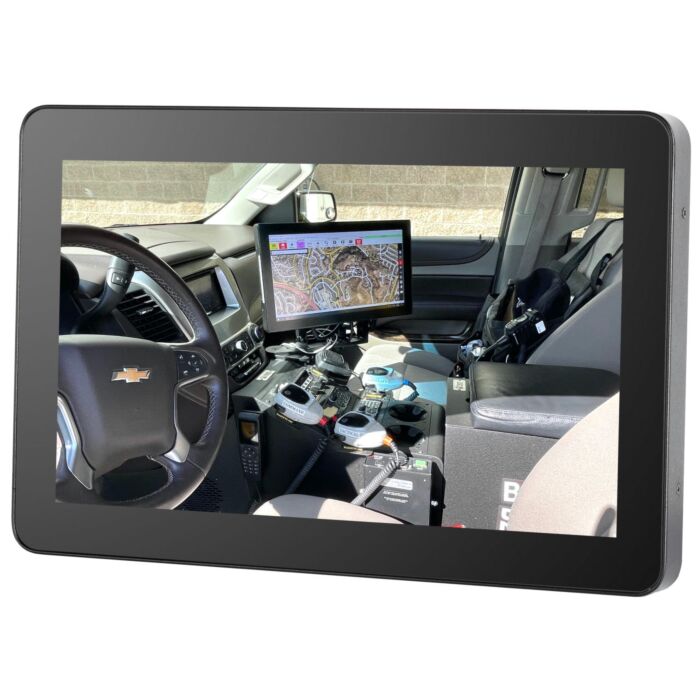

Tru-Vu SRMHTP-15.6G-36A 15.6" Sunlight Readable Rugged P-Cap Industrial Touch Screen Monitor
The Tru-Vu SRMHTP-15.6G-36A is a 15.6-inch sunlight readable touch screen designed for demanding industrial environments. Featuring an ultra-bright 1,500-nit display with a 16:9 aspect ratio, it delivers crystal-clear images even under direct sunlight or harsh ambient lighting. The LED backlight technology ensures long-life performance and brilliant clarity in outdoor or high-glare applications.
Engineered for durability, the Tru-Vu SRMHTP-15.6G-36A includes a rugged aluminum enclosure treated with TRU-Tuff reinforcement, ensuring superior shock and vibration resistance. With an IP65 front panel rating, lockable controls, and automatic restart after power loss, this industrial-grade display is built to perform reliably in mission-critical operations across manufacturing, transportation, and outdoor systems.
Features:
- 15.6-inch Full HD LCD with LED backlight
- 1,500 nits brightness for direct sunlight visibility
- Projected capacitive (P-Cap) multi-touch
- Industrial-grade TRU-Tuff construction
- Auto restart after power loss
- Zero-bezel front and aluminum rear design
- Wide operating temperature (-4°F to 158°F)
- IP65 front panel for water and dust resistance
- Multiple inputs: HDMI, DVI, DisplayPort
- 3-year warranty with TAA compliance
Applications:
- Outdoor Kiosk
- Factory Automation
- Marine Control
- Vehicle Systems
- Military Display
- Mining Equipment
| Display Size | 15.6" Color LCD with LED Backlight |
| Touch Technology | P-Cap (Projected Capacitive) |
| Touch Interface | USB |
| Resolution | 1920x1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Brightness | 1,500 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 25 Trf |
| Video Inputs | DVI, HDMI, DisplayPort |
| Audio | Rear Speakers |
| Control Type | OSD via Side Pushbuttons |
| Power Requirement | 9–36 VDC (2.5mm Locking Connector) |
| Power Consumption | 25 Watts |
| Enclosure | Zero-Bezel Front, Aluminum Rear |
| IP Rating | Front: IP65, Rear: IP30 |
| Mounting | 100x100mm VESA Holes (M4x6mm Screws) |
| Operating Temperature | -4°F to +158°F (-20°C to +70°C) |
| Humidity | 5%–90% RH |
| Shock | 50G (20 msec, ½ sine) |
| Vibration | 1.5G RMS, 10–200 Hz |
| Dimensions (W x H x D) | 15.0" x 10.2" x 2.0" (381.0 x 259.1 x 50.8 mm) |
| Weight | 5.85 lbs (2.66 kg) |
| Protective Glass | Anti-Glare |
| Warranty | 3 Years |
