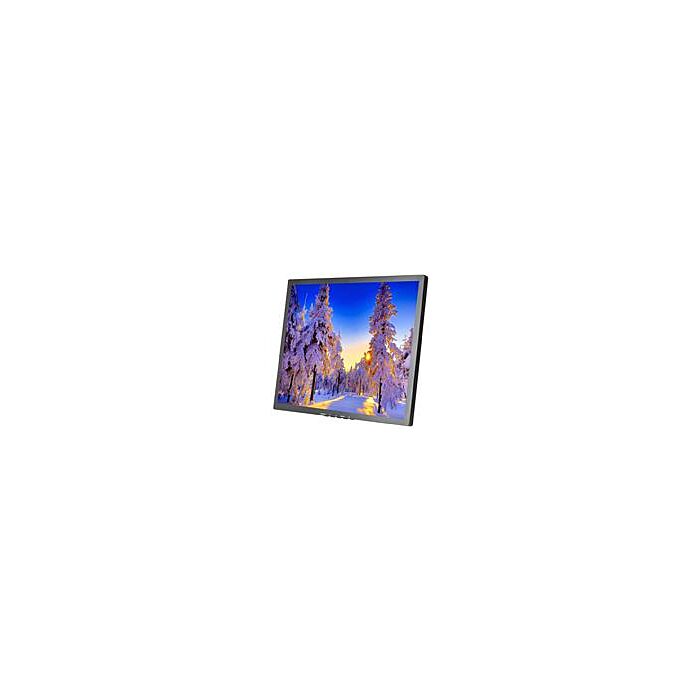

Tru-Vu SRMHOB-15B 15” Sunlight Readable Optically Bonded Monitor

*Product is discontinued, Replacement Option: SRMHOB-15U-36

The SRMHOB-15B Sunlight Readable Optically Bonded LCD monitor is designed to operate in direct bright sunlight, or in other high ambient-light conditions.

SKU
SRMHOB-15B-Truvu

The SRMHOB-15B utilizes state-of-the-art LED backlights to produce over 2,200 nits of brightness. This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen. The Optical Bonding eliminates internal reflections, improves contrast ratio, and protects the LCD panel. The SRMHOB-15B Sunlight Readable monitor is ideal for use in a wide range of industrial, law enforcement, aviation, marine, military, inspection, advertising, material handling (cranes) and transportation applications where viewability in direct bright sunlight is crucial.

All TRU-Vu industrial LCD monitors are specifically designed for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.

Features:

  • Produces Clear, Sharp Images Even in Direct Bright Sunlight
  • 2,200 nits Brightness
  • Optical Bonding For Increased Contrast Ratio
  • LED Backlights
  • TRU-Tuff Ensures maximum shock and vibration resistance
  • Protective Anti-Glare Glass • Internal Speakers
  • 3 Year Warranty

  • Applications:

  • Industrial
  • Law Enforcement
  • Aviation
  • Marine
  • Military
  • Inspection
  • Advertising
  • Material Handling (Cranes)
  • Transportation Applications
  •
    SRMHOB-15B
    LCD Panel 15” Color TFT LCD Monitor
    Resolution 1024 x 768 (XGA)
    Backlights LED
    Viewable Area 11.97”(W) x 8.98”(H) (304.03 x 228.09 mm)
    Pixel Pitch 0.297mm x 0.297mm
    Display Colors 16.2 M
    Aspect Ratio 4:3
    Brightness
    2,200 nits
    Contrast Ratio
    700:1
    Viewing Angle
    170° (H) x 160° (V)
    Response Time 8 msec Trf
    Control OSD (On-Screen Display) via Front Panel Pushbuttons  (can be locked)
    Video Inputs VGA, Composite (BNC Loop-Thru) NTSC/PAL Auto-Recognition
    In/Output Impedance 75Ω/Auto Terminating Output
    Power Requirement 12 VDC (90-240 VAC with Included Power Brick)
    Power Consumption 50 Watts
    Enclosure ABS
    Mounting Via 75x75mm Rear VESA Hole Pattern
    Operating Temperature -22° to 185°F (-30° to 85° C)
    Humidity 5-90% RH
    Shock 50 G (20 msec, 1 / 2 sine)
    Vibration 1.5G RMS 10-200 HZ
    Dimensions 13.7” (W) x 10.9” (H) x 1.5” (D) (347.97 (W) x 276.86 (H) x 38.09 (D) mm)
    Weight 6.2 lbs. / 2.8 kg
    Warranty 3 Years
