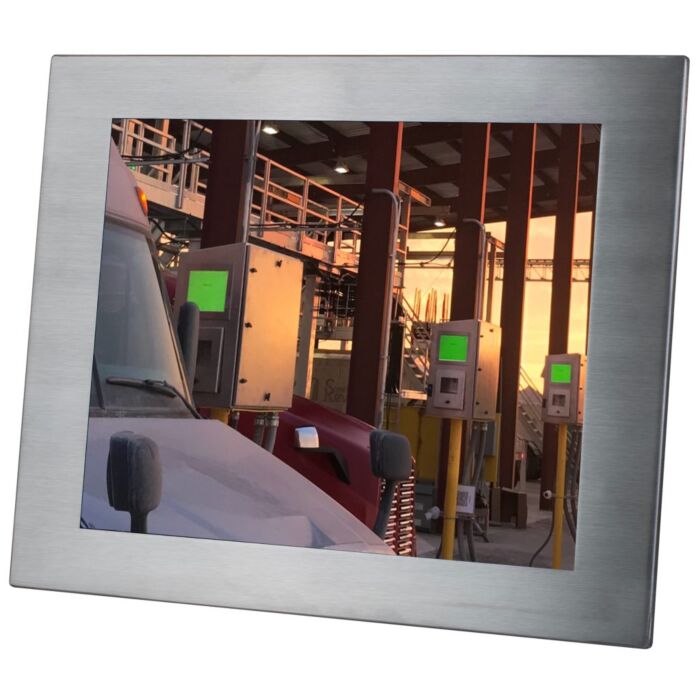

Tru-Vu SRMHOBW-13.3U (SRMHOBW133U) 13.3" Waterproof Sunlight Readable Optically Bonded LCD Monitor

Tru-Vu SRMHETRWP-15C 15" Sunlight Readable Waterproof Touch Screen Monitor

Elevate your industrial workspace with the Tru-Vu SRMHETRWP-15C, 15" Sunlight Readable Waterproof Touch Screen Monitor. Designed for extreme conditions, it offers 1500 nits brightness, 5-wire resistive touch, and a rugged stainless steel enclosure. Perfect for military, manufacturing, and machine vision applications. Explore clarity in harsh environments today!
SKU
SRMHETRWP-15C

Experience Clarity in Harsh Environments with SRMHETRWP-15C

Discover the Tru-Vu SRMHETRWP-15C, a 15" outdoor touch screen panel mount monitor engineered for demanding industrial and machine vision applications. With a remarkable 1500 nits brightness and 5-wire resistive touch technology, it delivers clear, sharp images even in direct sunlight. The rugged stainless steel enclosure, NEMA 4X/IP65 rating, and TRU-Tuff treatment ensure durability in extreme conditions, with an operating temperature range from -22°F to +185°F. This high-brightness display is not only bright but also compatible with Automation Direct HMI.

Ideal for military, law enforcement, manufacturing, and more, this weatherproof touch screen monitor excels in inspection, marine, oil & gas, and transportation sectors. The panel mount design allows flush installation in panels, cabinets, doors, or walls, making it impervious to liquids and corrosion. With a 3-year warranty and an ability to withstand 50,000 hours of operation, the SRMHETRWP-15C is a reliable solution for outdoor use. Enhance your industrial workspace with this rugged, high-performance monitor that thrives in challenging environments.

Features:

  • Produces Clear, Sharp Images Even in Direct Bright Sunlight
  • 5-Wire Resistive Touch Screen
  • 1,500 nits Brightness
  • Automatic Ambient Light Sensor
  • Waterproof Panel-Mount Enclosure; NEMA 4X/IP65, Stainless Steel LCD Monitor
  • -22° to +185°F Operating Temperature
  • 9-36 VDC
  • Auto Re-Start After Power Loss
  • Compatible with Automation Direct HMI
  • Lockable On-Screen Display Controls
  • 3 Year Warranty

Applications:

  • Military and law enforcement
  • Manufacturing and industrial settings
  • Inspection and machine vision
  • Marine and offshore environments
  • Oil & gas sectors
  • Transportation and logistics industries
SRMHETRWP-15C
LCD Panel 15” Color TN LCD Panel (LED Backlights)
Touch Technology 5-Wire Resistive Touch with UV coating on front glass
Touch Interface USB
Resolution 1024 x 768 (XGA)
Viewing Area 11.97” (W) x 8.98” (H) (304.12 x 228.09 mm)
Pixel Pitch
0.297mm
Display Colors
16.2 Million
Aspect Ratio
4:3 Widescreen
Brightness
1,500 nits
Contrast Ratio
700:1
Viewing Angle 160° (H) x 150° (W)
Response Time 8 msec Trf
Control OSD (On-Screen Display) via Rear Panel Pushbuttons
Video Inputs VGA and DVI-D
Ambient Light Sensor Standard
Power Requirement 9-36 VDC (2.5mm Connector)
Power Consumption 22 Watts
Enclosure Stainless Steel Panel-Mount (Rear Clamp)
Enclosure Rating NEMA 4X / IP65 Front
Operating Temperature/Humidity -22˚ to +185˚F (-30 to +85˚C) - 8-90%RH
Shock 50 G (20 msec, ½ sine) ; 1.5G RMS 10-200 HZ
Dimensions 15.98” (W) x 12.39” (H) (405.80 x 314.60 mm)
Weight 11.87 lbs. (5.39 kg)
Warranty 3 Years
