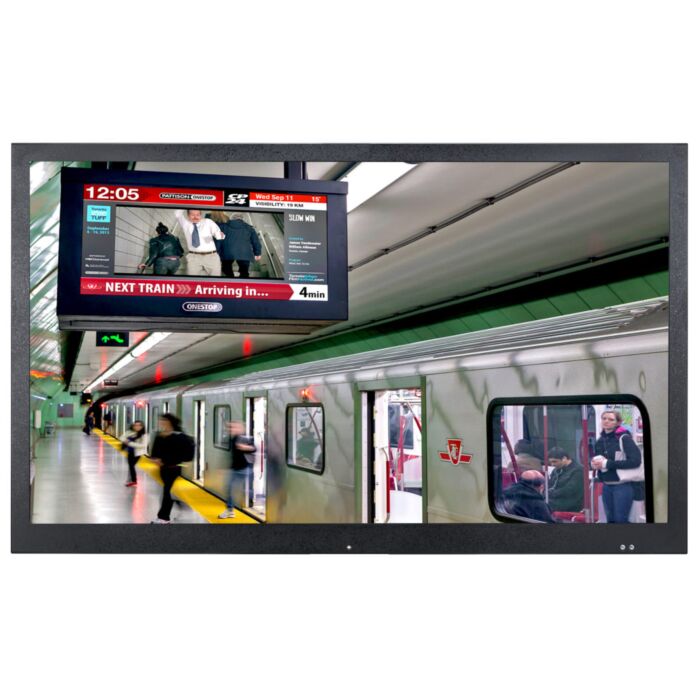

Tru-Vu SRMH-32Z 32" Sunlight Readable LCD Display

Elevate your visual experience with the Tru-Vu SRMH-32Z, a 32" Sunlight Readable LCD Display boasting 1500 nits brightness and industrial durability. Ideal for industrial and machine vision applications. Enhance clarity, withstand harsh conditions, and explore customization options. Invest in reliability with a 3-year warranty.
SKU
SRMH-32Z

Unmatched Clarity in Harsh Environments

Designed to surpass industry standards, the Tru-Vu SRMH-32Z is a 32" Sunlight Readable LCD Display, setting a new benchmark in visual performance for industrial and machine vision applications. With a remarkable 1500 nits brightness and Full HD resolution (1920 x 1080), this display ensures unparalleled clarity, even in direct sunlight or high ambient-light conditions.

Crafted with precision, the SRMH-32Z features TRU-Tuff technology, utilizing industrial-grade components, RTV silicone, ThreadLock, and secure wiring. The rugged steel enclosure, available in aluminum as well, guarantees maximum shock and vibration resistance, making it an ideal choice for demanding environments. The inclusion of an HD-SDI input not only enhances versatility but also supports longer transmission distances.

Whether in frigid cold or blazing heat, the SRMH-32Z operates flawlessly, withstanding temperatures from -4°F (-20°C) to 140°F (60°C). Deployed globally in diverse industries such as military, law enforcement, manufacturing, and beyond, this display has proven its reliability. Backed by a 3-year warranty, the Tru-Vu SRMH-32Z ensures years of dependable service.

Features:

  • 1,500 nits Brightness
  • Full HD Resolution 1920 x 1080
  • TRU-Tuff Treatment for Maximum Shock/Vibration Resistance
  • Auto Re-Start After Power Loss
  • Lockable On-Screen Display (OSD) Controls
  • Can Be Customized to Meet Your Needs
  • 3-Year Warranty

Applications:

  • Manufacturing Plants
  • Military and Law Enforcement
  • Construction & Heavy Equipment
  • Digital Signage
  • Mass Transit
  • Sports Stadiums
SRMH-32Z
LCD Panel 32" Color MVA Panel
Resolution 1920 x 1080 (Full HD)
Viewing Area 27.50” (W) x 15.47”(H) (698.4 x 392.85mm)
Pixel Pitch
0.364mm x 0.364mm
Display Colors
16.7 Million
Aspect Ratio
16:9 Widescreen
Brightness
1,500 nits
Contrast Ratio
3,000:1
Viewing Angle 178° (H) x 178° (W)
Response Time 8 msec (gray to gray)
Control OSD (On-Screen Display) via Rear Panel Push Buttons or Remote Control
Video Inputs VGA, HDMI, HD-SDI, Loop-Thru, BNC Loop-Thru
Ambient Light Sensor Standard
Power Requirement 24 VDC or 90-240 VAC
Power Consumption 75 Watts at 24VDC
Enclosure Painted Steel
Mounting Rear VESA Mounting 100x100mm/200x200mm (M4 x 6mm Screws)
Operating Temperature/Humidity -32° to 122°F (0° to +50°C)
Shock 50 G (11 msec 1/2 sine)
Vibration 1.5G RMS, 10-300 Hz
Dimensions 28.60” (W) x 17.04” (H) x 3.46” (D) (726.20 x 433 x 87.90 mm)
Weight  34.5 lbs (14.65 kg)
Warranty 3 Years
