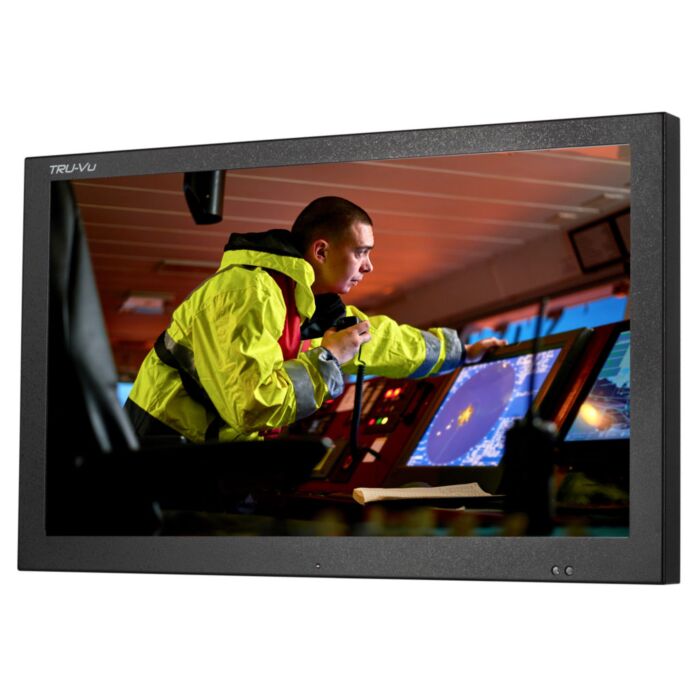

Tru-Vu SRMH-21.5Z 21.5" High Brightness Monitor
*Please note this product is subject to tariff fee*
Discover unparalleled brightness and durability with the Tru-Vu SRMH-21.5Z—ideal for industrial and machine vision applications. Customize your display today for reliable performance backed by a 3-year warranty.Unmatched Brightness and Durability
In the realm of high brightness displays, the Tru-Vu SRMH-21.5Z stands out with its 21.5" screen, boasting an impressive 1,500 nits of brightness, making it true sunlight readable. The 16:9 aspect ratio and full HD resolution deliver crystal-clear images, even in direct sunlight. Designed for industrial and machine vision applications, these rugged monitors undergo the TRU-Tuff treatment, ensuring maximum shock and vibration resistance. With an HD-SDI input for extended transmission distances, these monitors are customizable to meet specific needs.
Operating in a wide temperature range, from 14°F to 122°F, the steel enclosure guarantees reliable performance in extreme conditions, with a typical MTBF of 50,000 hours. Applications span across military, law enforcement, entertainment, inspection, oil and gas, transportation, manufacturing, and drone industries. The SRMH-21.5Z series is backed by a 3-year warranty, offering customers confidence in long-term reliability. Elevate your industrial and machine vision experience with the Tru-Vu SRMH-21.5Z, the epitome of high brightness monitors.
Features:
- True Sunlight Readable Monitor
- 1,500 nits Brightness
- TRU-Tuff Ensures Maximum Shock & Vibration Resistance
- Auto Re-Start After Power Loss
- Lockable On-Screen Display (OSD) Controls
- Can Be Customized To Meet Your Needs
- 3-Year Warranty
Applications:
- Military and Law Enforcement
- Entertainment
- Inspection
- Oil and Gas
- Transportation
- Manufacturing
- Drones and UAVs
- Kiosk Displays
| SRMH-21.5Z | |
| LCD Panel | 21.5” Color MVA Panel; LED Backlight |
| Resolution | 1920 x 1080 (1080p/60 Full HD) |
| Viewable Area | 18.76” x 10.55” (476.6 x 268.1 mm) |
| Pixel Pitch | 0.248mm |
| Display Colors | 16.7 M |
| Aspect Ratio | 16:9 |
| Brightness | 1,500 nits |
| Ambient Light Sensor | Standard |
| Contrast Ratio | 5,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 16 msec Trf |
| Control | OSD (On-Screen Display) via Pushbuttons |
| Video Inputs | HDMI, VGA, HD-SDI Loop-Thru, Composite BNC Loop-Thru |
| Sleep Mode | Yes |
| Power Requirement | 12 VDC (2.5mm Connector) / 90-240 VAC with included power brick |
| Power Consumption | 55W |
| Enclosure | Painted Steel |
| Mounting | 100 x 100 mm Rear VESA Mount Holes |
| Operating Temperature | 14° to 122° F (-10 to 50° C); Humidity: 5-90% Non-Condensing |
| Shock | 50G, Half-sine Wave, 20ms, X/Y/Z |
| Vibration | Acceleration: 1.5 G RMS; Random Wave; 10-200Hz; 30 mins Per Axis (X,Y,Z) |
| Dimensions | 19.71”(W) x 12.72” (H) x 1.93” (D) 500.6 (W) x 323.2 (H) x 49.0 (D) mm |
| Weight | 9.24 lbs. (4.19kg) |
| Warranty | 3 Years |
