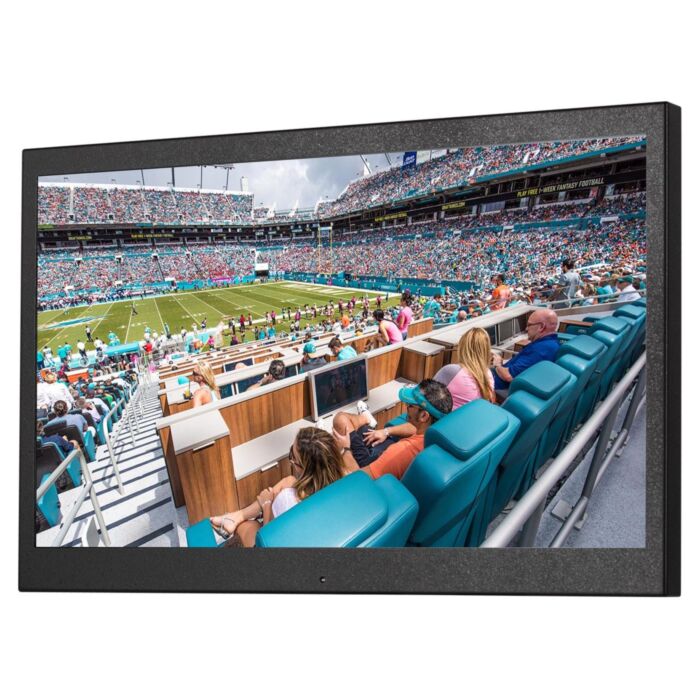

Tru-Vu SRMH-15.6Z-36 15.6" 1,500 nits Brightness Monitor
The Tru-Vu SRMH-15.6Z-36 delivers exceptional clarity in direct sunlight with a powerful 1,500 nits LED backlight. Designed for high ambient light environments, this 15.6” Full HD monitor ensures sharp and vibrant visuals even under the brightest conditions. Its 1920 x 1080 resolution, wide viewing angles, and multiple input options (HDMI, HD-SDI, VGA, Composite) make it ideal for professional and industrial use.
Built with true industrial-grade components, the SRMH-15.6Z-36 features the TRU-Tuff treatment for maximum shock and vibration resistance. The rugged steel enclosure and extended temperature range (-22°F to +185°F) allow dependable performance in mission-critical applications. Whether in outdoor operations, vehicles, ships, or security systems, this TAA-compliant display is built to last.
Features:
- 1,500 nits ultra-bright LED backlight
- Full HD 1920 x 1080 resolution
- HDMI, HD-SDI, VGA, Composite inputs
- TRU-Tuff shock and vibration resistance
- Ambient light sensor for auto-brightness adjustment
- Wide 170° viewing angles
- Operates from -22°F to +185°F
- Industrial-grade steel enclosure
- TAA compliant with 3-year warranty
Applications:
- Outdoor monitoring
- Vehicle display
- Marine navigation
- Security surveillance
- Industrial control
- Public information
- Military command
| LCD Panel | 15.6” a-Si TFT-LCD, LED Backlights |
| Display Resolution | 1920 x 1080 (1080P/60 Full HD) |
| Viewable Area | 13.55” (W) x 8.5” (H) (344.16 x 215.98 mm) |
| Pixel Pitch | 0.17925 × 0.17925 mm [141 PPI] |
| Display Colors | 16.2 M |
| Aspect Ratio | 16:9 |
| Brightness | 1,500 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170° (H) x 170° (V) |
| Response Time | 13/12 ms (Typ.) (Tr/Td) |
| Control | OSD via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI, HD-SDI (Loop-Thru), Composite (BNC Loop-Thru) |
| Power Requirement | 9-36 VDC (2.5 mm Plug) |
| Enclosure | Painted Steel |
| Mounting | 75 x 75mm & 100 x 100mm Rear VESA (M4 x 6mm Screws) |
| Operating Temp | -22° to 185°F (-30° to +85°C) |
| Humidity | 5-90% RH |
| Shock | 50 G (20 msec, 1/2 sine) |
| Vibration | 1.5G RMS 10-200 Hz |
| Dimensions | 14.52” (W) x 9.36” (H) x 2.07” (D) (368.8 x 237.7 x 51.5 mm) |
| Warranty | 3 Years |
