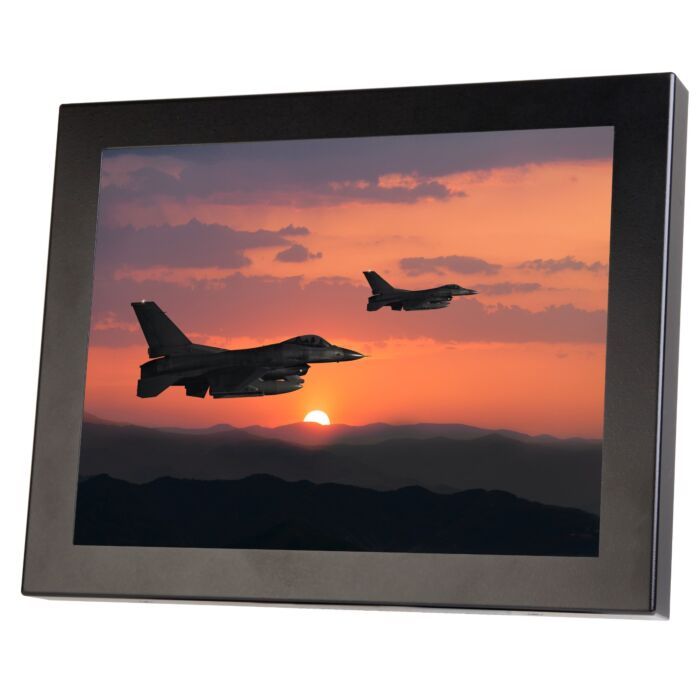

Tru-Vu SRM-8.4S 8" Sunlight Readable LCD Monitors
*Product is discontinued, Replacement Option: SRM-8.4B
The SRM-8.4 Series Sunlight Readable LCD monitors are designed for use in direct bright sunlight, or in other high ambient-light conditions.
They utilize state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen.
The SRM-8.4 Series Sunlight Readable monitors are built with industrial-grade components, and receive our exclusive Tru-Tuff treatment. This process includes RTV on connectors and critical components; all wires dressed, tie-wrapped and secured; and thread-lock on all screws. This, plus the rugged powder-coated steel enclosure, ensures maximum shock and vibration resistance. They are ideal for a wide range of demanding applications including industrial, military, law enforcement, aviation, marine, inspection, surveying, cranes, oceanic and transportation. TRU-Vu monitors are backed by our full 3-Year Warranty.
Features:
Applications:
| Model |
SRM-8.4S
|
||||
| LCD Panel |
8.4” LED Backlight LCD
|
||||
| Resolution |
800 x 600 (SVGA)
|
||||
| Viewable Area |
6.70” (W) x 5.03” (H) (170.4 x 127.8 mm)
|
||||
| Pixel Pitch |
0.213 mm
|
||||
| Display Colors |
16.2 Million
|
||||
| Aspect Ratio |
4:3
|
||||
| Brightness |
1,000 nits
|
||||
| Contrast Ratio |
700:1
|
||||
| Viewing Angle |
160° (H) x 140° (V)
|
||||
| Response Time |
30 msec
|
||||
| Control |
OSD (On-Screen Display) via Rear Panel Pushbuttons
|
||||
| Video Inputs |
VGA, S-Video & Composite ( BNC ); NTSC/PAL (Auto-Detect)
|
||||
| Power Requirement |
12 VDC (90-250 VAC with included power adapter)
|
||||
| Power Consumption |
1 amp
|
||||
| Enclosure |
Powder-Coated Steel
|
||||
| Mounting |
75 X 75 mm VESA Hole Pattern
|
||||
| Operating Temperature |
-31º to +185º F / -35º to +85º C
|
||||
| Shock |
50G, 20ms, Half-sine wave
|
||||
| Vibration |
1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z)
|
||||
| Weight |
5 lbs. / 2.3 kg
|
||||
