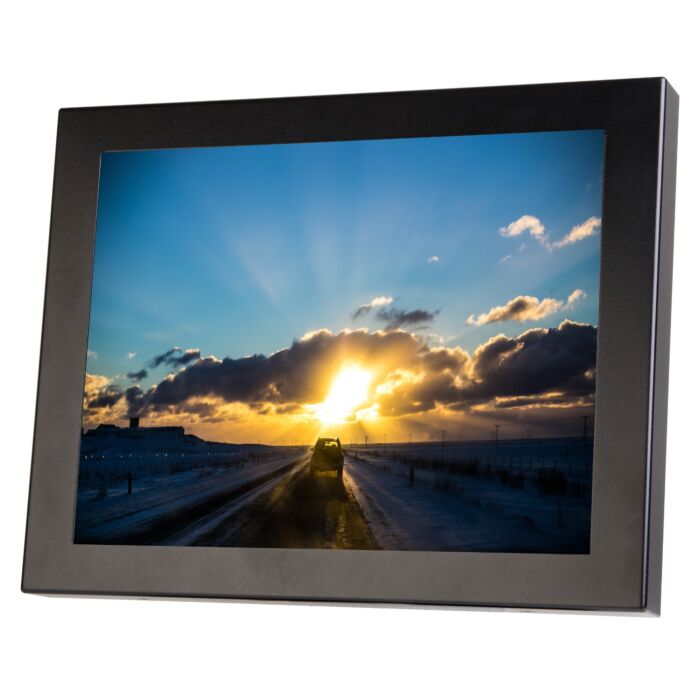

Tru-Vu SRM-8.4B 8" Sunlight Readable LCD Monitors

The SRM-8.4 Series Sunlight Readable LCD monitors are designed for use in direct bright sunlight, or in other high ambient-light conditions.

SKU
SRM-8.4B-TruVu

They utilize state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen.

The SRM-8.4 Series Sunlight Readable monitors are built with industrial-grade components, and receive our exclusive Tru-Tuff treatment. This process includes RTV on connectors and critical components; all wires dressed, tie-wrapped and secured; and thread-lock on all screws. This, plus the rugged powder-coated steel enclosure, ensures maximum shock and vibration resistance. They are ideal for a wide range of demanding applications including industrial, military, law enforcement, aviation, marine, inspection, surveying, cranes, oceanic and transportation.

Features:

  • Produces Clear, Sharp Images Even in Direct, Bright Sunlight
  • 1,000 nits Brightness
  • LED Backlights
  • TRU-Tuff Ensures Maximum Shock/Vibration Resistance
  • Lockable OSD (On-Screen Display) Controls
  • High Uniformity (90%)
  • Low EMI Noise
  • 3 Year Warranty

  • Applications:

  • Industrial
  • Military
  • Law Enforcement
  • Aviation
  • Marine
  • Inspection
  • Surveying
  • Cranes
  • Oceanic
  • Transportation
  • Model SRM-8.4B
    LCD Panel
    8.4” LED Backlight LCD
    Resolution
    800 x 600 (SVGA)
    Viewable Area
    6.70” (W) x 5.03” (H) (170.4 x 127.8 mm)
    Pixel Pitch
    0.213 mm
    Display Colors
    16.2 Million
    Aspect Ratio
    4:3
    Brightness
    1,000 nits
    Contrast Ratio
    700:1
    Viewing Angle
    160° (H) x 140° (V)
    Response Time
    30 msec
    Control
    OSD (On-Screen Display) via Rear Panel Pushbuttons
    Video Inputs
    VGA, BNC Loop-Thru, NTSC/PAL (Auto-Detect)
    Power Requirement
    12 VDC (90-250 VAC with included power adapter)
    Power Consumption
    1 amp
    Enclosure
    Powder-Coated Steel
    Mounting
    75 X 75 mm VESA Hole Pattern
    Operating Temperature
    -31º to +185º F / -35º to +85º C
    Shock
    50G, 20ms, Half-sine wave
    Vibration
    1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z)
    Weight
    5 lbs. / 2.3 kg
