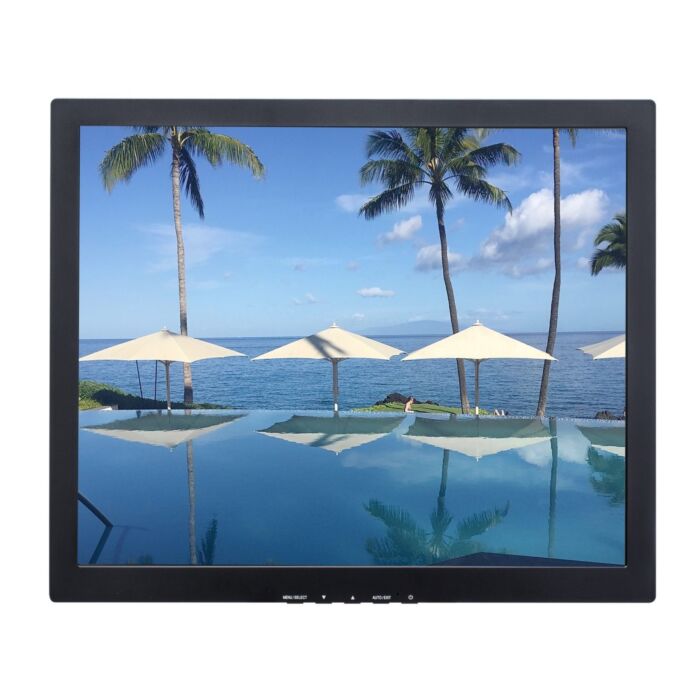

Tru-Vu SRM-17S-DB-H (SRM17SDBH) 17” Sunlight Readable Monitor
*Please note this product is subject to tariff fee*
The SRM-17S-DB-H 17″ High Brightness Display Series operates in nearly any environmental conditions.The SRM-17S-DB-H are 17″ sunlight readable monitors. They feature at least 1000 nits brightness and a 4:3 aspect ratio. We design the SRM-17 Series monitors for use in direct sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,000 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is amazingly bright screen. This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen.
The SRM-17S-DB-H Sunlight Readable monitors are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The ABS enclosure will ensure shock and vibration resistance for this rugged 1000 nit monitor.
Features:
- 1,000 nits Brightness Produces Clear, Sharp Images Even in Direct Bright Sunlight
- TRU-Tuff Ensures Maximum Shock & Vibration Resistance
- High Resolution: 1280 x 1024 (SXGA)
- Internal Rear Speaker
- Lockable On-Screen Display (OSD) Controls
- Dim-To-Black Function and Auto Re-Start After Power Loss
Applications:
- R/C helicopters and planes
- Aerial Surveying
- Mapping and Photography
- FPV systems and Ground Stations
- Commercial and Military Helicopters and Airplane Applications
- Security/Surveillance
SRM-17S-DB-H | |
| LCD Panel | 17” Color LCD; LED Backlights |
| Resolution | 1280 x 1024 (SXGA) |
| Viewable Area | 13.30” (W) x 10.64” (H) (337.9 x 270.3 mm) |
| Pixel Pitch | 0.264 (H) x 0.264 (V) |
| Display Colors | 16.7 Million |
| Aspect Ratio | 4:3 (5:4) |
| Brightness | 1,000 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 160° (H) x 140° (V) |
| Response Time | 5 msec Trf |
| Control | OSD (On-Screen Display) via Front Panel Pushbuttons |
| Video Inputs | VGA, S-Video, Composite (BNC) NTSC/PAL |
| Audio | Rear Speakers |
| Power Requirement | 12 VDC (2.1mm Barrel Plug); 90-240 VAC via Included Power Brick |
| Power Consumption | 50 Watts |
| Enclosure | ABS |
| Mounting | 75x75mm Rear VESA Hole Pattern (Optional Tabletop Base) |
| Operating Temperature | -30˚ to +185˚F (-35˚ to +85˚C) |
| Humidity | 5-90% RH |
| Shock | 50G, 20ms, Half-sine wave |
| Vibration | 1.5G RMS 10-200 Hz |
| Dimensions | 14.88 (W) x 12.50” (H) x 1.91” (D) (378 x 317.5 x 48.6mm) |
| Weight | 5.78 lbs. |
