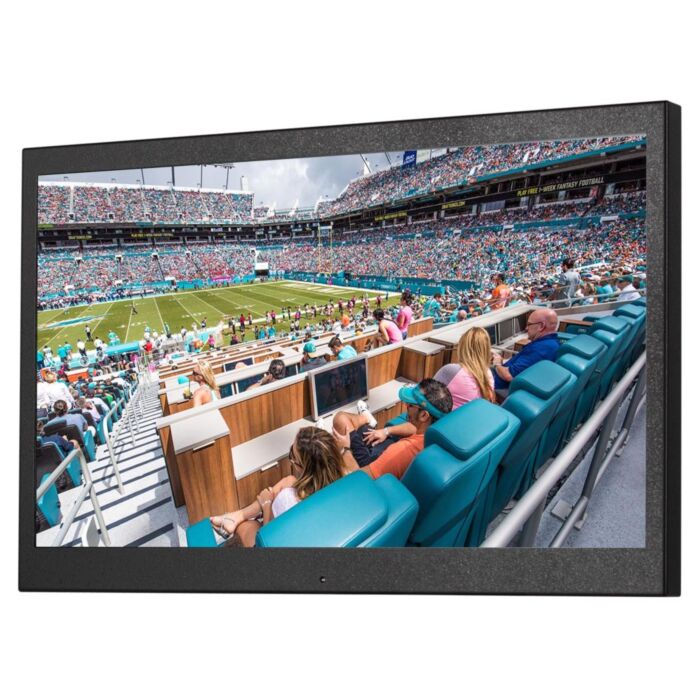

Tru-Vu SRM-17.3G-36 17.3" Sunlight Readable Monitor

Discover the TRU-Vu SRM-17.3G-36, a 17.3" Sunlight Readable Monitor with 1000 nits brightness. Rugged, customizable, and perfect for industrial and machine vision applications. Experience clarity in the harshest conditions.

Unmatched Sunlight Visibility and Rugged Performance

Introducing the TRU-Vu SRM-17.3G-36, a pinnacle in 17.3" Sunlight Readable Monitors engineered for the most demanding industrial and machine vision applications. Boasting an extraordinary 1000 nits brightness and full HD resolution (1920 x 1080), this monitor ensures unparalleled clarity, even when exposed to direct sunlight. The TRU-Tuff technology fortifies its ruggedness, employing industrial-grade components and an exclusive treatment process, making it shock and vibration resistant for reliable performance in challenging environments.

Equipped with an ambient light sensor, the display adapts its brightness automatically, while lockable on-screen display (OSD) controls provide added security. The sturdy steel enclosure enables the monitor to operate flawlessly in extreme temperatures ranging from freezing cold (32°F/0°C) to scorching heat (158°F/70°C). Deployed globally across industries such as military, law enforcement, inspection, oil and gas, transportation, and manufacturing, the SRM-17.3G-36 comes backed by a robust 3-year warranty, ensuring sustained, high-performance imaging.

In conclusion, the TRU-Vu SRM-17.3G-36 exemplifies cutting-edge technology, offering not only sunlight readability but also resilience and adaptability for diverse industrial settings. Elevate your vision capabilities with this customizable, high-brightness display, designed to withstand the rigors of industrial applications.


  • 1,000 nits Brightness
  • Produces Clear, Sharp Images Even in Direct Bright Sunlight
  • Full HD Resolution: 1920 x 1080 (1080p/60)
  • Ambient Light Sensor Adjusts Screen Brightness Automatically
  • Lockable On-Screen Display (OSD) Controls with Auto Re-Start After Power Loss
  • TRU-Tuff Ensures Maximum Shock/Vibration Resistance
  • Can Be Customized to Meet Your Needs
  • 3-Year Warranty


  • Industrial Machine Vision
  • Military and Law Enforcement
  • Inspection and Oil & Gas
  • Transportation and Drones
  • Manufacturing and Pipeline
LCD Panel 17.3” Color AHVA Panel; LED Backlights
Resolution 1920 x 1080 (1080P/60)
Viewable Area 15.03” (W) x 8.42” (H) (381.8 x 214.01mm)
Pixel Pitch 0.1989mm
Display Colors 16.2 M
Aspect Ratio 16:9
Brightness 1,000 nits
Contrast Ratio 600:1
Viewing Angle 160° (H) x 160° (V)
Response Time 40 msec Trf
Control OSD (On-Screen Display) via Rear Panel Pushbuttons
Video Inputs DVI, HDMI, DisplayPort
Power Requirement 9-36 VDC (Includes 2.5 mm Locking Pigtail)
Power Consumption 32W
Enclosure Painted Steel
Mounting VESA 75x75 mm Pattern
Operating Temperature 32º to 158º F (0º to 70ºC)
Humidity 5-90% RH
Shock 50 G (20 msec, ½ sine)
Vibration 1.5G RMS 10-200 HZ)
Dimensions 16.06" (W) x 10.24" ( H) x 1.54 (D) 408 (W) x 260 (H) x 39 (D)mm
Weight TBD
Warranty 3 Years
