Tru-Vu SRM-10.4B 10.4″ Sunlight Readable Monitors (Discontinued)
SKU
SRM-10.4B-TruVu
Quick Overview
*Product is Discontinued, Call For Replacement Options
Sunlight Readable; 1,000 nits Brightness, VGA, BNC Loop-Thru, NTSC/PAL, 12 VDC/100-240 VAC

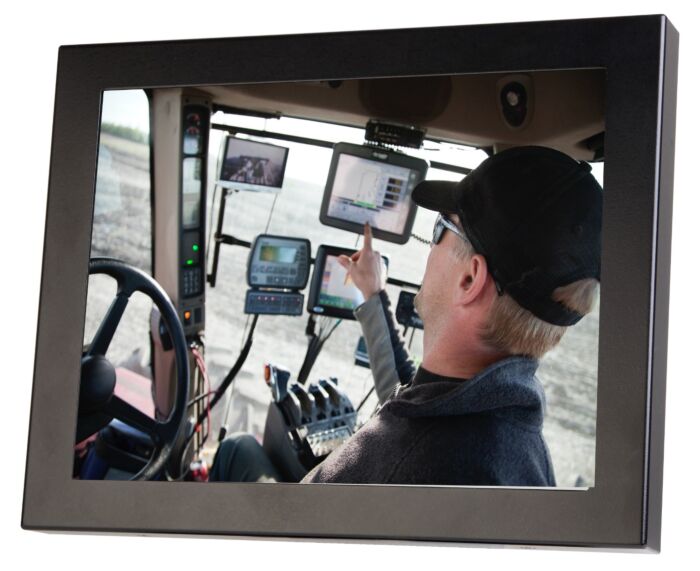

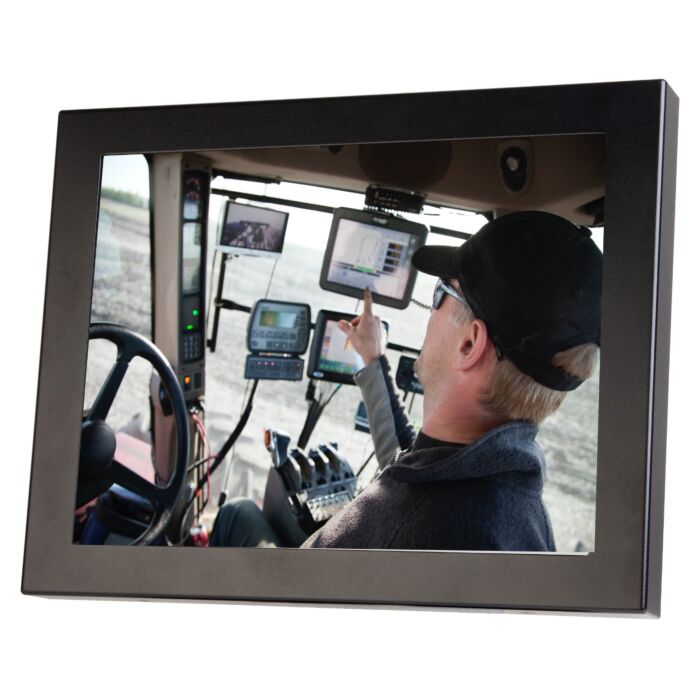

Tru-Vu SRM-10.4B 10.4″ Sunlight Readable Monitors
Features:
Applications:
| Model | SRM-10.4B |
| LCD Panel | 10.4″ LED Backlight LCD |
| Resolution | 800 x 600 (SVGA) |
| Viewable Area | 8.3″ (W) x 6.2″ (H) (211.2 x 158.4 mm) |
| Pixel Pitch | 0.264 mm |
| Display Colors | 16.2m |
| Aspect Ratio | 4:3 |
| Brightness | 1,000 nits |
| Contrast Ratio | 700:1 |
| Viewing Angle | 160º (H) x 140º (V) |
| Response Time | 30 msec |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons |
| Video Inputs | VGA, BNC Loop-Thru, NTSC/PAL Auto-Recognition |
| Power Requirement | 12 VDC (90-240 VAC with included power brick) |
| Power Consumption | 13 W (1.08 A @ 12 VDC) |
| Enclosure | Powder-Coated Steel |
| Mounting | 75 x 75 mm VESA |
| Operating Temp | -31⁰ to +185⁰ F / -35⁰ to +85⁰ C |
| Shock | 50G, 20ms, Half-sine wave |
| Vibration | 1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z) |
| Dimensions | 10.1″ (W) x 7.9″ (H) x 1.7″ (D) / 256.53 (W) x 200.66 (H) x 43.18 (D) mm |
| Weight | 3.8 lbs. / 1.7 kg |
