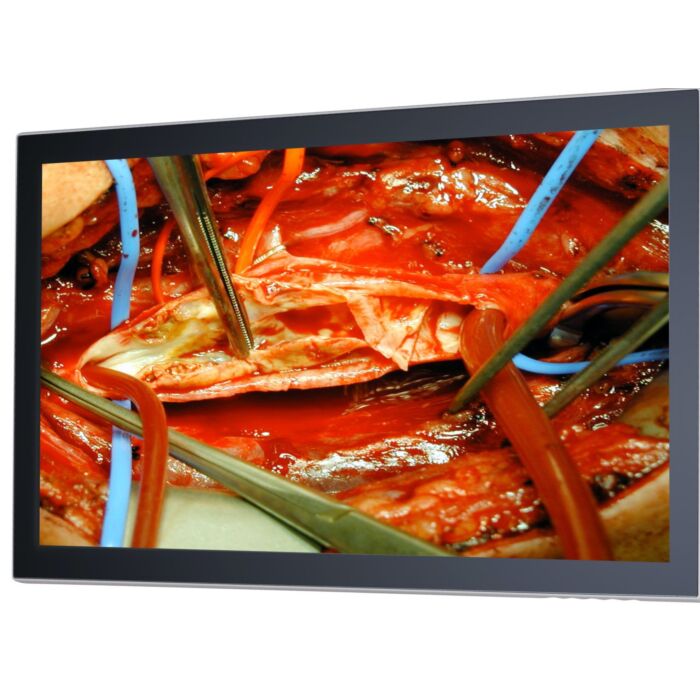

Tru-Vu MZBTP-21.5R-12 OEM 21.5" Medical Touch Screen Monitor
The Tru-Vu MZBTP-21.5R-12 is a 21.5" OEM medical touch screen monitor, engineered for hospital, surgical, and clinical use where reliability and hygiene are vital. Built with projected capacitive (P-Cap) touch technology, it supports up to 10-point multi-touch and offers precise, lag-free performance even when used with surgical gloves or in environments with moisture and contaminants. The bezel-less black ABS enclosure enables effortless cleaning, minimizing infection risk and meeting rigorous medical hygiene standards—ideal for operating rooms, labs, and clean rooms.
Designed for professional healthcare settings, this display delivers Full HD resolution (1920 x 1080), super-wide viewing angles (178° x 178°), and superior image quality to optimize diagnostic accuracy and workflow efficiency. With fanless operation, built-in speakers, easy VESA mounting, and robust shock/vibration resistance, the Tru-Vu MZBTP-21.5R-12 meets the needs of modern medical environments while providing lasting durability and quiet performance.
Features:
- 21.5" Full HD (1920 x 1080) P-Cap touch screen, up to 10 touch points
- Easy-to-clean, hygienic bezel-less ABS enclosure
- Fanless for quiet, reliable operation in sterile environments
- Multiple video inputs: VGA, HDMI, DisplayPort
- Wide 178° viewing angle, high brightness, and contrast ratio
- Dual rear speakers for alarms/alerts
- Auto re-start after power loss
- Rear VESA mounting (100x100mm)
- TAA compliant; 3-year warranty
- RoHS & REACH certified
Applications:
- Surgical Displays
- Diagnostic Imaging
- Operating Rooms
| Model | Tru-Vu MZBTP-21.5R-12 |
| LCD Panel | 21.5” Color AHVA, LED Backlights |
| Touch Screen | Projected Capacitive, 10 Touch Points, Anti-Glare |
| Touch Interface | USB |
| Resolution | 1920 x 1080 (Full HD) |
| Viewable Area | 18.76” W x 10.55” H (476.6 x 268.1 mm) |
| Pixel Pitch | 0.248mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 |
| Brightness | 350 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 22 ms (Trf) |
| Control | OSD via Capacitive Buttons (Front Edge) |
| Video Inputs | VGA, HDMI, DisplayPort |
| Audio | Dual Rear Speakers |
| Power Requirement | 12VDC |
| Power Consumption | 15W |
| Enclosure | Black ABS, Zero-Bezel Design |
| Enclosure IP Rating | Front: IP65 | Rear: IP30 |
| Mounting | 100 x 100mm Rear VESA, Optional Base |
| Operating Temperature | 32° to 122° F (0° to 50° C) |
| Humidity | 5-90% RH |
| Shock / Vibration | 50G/1.5G (IEC Spec) |
| Certifications | RoHS, REACH |
| Dimensions | 20.72” x 12.65” x 2.25” (526.2 x 321.2 x 57.1 mm) |
| Weight | 10.15 lbs (4.6 kg) |
| Warranty | 3 Years |
