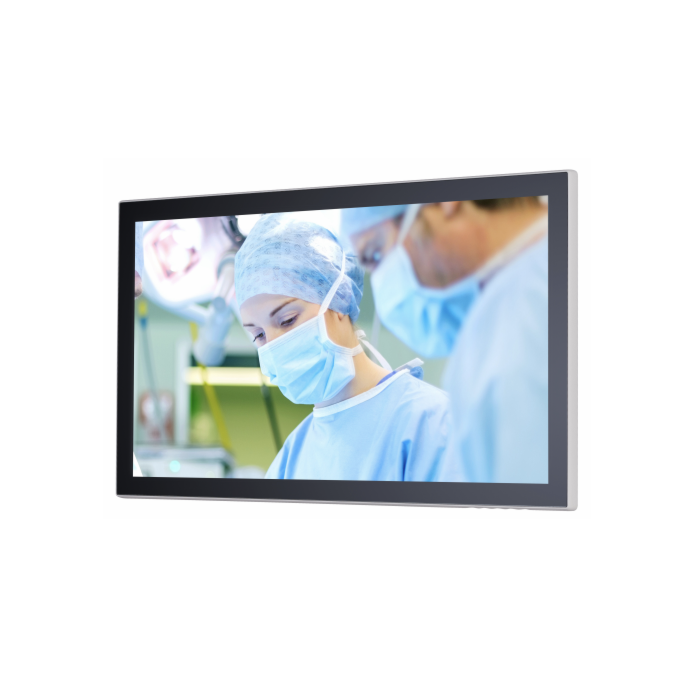

Tru-Vu MMZBTP-23.8G-X Medical-Grade Touch Screen LCD Display
The TRU-Vu MMZBTP-23.8G-X are 23.8” Medical-Grade Projected Capacitive Touch Screen monitors.
SKU
MMZBTP-23.8G-X-Truvu
The MMZBTP-23.8G-X monitors conform to UL 60601-1-1, and 1-2. The projected capacitive touch technology enables multi-touch; it can be activated via dual fingers that are exposed, or in a surgical glove. The screen is unaffected by dirt, grease or moisture on the glass surface. The sleek edge-to-edge glass front face, without a raised edge bezel, is both stylish and functional: it is easy to clean and eliminates contamination build-up under a bezel, as with standard-type housings.
Features:
Applications:
| Model | MMZBTP-23.8G-X |
| LCD Panel | 23.8” Color LCD; LED Backlights |
| Touch Screen | Projected Capacitive, 10 Touch Points |
| Touch Interface | USB |
| Resolution | 1920 x 1080 (FullHD) |
| Viewable Area | 20.75” W x 11.67” H (527.2 x 296.46 mm) |
| Pixel Pitch | 0.2745mm |
| Display Colors | 16.7 Million |
| Aspect Ratio | 16:9 Widescreen |
| Brightness | 400 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 14 msec Grey to Grey |
| Control | OSD (On-Screen Display) Buttons |
| Video Inputs | DVI, HDMI, DisplayPort |
| Audio | Dual Rear Speakers |
| Power Requirement | 90-240 VAC with External Medical-Grade Power Supply and Green-Dot Power Cord |
| Power Consumption | 38W |
| Plug & Play | DDC 1/2B |
| Enclosure | White ABS Rear: Zero-Bezel Front with Anti-Glare Glass |
| Mounting | 100x100mm/ 200x100 Rear VESA Mount Holes |
| Operating Temperature | 32° to 122° F (0° x 50° C) |
| Humidity | 5-90% RH |
| Shock/Vibration | 50G (20 msec, 1/2 sine); 1.5G RMS 10-200HZ, 30 minutes each (X,Y,Z) |
| Certfications | UL: ANSI/AAMI ES60601-1 (2005/(R)2012 + A1:2012, C1:2009/(R)2012 + A2:2010/(R)2012) - Amendment 1 - Revision Date 2012/08/21;CAN/CSAC22.2 No. 60601-1:14 - Edition 3 - Revision Date 2014/03; CB: IEC 60601-1-6:2010/AMD1:2013, IEC 60601-1-6:2010, IEC 60601-1:2005/ AMD1:2012, IEC 60601-1:2005; FCC Part 18, Subpart C; CE: EN60601-1-2:2015 |
| Dimensions | 22.71” (W) x 13.58”(H) x 2.43” (D) (576.9 x 345.1 x 61.7 mm) |
| Weight | 13.2 lbs. (5.98kg) |
| Warranty | 3 Years |
