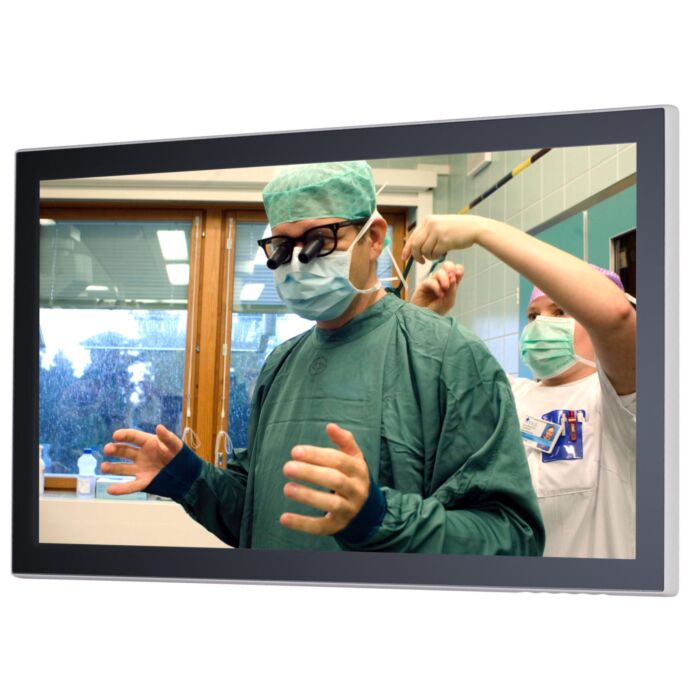

Tru-Vu MMZBTP-21.5G-XB 21.5" Medical Touch Screen Monitor, Bezel-Less Fanless Design
The Tru-Vu MMZBTP-21.5G-XB is a 21.5" medical-grade touch screen monitor designed for critical healthcare environments. Certified to UL 60601-1 Ver. 3.1 and IEC 60601-1-2 (4th Edition), this fan-less, bezel-less display provides crystal-clear 1080p Full HD resolution with super-wide 178° viewing angles for sharp, flicker-free images critical in surgical and diagnostic settings. Its projected capacitive multi-touch technology supports up to 10 simultaneous touches, operable even with surgical gloves, ensuring precise and responsive user interactions.
Built for hygienic, safe use, the monitor features a zero-bezel glass front for easy cleaning and germ control, a robust ABS enclosure available in white or black, and built-in speakers for auditory alerts. Compatible with Automation Direct HMI and medical carts, the MMZBTP-21.5G-XB ensures reliable performance with auto-restart after power loss and a 3-year warranty, making it an exceptional choice for hospital ORs, medical imaging, OEM systems, and PACS applications.
Features:
- 21.5” Full HD (1920x1080) Display
- Projected Capacitive Multi-Touch (10 Points)
- Operating with Gloves & Bare Fingers
- UL 60601-1 & IEC 60601-1-2 Certified
- White or Black Zero-Bezel ABS Enclosure
- Built-In Rear Speakers
- Auto-Restart After Power Loss
- Fan-less Design for Sterile Environment
- Compatible with Automation Direct HMI
- 3-Year Warranty & TAA Compliant
Applications:
- Hospital OR
- Medical Carts
- Imaging Systems
- Fluoroscopy Equipment
- Endoscopy Units
- OEM Medical Systems
- PACS Integration
| Model | MMZBTP-21.5G-XB |
| Panel Size | 21.5” AHVA |
| Resolution | 1920 x 1080 (Full HD) |
| Touch Technology | Projected Capacitive, 10 Touch Points |
| Touch Interface | USB |
| Viewable Area | 18.76” W x 10.55” H (476.6 x 268.1 mm) |
| Brightness | 350 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Response Time | 22 ms |
| Video Inputs | DVI-D, HDMI, DisplayPort |
| Audio | Built-in Rear Speakers |
| Power Supply | 100-240 VAC Medical-Grade Power Supply with Locking Connector |
| Power Consumption | 16.8W |
| Enclosure | Zero-Bezel Front, White or Black ABS Rear |
| IP Rating | Front: IP65, Rear: IP30 |
| Mounting | 100mm x 100mm Rear VESA |
| Operating Temperature | 32° to 122° F (0° to 50° C) |
| Humidity | 5-90% RH |
| Shock/Vibration | 50G Half-sine 20 ms; 1.5G 10-200 Hz |
| Certifications | UL 60601-1 Ver. 3.1; IEC 60601-1-2 4th Edition |
| Warranty | 3 Years |
| Weight | 10.2 lbs (4.62 kg) |
| Dimensions | 20.72” W x 12.65” H x 2.25” D (526.2 x 321.2 x 57.1 mm) |
