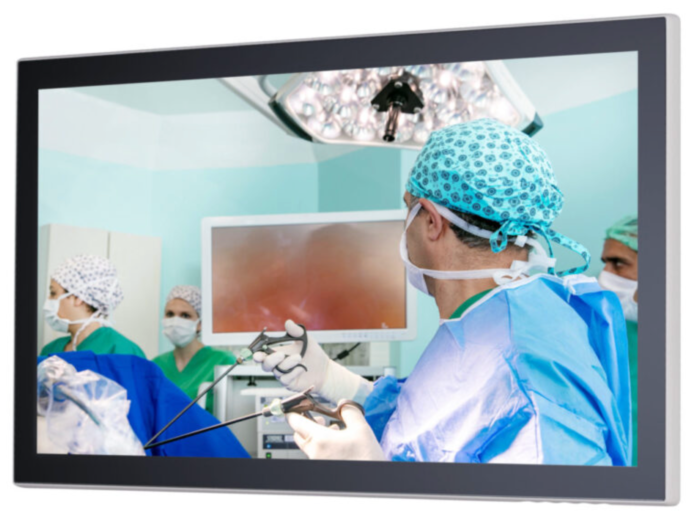

TRU-Vu MMZBTP-15.6USBC 15.6" USB-C Medical Touch Screen Monitor
The TRU-Vu MMZBTP-15.6USBC is a 15.6" USB-C medical touch screen monitor designed for hospital, clinical, diagnostic, and OEM medical equipment environments where image clarity, hygiene, touch performance, and reliability are essential. With a single USB-C interface for video, power, and touch, this compact medical-grade monitor helps simplify system integration while reducing cable clutter in operating rooms, medical carts, imaging systems, and point-of-care devices.
Built with a 1920 x 1080 Full HD display, 500-nit brightness, 1,000:1 contrast ratio, and wide 178° horizontal and vertical viewing angles, the MMZBTP-15.6USBC delivers sharp, clear, flicker-free image performance for medical imaging, PACS viewing, endoscopy, fluoroscopy, patient monitoring, and OEM medical systems. Its anti-glare glass helps improve visibility in bright clinical environments, while the fast, responsive projected capacitive touch screen supports up to 10 simultaneous touch points.
The monitor features a zero-bezel white ABS front enclosure that simplifies cleaning and supports improved safety and hygiene in medical settings. The P-Cap touch screen can be activated with exposed fingers or surgical gloves and remains usable when exposed to dirt, grease, or moisture on the glass surface. For systems that do not support USB-C video or power, the monitor also includes HDMI 1.4 video input and optional 12VDC power input.
Designed for demanding medical applications, the TRU-Vu MMZBTP-15.6USBC conforms to key medical safety and EMC standards including UL 60601-1 Edition 3.1 and IEC 60601-1-2 4th Edition. It is also TAA compliant and backed by a 3-year warranty, making it a strong choice for medical OEMs, healthcare integrators, hospitals, operating rooms, imaging carts, and clinical equipment manufacturers.
Key Features:
- 15.6" medical-grade touch screen monitor
- Single USB-C interface for video, power, and touch
- 1920 x 1080 Full HD resolution
- 500-nit brightness for clear medical image viewing
- Projected capacitive P-Cap touch screen
- Supports up to 10 simultaneous touch points
- Anti-glare glass screen treatment
- Operates with exposed fingers or surgical gloves
- Zero-bezel front design simplifies cleaning
- White ABS enclosure for medical environments
- USB-C 3.1 and HDMI 1.4 video inputs
- USB 2.0 Type-A output for powering auxiliary devices
- Built-in rear speakers
- Auto restart after power loss
- 100mm x 100mm VESA mounting pattern
- Front IP52 / rear IP30 enclosure rating
- UL 60601-1 Edition 3.1 compliant
- IEC 60601-1-2 4th Edition compliant
- TAA compliant
- 3-year warranty
Applications:
- Hospital operating rooms
- Medical carts and mobile workstations
- Medical imaging systems
- PACS display applications
- Endoscopy systems
- Fluoroscopy systems
- OEM medical equipment
- Surgical control interfaces
- Patient monitoring systems
- Clinical diagnostic systems
- Laboratory and healthcare workstations
- Medical device integration
- Healthcare touchscreen control panels
| Model | MMZBTP-15.6USBC |
| Display Size | 15.6" |
| LCD Panel | 15.6" Color AHVA with LED Backlights |
| Touch Screen Type | Projected Capacitive, 10 Simultaneous Touch Points |
| Touch Interface | USB-C 3.1 |
| Glass | Anti-Glare |
| Resolution | 1920 x 1080, 1080p/60 |
| Viewable Area | 13.55" W x 7.62" H / 344.16 x 193.59 mm |
| Pixel Pitch | 0.17925 mm |
| Display Colors | 16.2M |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 178° H x 178° V |
| Response Time | 25 msec Trf |
| Controls | OSD via pushbuttons under front edge |
| Video Inputs | USB-C 3.1 and HDMI 1.4 |
| Audio | Dual rear speakers, 8Ω / 2.5W |
| Output | USB-A 2.0 |
| Power Requirement | USB-C, requires 20V @ 3A; 12VDC optional medical-grade AC power supply |
| Power Consumption | TBD |
| Enclosure | Zero-bezel front; white ABS rear |
| Enclosure IP Rating | Front: IP52 / Rear: IP30 |
| Mounting | 100mm x 100mm rear VESA holes; optional tabletop base |
| Operating Temperature | -4°F to 158°F / -20°C to 70°C |
| Humidity | 5–90% RH |
| Shock / Vibration | 50G half-sine 20 msec; 1.5G, 10–200 Hz |
| Certifications | UL: ANSI/AAMI ES60601-1 (2005/(R)2012 + A1:2012, C1:2009/(R)2012 + A2:2010/(R)2012); CAN/CSA C22.2 No. 60601-1:14 CB: IEC 60601-1-6:2010/AMD1:2013, IEC 60601-1-6:2010, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005 |
| Dimensions | TBD |
| Weight | TBD |
| Warranty | 3 Years |
| Compliance | TAA Compliant |
