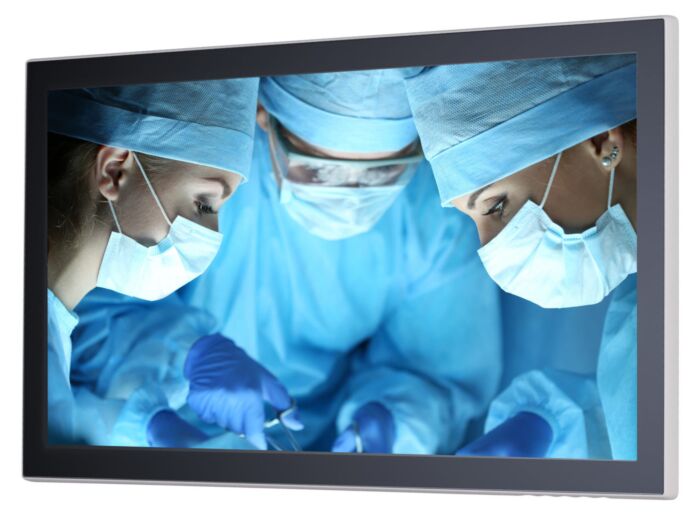

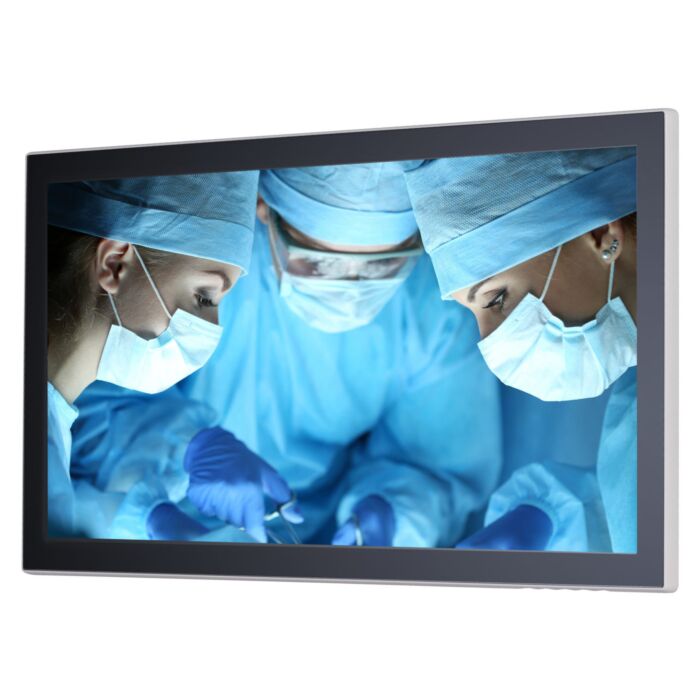

Tru-Vu MMZBTP-15.6G-XG 15.6" Medical Touch Screen Monitor
The Tru-Vu MMZBTP-15.6G-XG is a 15.6” medical touch screen monitor engineered for demanding healthcare environments, offering full HD 1920 x 1080 resolution and advanced projected capacitive multi-touch functionality up to 10 points. Certified to UL 60601-1 Edition 3.1 and IEC 60601-1-2 4th Edition, this monitor features a hygienic, bezel-less ABS enclosure that simplifies cleaning, boosts infection control, and provides superior durability in clinical settings.
With fanless architecture and auto-restart after power loss, the MMZBTP-15.6G-XG delivers seamless operation for hospital operating rooms, medical carts, and imaging systems. Its wide viewing angle, high brightness, and fast response time ensure razor-sharp images for accurate, timely decisions by medical professionals, while dual rear speakers and advanced connectivity facilitate reliable integration into automated workflows.
Features:
- 15.6” AHVA color LCD with LED backlights
- Full HD (1920 x 1080) resolution, 500 nits brightness
- Projected Capacitive touch (10-point multi-touch)
- Easy-clean, zero-bezel white ABS enclosure, rounded corners
- Anti-glare safety glass
- Wide 178° viewing angle (H/V)
- Auto-restart after power loss
- Dual rear speakers; alarm/tone capable
- Compatible with Automation Direct HMI
- Fanless, silent operation
- Medical-grade external power supply included
- IEC and UL medical safety certified
- TAA compliant, 3-year warranty
Applications:
- Surgical Displays
- Imaging Systems
- Medical Carts
- Patient Monitors
- OEM Integration
| Model | MMZBTP-15.6G-XG |
| Panel Type | 15.6" Color AHVA, LED Backlights |
| Touch Screen | Projected Capacitive, 10-Point Multi-Touch |
| Interface | USB |
| Glass | Anti-Glare |
| Resolution | 1920 x 1080 (1080p/60) |
| Viewable Area | 13.55" x 7.62" (344.16 x 193.59 mm) |
| Pixel Pitch | 0.17925 mm |
| Display Colors | 16.2M |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° (H/V) |
| Response Time | 25 ms (Trf) |
| Control | OSD, Pushbuttons Under Front Edge |
| Video Inputs | DVI-D, HDMI, DisplayPort |
| Audio | Dual Rear Speakers |
| Power Requirement | 100–240 VAC, Medical-Grade External Supply |
| Power Consumption | 13.8W |
| Enclosure | Zero-Bezel Front, White ABS Rear |
| IP Rating | Front: IP65, Rear: IP30 |
| Mounting | 100mm x 100mm VESA; Optional Base |
| Operating Temp | -4°F to 158°F (-20°C to 70°C) |
| Humidity | 5–90% RH |
| Shock/Vibration | 50G, 1.5G (10-200 Hz) |
| Certifications | UL 60601-1, IEC 60601-1-2 |
| Dimensions | 15.47" x 9.54" x 1.86" (393 x 242.4 x 47.44 mm) |
| Weight | 5.6 lbs (2.54 kg) |
| Warranty | 3 Years |
